304

DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£10.86 each

List Price – Sign in to view Trade Prices 10.86 GBP

DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£15.66 each

List Price – Sign in to view Trade Prices 15.66 GBP

DN25 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£17.94 each

List Price – Sign in to view Trade Prices 17.94 GBP

DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£28.98 each

List Price – Sign in to view Trade Prices 28.98 GBP

DN40 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 150mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£34.83 each

List Price – Sign in to view Trade Prices 34.83 GBP

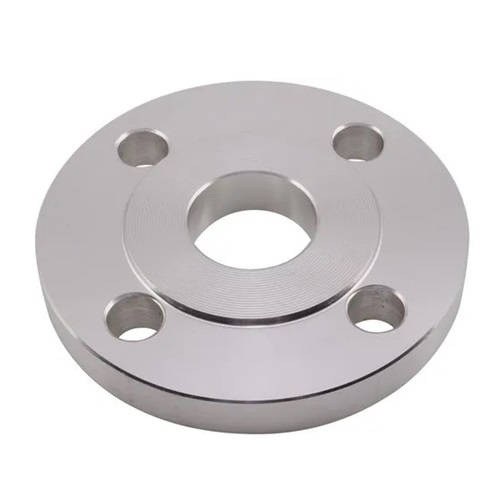

DN50 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£31.95 each

List Price – Sign in to view Trade Prices 31.95 GBP

DN65 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£38.34 each

List Price – Sign in to view Trade Prices 38.34 GBP

DN80 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£40.53 each

List Price – Sign in to view Trade Prices 40.53 GBP

DN100 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 220mm (D)
PCD: 180mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£49.29 each

List Price – Sign in to view Trade Prices 49.29 GBP

DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£66.33 each

List Price – Sign in to view Trade Prices 66.33 GBP

DN150 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£82.41 each

List Price – Sign in to view Trade Prices 82.41 GBP

DN200 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

£151.08 each

List Price – Sign in to view Trade Prices 151.08 GBP

DN250 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 395mm (D)
PCD: 350mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

£190.65 each

List Price – Sign in to view Trade Prices 190.65 GBP

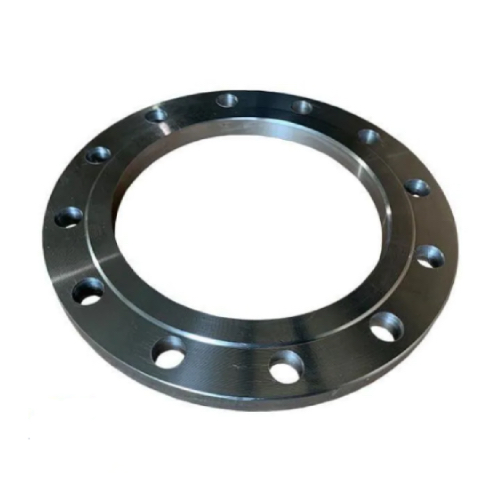

DN300 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

£211.20 each

List Price – Sign in to view Trade Prices 211.2 GBP

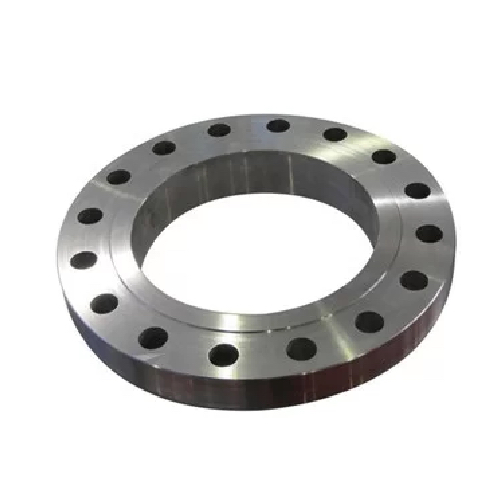

DN350 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 505mm (D)
PCD: 460mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

£361.50 each

List Price – Sign in to view Trade Prices 361.5 GBP

DN400 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 565mm (D)
PCD: 515mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

£454.86 each

List Price – Sign in to view Trade Prices 454.86 GBP

DN450 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 615mm (D)
PCD: 565mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN500 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 670mm (D)
PCD: 620mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN600 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 780mm (D)
PCD: 725mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN700 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 895mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 56mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN800 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 1015mm (D)
PCD: 950mm (K)
Bolt Holes: 24 off 30mm diameter (L)
Flange Thickness: 56mm (C1)
Diameter of Raised Face (RF): 880mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN900 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 922.0mm (B1)
Flange overall diameter: 1115mm (D)
PCD: 1050mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 62mm (C1)
Diameter of Raised Face (RF): 980mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN1000 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1230mm (D)
PCD: 1160mm (K)
Bolt Holes: 28 off 36mm diameter (L)
Flange Thickness: 70mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN1200 PN10 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1455mm (D)
PCD: 1380mm (K)
Bolt Holes: 32 off 36mm diameter (L)
Flange Thickness: 83mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP
