ASA300

List 600
Sort By: Name (A-Z)

ASA300

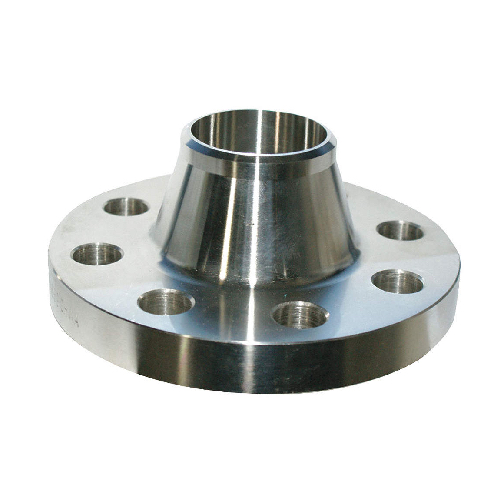

DN15 (1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
Contact us for pricing 0.0 GBP
DN15 (1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
£ 53.97 53.97 GBP
DN15 (1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
Contact us for pricing 0.0 GBP
DN15 (1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
£ 53.48 53.48 GBP
DN15 (1/2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
Contact us for pricing 0.0 GBP
DN15 (1/2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Hub height (X): 38.1mm
Length through hub (A): 21.3mm
Bolt circle diameter (K): 66.5mm
Overall height (Y): 52.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 35.0mm
Number of bolt holes: 4
Bolt hole diameter: 15.7mm
Approx. weight: 0.9kg
Contact us for pricing 0.0 GBP
DN20 (3/4 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg
Contact us for pricing 0.0 GBP
DN20 (3/4 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg
£ 129.15 129.15 GBP
DN20 (3/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg
Contact us for pricing 0.0 GBP
DN20 (3/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg
£ 131.11 131.11 GBP
DN20 (3/4 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg
Contact us for pricing 0.0 GBP
DN20 (3/4 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Hub height (X): 47.7mm
Length through hub (A): 26.6mm
Bolt circle diameter (K): 82.5mm
Overall height (Y): 57.1mm
Raised face thickness (RF): 1.5mm
Bore (B): 42.9mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.5kg
Contact us for pricing 0.0 GBP
DN25 (1 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg
Contact us for pricing 0.0 GBP
DN25 (1 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg
£ 148.47 148.47 GBP
DN25 (1 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg
Contact us for pricing 0.0 GBP
DN25 (1 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg
£ 108.92 108.92 GBP
DN25 (1 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg
Contact us for pricing 0.0 GBP
DN25 (1 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Hub height (X): 53.8mm
Length through hub (A): 33.5mm
Bolt circle diameter (K): 88.9mm
Overall height (Y): 61.9mm
Raised face thickness (RF): 1.5mm
Bore (B): 50.8mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 1.9kg
Contact us for pricing 0.0 GBP
DN32 (1"1/4 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg
Contact us for pricing 0.0 GBP
DN32 (1"1/4 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg
£ 187.95 187.95 GBP
DN32 (1"1/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg
Contact us for pricing 0.0 GBP
DN32 (1"1/4 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg
£ 148.05 148.05 GBP
DN32 (1"1/4 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg
Contact us for pricing 0.0 GBP
DN32 (1"1/4 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Hub height (X): 63.5mm
Length through hub (A): 42.1mm
Bolt circle diameter (K): 98.5mm
Overall height (Y): 65.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 63.5mm
Number of bolt holes: 4
Bolt hole diameter: 19.0mm
Approx. weight: 2.6kg
Contact us for pricing 0.0 GBP
DN40 (1"1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg
Contact us for pricing 0.0 GBP
DN40 (1"1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg
£ 269.78 269.78 GBP
DN40 (1"1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg
Contact us for pricing 0.0 GBP
DN40 (1"1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg
£ 197.47 197.47 GBP
DN40 (1"1/2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg
Contact us for pricing 0.0 GBP
DN40 (1"1/2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg
Contact us for pricing 0.0 GBP
DN50 (2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg
Contact us for pricing 0.0 GBP
DN50 (2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg
£ 312.06 312.06 GBP
DN50 (2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg
Contact us for pricing 0.0 GBP
DN50 (2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg
£ 229.25 229.25 GBP
DN50 (2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg
Contact us for pricing 0.0 GBP
DN50 (2 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Hub height (X): 84.0mm
Length through hub (A): 60.4mm
Bolt circle diameter (K): 127.0mm
Overall height (Y): 69.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 8
Bolt hole diameter: 19.0mm
Approx. weight: 4.0kg
Contact us for pricing 0.0 GBP
DN65 (2"1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg
Contact us for pricing 0.0 GBP
DN65 (2"1/2 NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg
£ 294.28 294.28 GBP
DN65 (2"1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg
Contact us for pricing 0.0 GBP
DN65 (2"1/2 NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Hub height (X): 100.0mm
Length through hub (A): 73.1mm
Bolt circle diameter (K): 149.3mm
Overall height (Y): 76.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 127.0mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 5.4kg
£ 338.24 338.24 GBP
