304

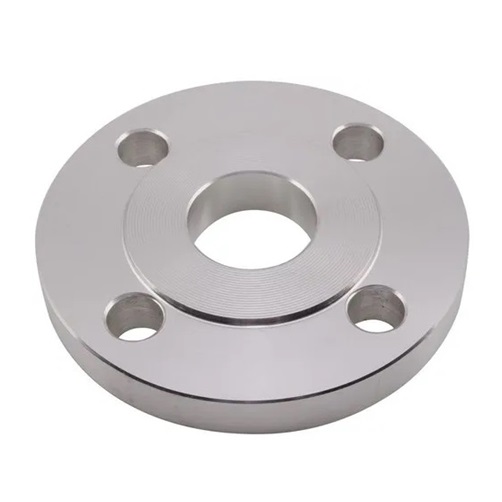

DN15 (1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN20 (3/4" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 52mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN25 (1" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 62mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN32 (1.1/4" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN40 (1.1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 130mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN50 (2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

£18.90 each

List Price – Sign in to view Trade Prices 18.9 GBP

DN65 (2.1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN80 (3" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN100 (4" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 210mm (D)
PCD: 170mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN125 (5" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN150 (6" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN200 (8" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN250 (10" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN300 (12" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN350 (14" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

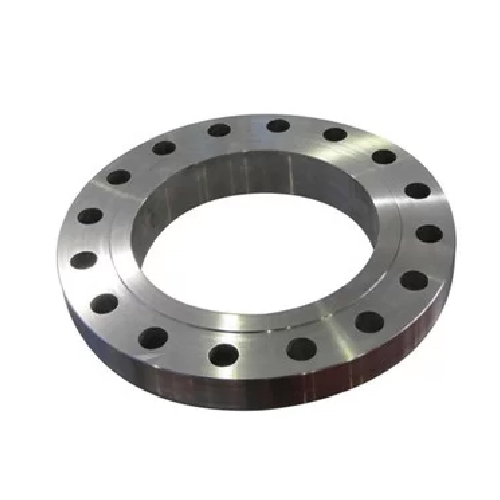

DN400 (16" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 540mm (D)
PCD: 495mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN450 (18" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 595mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN500 (20" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 645mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN600 (24" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN700 (28" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 860mm (D)
PCD: 810mm (K)
Bolt Holes: 24 off 26mm diameter (L)
Flange Thickness: 40mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN800 (32" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 975mm (D)
PCD: 918mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 44mm (C1)
Diameter of Raised Face (RF): 885mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN900 (36" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 922.0mm (B1)
Flange overall diameter: 1075mm (D)
PCD: 1025mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 48mm (C1)
Diameter of Raised Face (RF): 990mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN1000 (40" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 1090mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP

DN1200 (48" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Contact us for pricing 0.0 GBP
