Elbows 90°

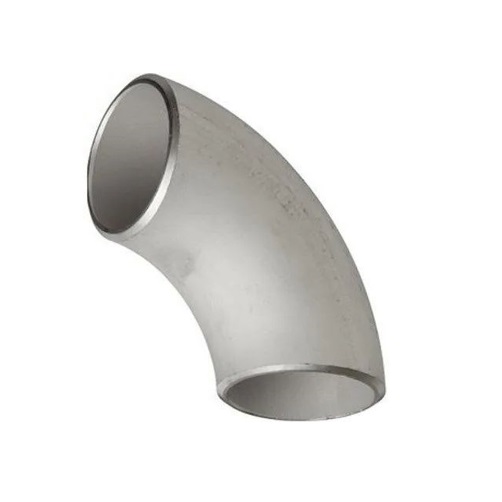

DN15 (½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£12.60 each

List Price – Sign in to view Trade Prices 12.6 GBP

DN20 (¾" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£15.68 each

List Price – Sign in to view Trade Prices 15.68 GBP

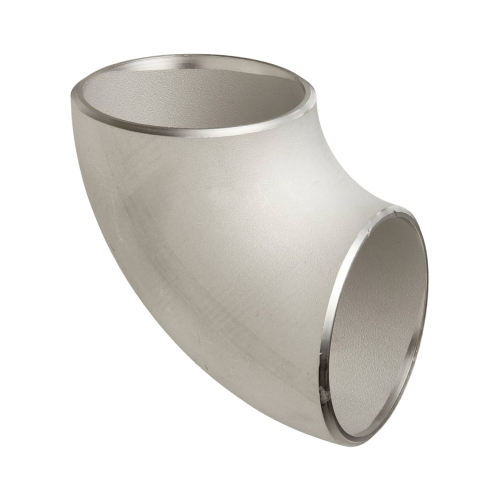

DN20 (¾" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£14.00 each

List Price – Sign in to view Trade Prices 14.0 GBP

DN25 (1" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£17.92 each

List Price – Sign in to view Trade Prices 17.92 GBP

DN25 (1" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 25.4mm
Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£15.47 each

List Price – Sign in to view Trade Prices 15.47 GBP

DN25 (1" NB) SCHEDULE 40s WELDED ELBOW 90° SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.91mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£35.14 each

List Price – Sign in to view Trade Prices 35.14 GBP

DN32 (1¼" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 47.6mm
Schedule: A403 Welded
Weight: 0.28kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£25.76 each

List Price – Sign in to view Trade Prices 25.76 GBP

DN32 (1¼" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 31.75mm
Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£23.94 each

List Price – Sign in to view Trade Prices 23.94 GBP

DN40 (1.1/2" NB) SCHEDULE 40s WELDED ELBOW 90° SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness (WT): 3.68mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9, Schedule 40s
Radius Centre to Face: 57.1mm
Angle: 90 Degree
Ends: Buttweld
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Long Rad, 90s

£29.40 each

List Price – Sign in to view Trade Prices 29.4 GBP

DN40 (1½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 57.1mm
Schedule: A403 Welded
Weight: 0.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£30.10 each

List Price – Sign in to view Trade Prices 30.1 GBP

DN40 (1½" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£26.46 each

List Price – Sign in to view Trade Prices 26.46 GBP

DN50 (2" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 0.72kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£49.63 each

List Price – Sign in to view Trade Prices 49.63 GBP

DN50 (2" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 50.8mm
Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£37.87 each

List Price – Sign in to view Trade Prices 37.87 GBP

DN65 (2½" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 95.2mm
Schedule: A403 Welded
Weight: 1.46kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£93.45 each

List Price – Sign in to view Trade Prices 93.45 GBP

DN65 (2½" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 63.5mm
Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£81.34 each

List Price – Sign in to view Trade Prices 81.34 GBP

DN80 (3" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£121.10 each

List Price – Sign in to view Trade Prices 121.1 GBP

DN80 (3" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£106.96 each

List Price – Sign in to view Trade Prices 106.96 GBP

DN100 (4" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 4.2kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£263.90 each

List Price – Sign in to view Trade Prices 263.9 GBP

DN100 (4" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to Face: 101.6mm
Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£185.15 each

List Price – Sign in to view Trade Prices 185.15 GBP

DN125 (5" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 190.0mm
Schedule: A403 Welded
Weight: 6.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£520.94 each

List Price – Sign in to view Trade Prices 520.94 GBP

DN125 (5" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 127.0mm
Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£360.85 each

List Price – Sign in to view Trade Prices 360.85 GBP

DN150 (6" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£712.46 each

List Price – Sign in to view Trade Prices 712.46 GBP

DN150 (6" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£486.99 each

List Price – Sign in to view Trade Prices 486.99 GBP

DN200 (8" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£1479.94 each

List Price – Sign in to view Trade Prices 1479.94 GBP

DN200 (8" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£1129.87 each

List Price – Sign in to view Trade Prices 1129.87 GBP

DN250 (10" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 381.0mm
Schedule: A403 Welded
Weight: 36.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£3641.54 each

List Price – Sign in to view Trade Prices 3641.54 GBP

DN250 (10" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 254.0mm
Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£1937.32 each

List Price – Sign in to view Trade Prices 1937.32 GBP
