PN16

Website List 200 (IGF)
Sort By: Name (A-Z)

PN16

DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 14.48 14.48 GBP Available to Order Enquire
DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 21.28 21.28 GBP Available to Order Enquire
DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 20.88 20.88 GBP Available to Order Enquire
DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 27.92 27.92 GBP In Stock
DN25 (1" NB) PN16 RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Flange Thickness: 16mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£ 20.00 20.0 GBP Limited Stock
DN25 (1" NB) PN16 RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Flange Thickness: 16mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£ 46.80 46.8 GBP Available to Order Enquire
DN25 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 23.92 23.92 GBP Available to Order Enquire
DN25 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 26.84 26.84 GBP Available to Order Enquire
DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 38.64 38.64 GBP Available to Order Enquire
DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 58.40 58.4 GBP Available to Order Enquire
DN40 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 150mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 32.28 32.28 GBP Available to Order Enquire
DN40 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 150mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 65.20 65.2 GBP Available to Order Enquire
DN50 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 42.60 42.6 GBP Available to Order Enquire
DN50 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 65.04 65.04 GBP Available to Order Enquire
DN50 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 73/76.2mm
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
£ 51.12 51.12 GBP Available to Order Enquire
DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 73/76.2mm
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
£ 56.12 56.12 GBP Available to Order Enquire
DN65 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 52.28 52.28 GBP Limited Stock
DN65 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 74.44 74.44 GBP Available to Order Enquire
DN80 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 54.04 54.04 GBP Available to Order Enquire
DN80 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 77.16 77.16 GBP Available to Order Enquire
DN100 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 220mm (D)
PCD: 180mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 65.72 65.72 GBP Available to Order Enquire
DN100 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 220mm (D)
PCD: 180mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 99.12 99.12 GBP Limited Stock
DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 88.44 88.44 GBP Available to Order Enquire
DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 123.56 123.56 GBP Available to Order Enquire
DN150 (6" NB) (168.3mm) PN16 RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 24mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£ 98.12 98.12 GBP Available to Order Enquire
DN150 (6" NB) (168.3mm) PN16 RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 24mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£ 165.40 165.4 GBP Available to Order Enquire
DN150 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 109.88 109.88 GBP Available to Order Enquire
DN150 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 165.40 165.4 GBP Limited Stock
DN200 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 149.56 149.56 GBP Available to Order Enquire
DN200 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 233.04 233.04 GBP Available to Order Enquire
DN250 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 405mm (D)
PCD: 355mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 29mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 232.00 232.0 GBP Available to Order Enquire

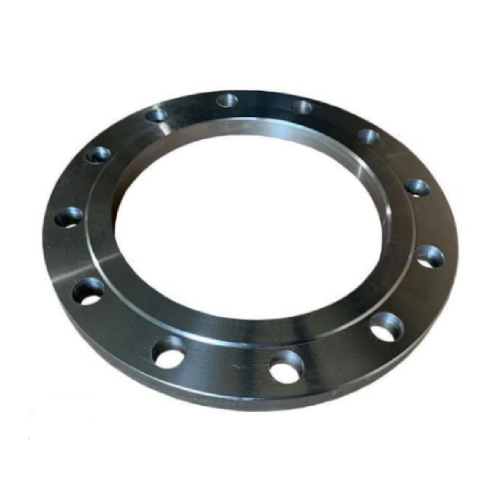

DN250 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 405mm (D)
PCD: 355mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 29mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 348.96 348.96 GBP Available to Order Enquire
DN300 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 341.60 341.6 GBP Available to Order Enquire
DN300 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 488.40 488.4 GBP Available to Order Enquire
DN350 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 520mm (D)
PCD: 470mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 563.16 563.16 GBP Available to Order Enquire
DN350 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 520mm (D)
PCD: 470mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 789.32 789.32 GBP Available to Order Enquire
DN400 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 580mm (D)
PCD: 525mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 706.16 706.16 GBP Available to Order Enquire

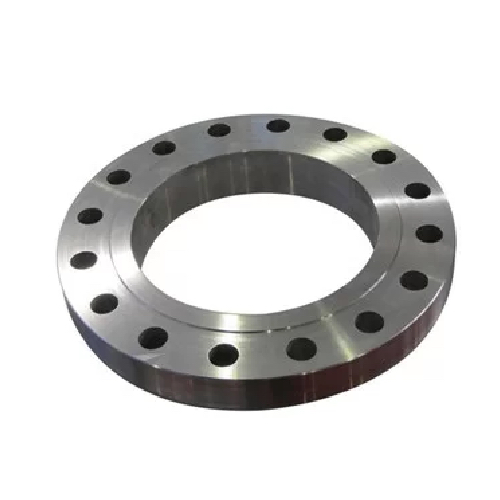

DN400 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 580mm (D)
PCD: 525mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 925.52 925.52 GBP Available to Order Enquire
DN450 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 640mm (D)
PCD: 585mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 849.12 849.12 GBP Available to Order Enquire
DN450 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 640mm (D)
PCD: 585mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 1,237.92 1237.92 GBP Available to Order Enquire
DN500 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 715mm (D)
PCD: 650mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 1,225.04 1225.04 GBP Available to Order Enquire
DN500 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 715mm (D)
PCD: 650mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 1,710.80 1710.8 GBP Available to Order Enquire
DN600 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 840mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 55mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN600 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 840mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 55mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 2,642.20 2642.2 GBP Available to Order Enquire
DN700 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 910mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 36mm diameter (L)
Flange Thickness: 63mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN700 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 910mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 36mm diameter (L)
Flange Thickness: 63mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN800 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 1025mm (D)
PCD: 950mm (K)
Bolt Holes: 24 off 39mm diameter (L)
Flange Thickness: 74mm (C1)
Diameter of Raised Face (RF): 880mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN800 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 1025mm (D)
PCD: 950mm (K)
Bolt Holes: 24 off 39mm diameter (L)
Flange Thickness: 74mm (C1)
Diameter of Raised Face (RF): 880mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN900 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 922.0mm (B1)
Flange overall diameter: 1125mm (D)
PCD: 1050mm (K)
Bolt Holes: 24 off 39mm diameter (L)
Flange Thickness: 82mm (C1)
Diameter of Raised Face (RF): 980mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN900 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 922.0mm (B1)
Flange overall diameter: 1125mm (D)
PCD: 1050mm (K)
Bolt Holes: 24 off 39mm diameter (L)
Flange Thickness: 82mm (C1)
Diameter of Raised Face (RF): 980mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN1000 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1255mm (D)
PCD: 1170mm (K)
Bolt Holes: 28 off 42mm diameter (L)
Flange Thickness: 90mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN1000 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1255mm (D)
PCD: 1170mm (K)
Bolt Holes: 28 off 42mm diameter (L)
Flange Thickness: 90mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN1200 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1485mm (D)
PCD: 1390mm (K)
Bolt Holes: 32 off 48mm diameter (L)
Flange Thickness: 98mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN1200 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1485mm (D)
PCD: 1390mm (K)
Bolt Holes: 32 off 48mm diameter (L)
Flange Thickness: 98mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
Click on "Edit" in the right panel to replace this with your own HTML code
