Elbows 90°

DN15 (½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£7.70 each

List Price – Sign in to view Trade Prices 7.7 GBP

DN20 (¾" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: A403 Welded
Weight: 0.08kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£11.27 each

List Price – Sign in to view Trade Prices 11.27 GBP

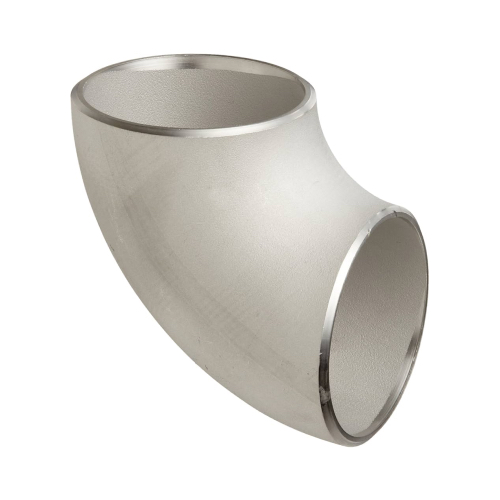

DN20 (¾" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£12.46 each

List Price – Sign in to view Trade Prices 12.46 GBP

DN25 (1" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 33.4mm
Wall Thickness: 2.77mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£12.74 each

List Price – Sign in to view Trade Prices 12.74 GBP

DN25 (1" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 33.4mm
Wall Thickness: 2.77mm
Centre to Face: 25.4mm
Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£18.69 each

List Price – Sign in to view Trade Prices 18.69 GBP

DN25 (1" NB) SCHEDULE 10s WELDED ELBOW 90° SS 304

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 2.77mm
Material: Stainless
Grade: 304
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£15.82 each

List Price – Sign in to view Trade Prices 15.82 GBP

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 42.2mm
Wall Thickness: 2.77mm
Centre to Face: 47.6mm
Schedule: A403 Welded
Weight: 0.28kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£16.10 each

List Price – Sign in to view Trade Prices 16.1 GBP

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 42.2mm
Wall Thickness: 2.77mm
Centre to Face: 31.75mm
Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£13.79 each

List Price – Sign in to view Trade Prices 13.79 GBP

DN40 (1½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 48.3mm
Wall Thickness: 2.77mm
Centre to Face: 57.1mm
Schedule: A403 Welded
Weight: 0.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£19.95 each

List Price – Sign in to view Trade Prices 19.95 GBP

DN40 (1½" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 48.3mm
Wall Thickness: 2.77mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£17.99 each

List Price – Sign in to view Trade Prices 17.99 GBP

DN50 (2" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 60.3mm
Wall Thickness: 2.77mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 0.72kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£24.99 each

List Price – Sign in to view Trade Prices 24.99 GBP

DN50 (2" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 60.3mm
Wall Thickness: 2.77mm
Centre to Face: 50.8mm
Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£19.67 each

List Price – Sign in to view Trade Prices 19.67 GBP

DN65 (2½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 73.0mm
Wall Thickness: 3.05mm
Centre to Face: 95.2mm
Schedule: A403 Welded
Weight: 1.46kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£38.92 each

List Price – Sign in to view Trade Prices 38.92 GBP

DN65 (2½" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 73.0mm
Wall Thickness: 3.05mm
Centre to Face: 63.5mm
Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£30.17 each

List Price – Sign in to view Trade Prices 30.17 GBP

DN80 (3" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 114.3mm
Schedule: A403 Welded
Weight: 2.18kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£54.95 each

List Price – Sign in to view Trade Prices 54.95 GBP

DN80 (3" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm
Centre to Face: 76.2mm
Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£43.68 each

List Price – Sign in to view Trade Prices 43.68 GBP

DN100 (4" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 114.3mm
Wall Thickness: 3.05mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 4.2kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£93.94 each

List Price – Sign in to view Trade Prices 93.94 GBP

DN100 (4" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 114.3mm
Wall Thickness: 3.05mm
Centre to Face: 101.6mm
Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£71.05 each

List Price – Sign in to view Trade Prices 71.05 GBP

DN125 (5" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm
Centre to Face: 190.0mm
Schedule: A403 Welded
Weight: 6.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£152.46 each

List Price – Sign in to view Trade Prices 152.46 GBP

DN125 (5" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm
Centre to Face: 127.0mm
Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£119.14 each

List Price – Sign in to view Trade Prices 119.14 GBP

DN150 (6" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£215.04 each

List Price – Sign in to view Trade Prices 215.04 GBP

DN150 (6" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£327.04 each

List Price – Sign in to view Trade Prices 327.04 GBP

DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£408.66 each

List Price – Sign in to view Trade Prices 408.66 GBP

DN200 (8" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£303.03 each

List Price – Sign in to view Trade Prices 303.03 GBP

DN250 (10" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 273.9mm
Wall Thickness: 4.19mm
Centre to Face: 381.0mm
Schedule: A403 Welded
Weight: 36.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£1059.10 each

List Price – Sign in to view Trade Prices 1059.1 GBP

DN250 (10" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304

Outside Diameter (OD): 273.9mm
Wall Thickness: 4.19mm
Centre to Face: 254.0mm
Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£1217.44 each

List Price – Sign in to view Trade Prices 1217.44 GBP
