Backing Flanges

DN25 (1" NB) PN16 CHAMF. FF BACKING RING BORED 45 mm ID 10mm THK BZP (4 HOLE)
Suits an outside diameter (OD) of: 41mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Flange Thickness: 10mm
£ 7.72 7.72 GBP

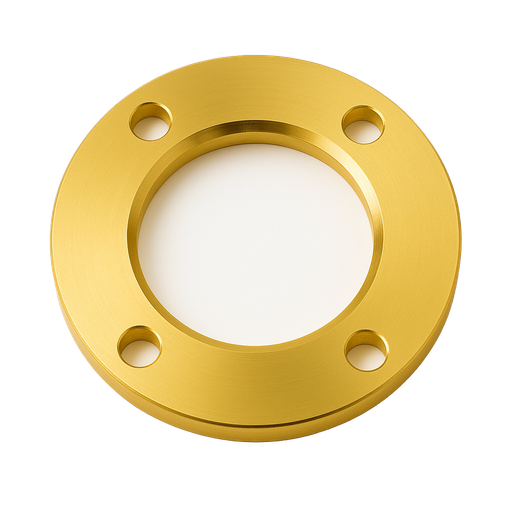

DN50 (2" NB) PN16 CHAMF. FF BACKING RING BORED 55mm ID 10mm THK BZP (4 HOLE)
Suits an outside diameter (OD) of: 54mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 4 off to suit M16 Bolts
PCD: 125mm
Flange Diameter: 165mm
Flange Thickness: 10mm
£ 11.72 11.72 GBP
DN65 (2.1/2" NB) PN16 CHAMF. FF BACKING RING BORED 71mm ID 10mm THK BZP (4 HOLE)
Suits an outside diameter (OD) of: 69mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 4 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 10mm
£ 24.40 24.4 GBP

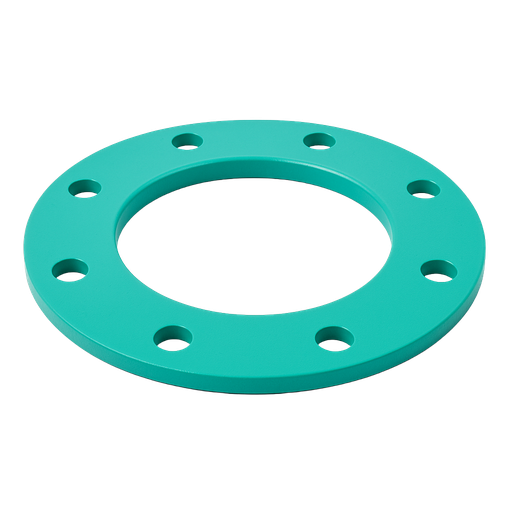

DN65 (2.1/2" NB) PN16 CHAMF. FF BACKING RING BORED 72mm ID 10mm THK SCOTCH COATED (8 HOLE)
Suits an outside diameter (OD) of: 70mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 10mm
£ 20.72 20.72 GBP
DN80 (3" NB) PN16 CHAMF. FF BACKING RING BORED 88mm ID 10mm THK BZP
Suits an outside diameter (OD) of: 85mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 160mm
Flange Diameter: 200mm
Flange Thickness: 10mm
£ 24.20 24.2 GBP

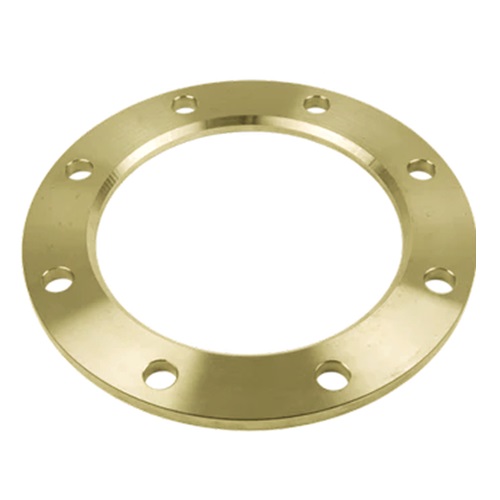

DN100 (4" NB) PN16 CHAMF. FF BACKING RING BORED 106mm ID 10mm THK BZP
Suits an outside diameter (OD) of: 104mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 180mm
Flange Diameter: 220mm
Flange Thickness: 10mm
£ 20.00 20.0 GBP

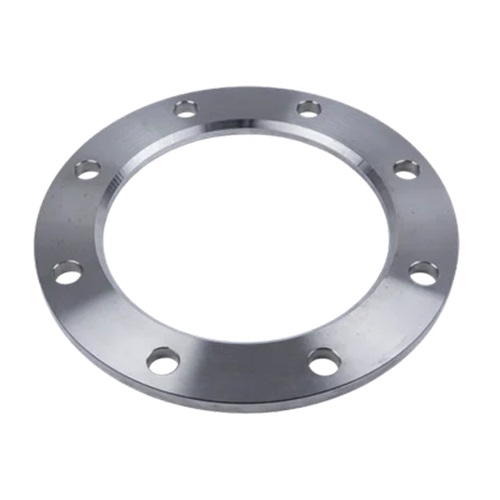

DN100 (4" NB) PN16 CHAMF. FF BACKING RING BORED 106mm ID 12.7mm THK SS 304
Suits an outside diameter (OD) of: 104mm
Material: SS
Grade: 304
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 180mm
Flange Diameter: 220mm
Flange Thickness: 12.7mm
£ 99.00 99.0 GBP
DN125 (5" NB) PN16 CHAMF. FF BACKING RING BORED 139.7mm ID 10mm THK BZP
Suits an outside diameter (OD) of: 139.7mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 8 off to suit M16 Bolts
PCD: 210mm
Flange Diameter: 250mm
Flange Thickness: 10mm
£ 33.52 33.52 GBP

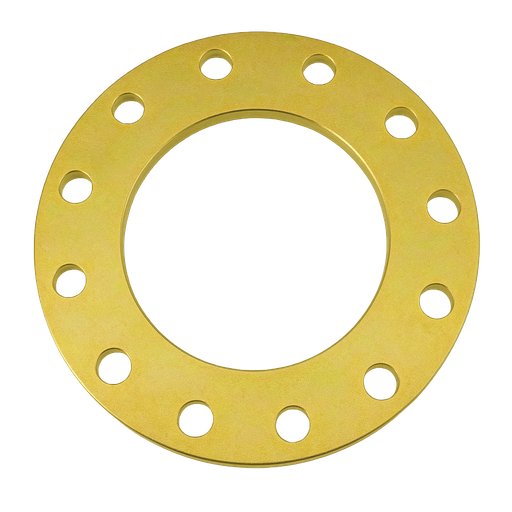

DN200 (8" NB) PN16 CHAMF. FF BACKING RING BORED 205mm ID 10mm THK BZP
Suits an outside diameter (OD) of: 204mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 12 off to suit M20 Bolts
PCD: 295mm
Flange Diameter: 340mm
Flange Thickness: 10mm
£ 62.68 62.68 GBP
