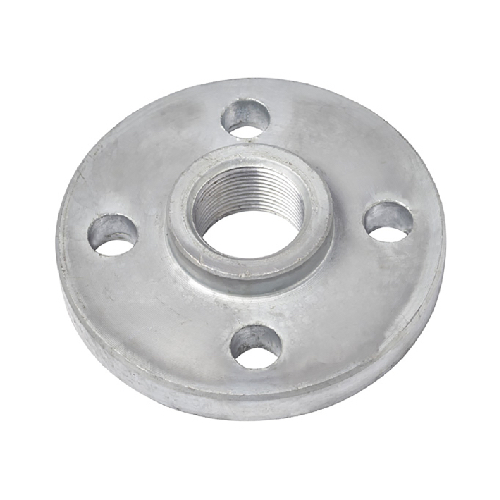

Galvanised

Flange outside diameter: 90mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 60mm (K)
Flange hub height: 22mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 95mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 22mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 105mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 26mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 115mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 85mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 140mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 100mm (K)
Flange hub height: 30mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1 1/4"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 150mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 110mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 1 1/2"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range
