ASA300

DN15 (1/2" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN20 (3/4" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN25 (1" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

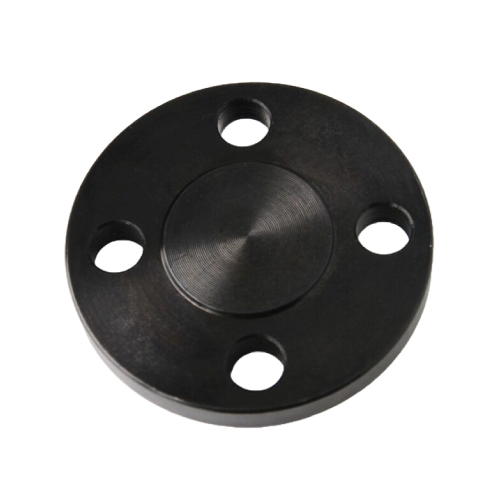

DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

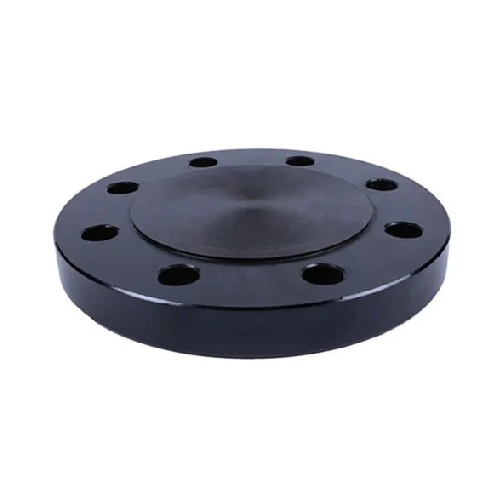

DN50 (2" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 127.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN80 (3" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN100 (4" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 200.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN125 (5" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

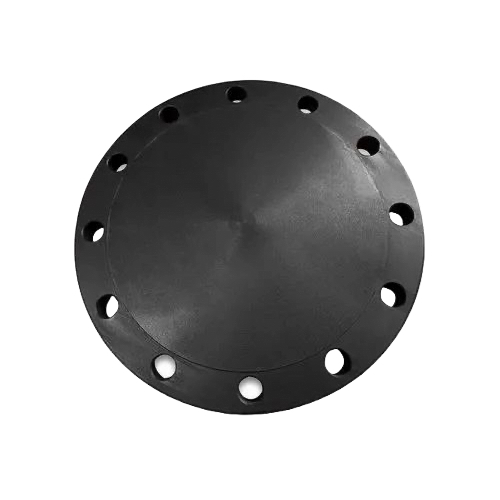

DN150 (6" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN200 (8" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN250 (10" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

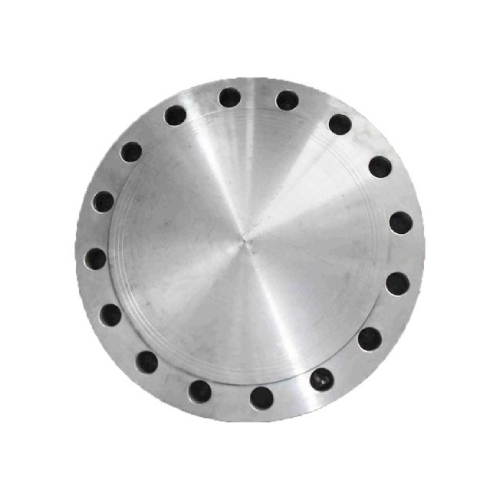

DN300 (12" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Pitch circle diameter (K): 450.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN350 (14" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN400 (16" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 647.7mm
Flange thickness (C): 57.1mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN450 (18" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Pitch circle diameter (K): 628.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

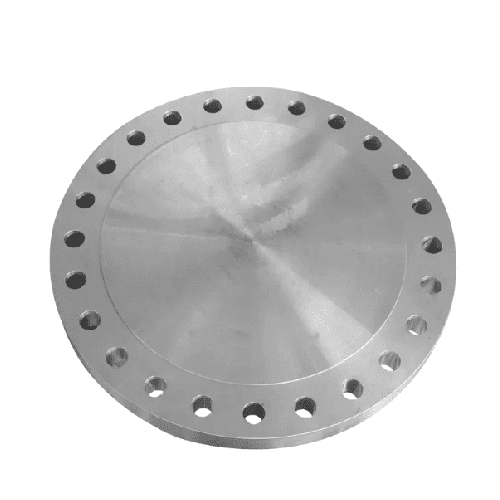

DN500 (20" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Pitch circle diameter (K): 685.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP

DN600 (24" NB) ASA300 RF BLIND FLANGE CS A105N

Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Contact us for pricing 0.0 GBP
