316

DN15 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 41.23 41.23 GBP

DN20 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 64.89 64.89 GBP

DN25 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 115mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 85mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 74.76 74.76 GBP

DN32 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 140mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 100mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 105.77 105.77 GBP

DN40 PN10 / PN16 / PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 150mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 110mm
Flange thickness (C4): 18mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 109.90 109.9 GBP

DN50 PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 165mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C4): 20mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 147.63 147.63 GBP

DN65 PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 185mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C4): 22mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 216.02 216.02 GBP

DN80 PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 200mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C4): 24mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 229.88 229.88 GBP

DN100 PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 235mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 190mm
Flange thickness (C4): 24mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 389.13 389.13 GBP

DN125 PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 270mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 220mm
Flange thickness (C4): 26mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 544.88 544.88 GBP

DN150 PN25 / PN40 RF BLIND FLANGE SS 316

Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

£ 726.04 726.04 GBP

DN200 (8" NB) PN25 RF BLIND FLANGE SS 316

Flange OD (D): 360mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 310mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact us for pricing 0.0 GBP

DN250 (10" NB) PN25 RF BLIND FLANGE SS 316

Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact us for pricing 0.0 GBP

DN300 (12" NB) PN25 RF BLIND FLANGE SS 316

Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact us for pricing 0.0 GBP

DN350 (14" NB) PN25 RF BLIND FLANGE SS 316

Flange OD (D): 555mm
Drilling (No. x Bolt Hole x L): 16 x M30 x 33mm
Pitch circle diameter (K): 490mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact us for pricing 0.0 GBP

DN400 (16" NB) PN25 RF BLIND FLANGE SS 316

Flange OD (D): 620mm
Drilling (No. x Bolt Hole x L): 16 x M33 x 36mm
Pitch circle diameter (K): 550mm
Flange thickness (C1): 48mm
Raised face diameter (D1): 465mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact us for pricing 0.0 GBP

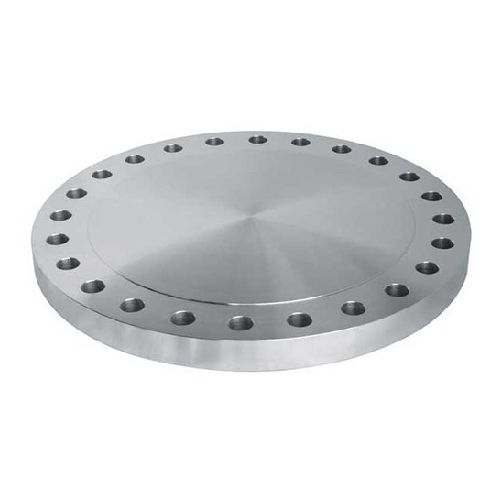

DN450 (18" NB) PN25 RF BLIND FLANGE SS 316

Flange OD (D): 670mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 600mm
Flange thickness (C1): 54mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact us for pricing 0.0 GBP

DN500 (20" NB) PN25 RF BLIND FLANGE SS 316

Flange OD (D): 730mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 660mm
Flange thickness (C1): 58mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact us for pricing 0.0 GBP

DN600 (24" NB) PN25 RF BLIND FLANGE SS 316

Flange OD (D): 845mm
Drilling (No. x Bolt Hole x L): 20 x M36 x 39mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 68mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Contact us for pricing 0.0 GBP
