Elbows 45°

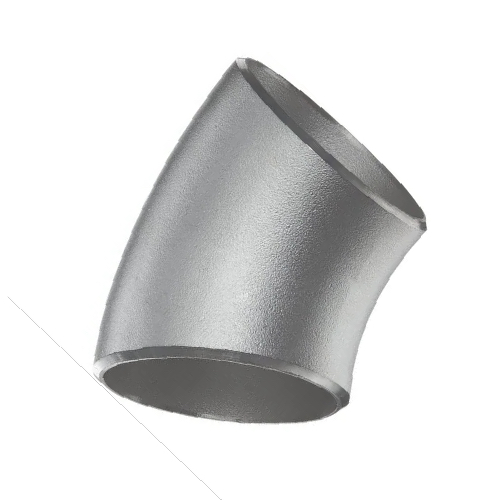

DN20 (¾" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm

Schedule: A403 Welded
Weight: 0.05kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£15.61 each

List Price – Sign in to view Trade Prices 15.61 GBP

DN25 (1" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness: 2.77mm

Schedule: A403 Welded
Weight: 0.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£12.81 each

List Price – Sign in to view Trade Prices 12.81 GBP

DN25 (1" NB) SCHEDULE 10s WELDED ELBOW 45° SS 316

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 2.77mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

£11.55 each

List Price – Sign in to view Trade Prices 11.55 GBP

DN32 (1¼" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 42.2mm
Wall Thickness: 2.77mm

Schedule: A403 Welded
Weight: 0.17kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£18.13 each

List Price – Sign in to view Trade Prices 18.13 GBP

DN40 (1½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 48.3mm
Wall Thickness: 2.77mm

Schedule: A403 Welded
Weight: 0.25kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£40.67 each

List Price – Sign in to view Trade Prices 40.67 GBP

DN50 (2" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 60.3mm
Wall Thickness: 2.77mm

Schedule: A403 Welded
Weight: 0.45kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£28.42 each

List Price – Sign in to view Trade Prices 28.42 GBP

DN65 (2½" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 73.0mm
Wall Thickness: 3.05mm

Schedule: A403 Welded
Weight: 0.87kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£46.76 each

List Price – Sign in to view Trade Prices 46.76 GBP

DN80 (3" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 88.9mm
Wall Thickness: 3.05mm

Schedule: A403 Welded
Weight: 1.38kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£64.82 each

List Price – Sign in to view Trade Prices 64.82 GBP

DN100 (4" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 114.3mm
Wall Thickness: 3.05mm

Schedule: A403 Welded
Weight: 2.62kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£92.40 each

List Price – Sign in to view Trade Prices 92.4 GBP

DN125 (5" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm

Schedule: A403 Welded
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£180.46 each

List Price – Sign in to view Trade Prices 180.46 GBP

DN150 (6" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£245.21 each

List Price – Sign in to view Trade Prices 245.21 GBP

DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm

Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£458.08 each

List Price – Sign in to view Trade Prices 458.08 GBP

DN250 (10" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316

Outside Diameter (OD): 273.9mm
Wall Thickness: 4.19mm

Schedule: A403 Welded
Weight: 18.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£1043.70 each

List Price – Sign in to view Trade Prices 1043.7 GBP
