Gate Valves

Suits an outside diameter (OD) of: 13.72mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 13.72mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 17.15mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 17.15mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 21.3mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 21.3mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 26.9mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 26.9mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 33.4mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 33.4mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 42.4mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 42.4mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 48.3mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 48.3mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

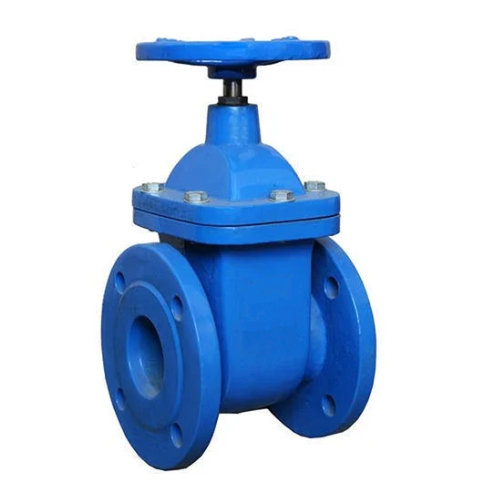

Flanged to suit: 1.1/2" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 140mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 60.3mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 2" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 150mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 2" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

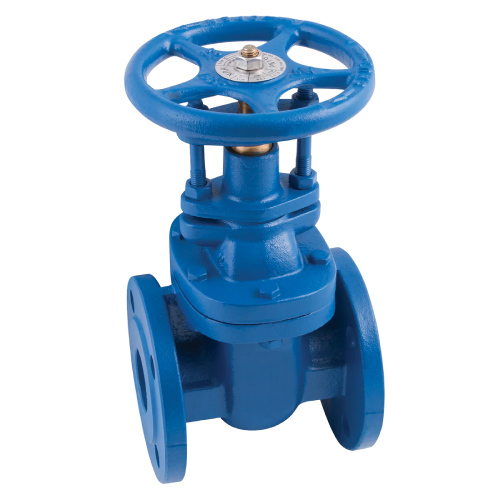

Flanged to suit: 2" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 178mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 2" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 178mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 72.2mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 2.1/2" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 170mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 2.1/2" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 2.1/2" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 191mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

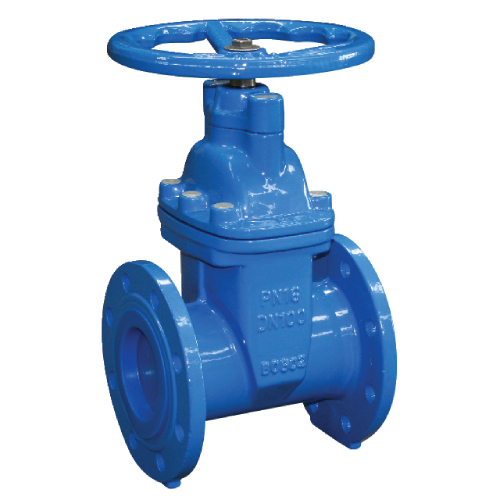

Flanged to suit: 2.1/2" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 191mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 88.9mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: BSPT Threaded
Handwheel Type: Cast
Approvals: WRAS Approved
Temperature Range: -20°C to +110°C (up to 85°C for WRAS applications)
Pressure Rating: PN20

Alternative terminology: Threaded Gate Valve, BSPT Valve, WRAS Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 88.9mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 3" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 180mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 3" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 3" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 203mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 3" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 203mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 114.3mm
Valve Type: Gate Valve
Body & Bonnet Material: Brass
Connection Type: NPT Threaded
Handwheel Type: Cast

Temperature Range: -20°C to +110°C (up to 85°C for applications)
Pressure Rating: Class 150

Alternative terminology: Threaded Gate Valve, NPT Valve, Gate Valve, Isolation Valve, Shut-Off Valve, Brass Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 4" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 190mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 4" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 4" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 229mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 4" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 229mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 5" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 200mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 5" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 254mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 5" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 254mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 6" PN16
Body Material: Cast Iron
Seat Material: Metal Seat
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 267mm (BS5150)
Temperature Range: -10°C to +200°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 6" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 210mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 6" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 6" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 267mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 6" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 267mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 8" PN10
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 230mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 8" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 230mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 8" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 8" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 292mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 8" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 292mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 10" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 250mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 10" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 10" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 330mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 10" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 330mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 12" PN16
Body Material: Cast Iron
Seat Material: Cast Brass
Stem Material: Stainless Steel
Flange Drilling: PN16 (8” also available PN10)
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face: 270mm (DIN 3202 F4)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Isolation Valve, Shut-Off Valve, Wedge Gate Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 12" PN16
Body Material: Epoxy Coated Ductile Iron
Wedge Type: Double Seated NBR Encapsulated
Closure Direction: Clockwise Closing
Flange Drilling: PN16
Approvals: GIS/V7-1:2007, EN 13774
Temperature Range: -20°C to +60°C
Maximum Working Pressure: 7 Bar

Alternative terminology: NBR Gate Valve, Resilient Seated Gate Valve, Ductile Iron Gate, Shut-Off Valve, Manual Gate Valve, Clockwise Close

Part of our Isolation and Valves Range

Flanged to suit: 12" PN16
Body Material: Ductile Iron
Trim Material: Bronze
Flange Drilling: PN16
Stem Type: Inside Screw, Non-Rising Stem
Face-to-Face Standard: 356mm BS 5150 (EN 1171)
Temperature Range: -10°C to +120°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, Bronze Trim Gate, Isolation Valve, Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range

Flanged to suit: 12" PN16
Body Material: Epoxy Coated Ductile Iron
Trim Material: EPDM Coated Resilient Seat
Flange Drilling: PN16
Operation: Manual Handwheel (Clockwise Closing)
Face-to-Face Standard: 356mm BS 5150 (EN 1171)
Temperature Range: -10°C to +70°C
Pressure Rating: PN16

Alternative terminology: Flanged Gate Valve, EPDM Coated Resilient Seat Trim Gate, Isolation Valve, WRAS Approved Shut-Off Valve, Manual Gate Valve

Part of our Isolation and Valves Range
