PN25

Flange outside diameter: 95mm (D)
Flange inside diameter: 22.0mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 65mm (K)
Hub height: 22mm (H1)
Neck diameter: 35mm (N2)
Raised Face Diameter: 45mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 105mm (D)
Flange inside diameter: 27.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 75mm (K)
Hub height: 26mm (H1)
Neck diameter: 45mm (N2)
Raised Face Diameter: 58mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 115mm (D)
Flange inside diameter: 34.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 85mm (K)
Hub height: 28mm (H1)
Neck diameter: 52mm (N2)
Raised Face Diameter: 68mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 140mm (D)
Flange inside diameter: 43.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 100mm (K)
Hub height: 30mm (H1)
Neck diameter: 60mm (N2)
Raised Face Diameter: 78mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 150mm (D)
Flange inside diameter: 49.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 110mm (K)
Hub height: 32mm (H1)
Neck diameter: 70mm (N2)
Raised Face Diameter: 88mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 165mm (D)
Flange inside diameter: 61.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 125mm (K)
Hub height: 34mm (H1)
Neck diameter: 84mm (N2)
Raised Face Diameter: 102mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

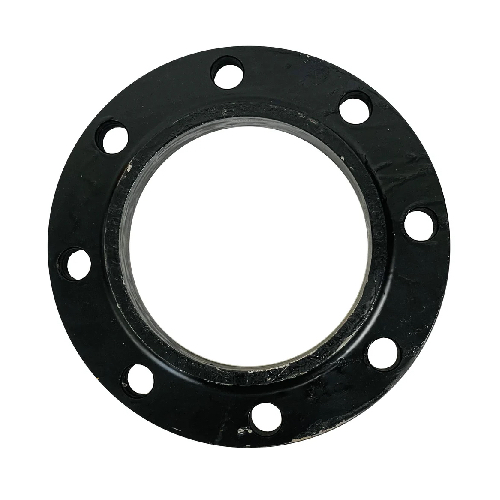

Flange outside diameter: 185mm (D)
Flange inside diameter: 77.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 145mm (K)
Hub height: 38mm (H1)
Neck diameter: 104mm (N2)
Raised Face Diameter: 122mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 200mm (D)
Flange inside diameter: 90.5mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 160mm (K)
Hub height: 40mm (H1)
Neck diameter: 118mm (N2)
Raised Face Diameter: 138mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

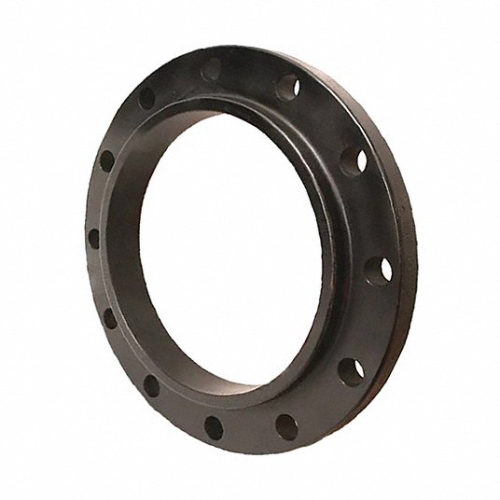

Flange outside diameter: 235mm (D)
Flange inside diameter: 116.0mm (B1)
Flange thickness (C2): 24mm
Pitch Circle Diameter (PCD): 190mm (K)
Hub height: 44mm (H1)
Neck diameter: 145mm (N2)
Raised Face Diameter: 162mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 270mm (D)
Flange inside diameter: 141.5mm (B1)
Flange thickness (C2): 26mm
Pitch Circle Diameter (PCD): 220mm (K)
Hub height: 48mm (H1)
Neck diameter: 170mm (N2)
Raised Face Diameter: 188mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 300mm (D)
Flange inside diameter: 170.5mm (B1)
Flange thickness (C2): 28mm
Pitch Circle Diameter (PCD): 250mm (K)
Hub height: 52mm (H1)
Neck diameter: 200mm (N2)
Raised Face Diameter: 218mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 360mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 30mm
Pitch Circle Diameter (PCD): 310mm (K)
Hub height: 52mm (H1)
Neck diameter: 256mm (N2)
Raised Face Diameter: 278mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 26mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 425mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 32mm
Pitch Circle Diameter (PCD): 370mm (K)
Hub height: 60mm (H1)
Neck diameter: 310mm (N2)
Raised Face Diameter: 335mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 12 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 485mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 34mm
Pitch Circle Diameter (PCD): 430mm (K)
Hub height: 67mm (H1)
Neck diameter: 364mm (N2)
Raised Face Diameter: 395mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 30mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

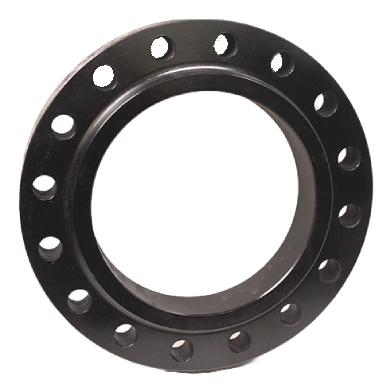

Flange outside diameter: 555mm (D)
Flange inside diameter: 359.0mm (B1)
Flange thickness (C2): 38mm
Pitch Circle Diameter (PCD): 490mm (K)
Hub height: 72mm (H1)
Neck diameter: 418mm (N2)
Raised Face Diameter: 450mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 33mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 620mm (D)
Flange inside diameter: 411.0mm (B1)
Flange thickness (C2): 40mm
Pitch Circle Diameter (PCD): 550mm (K)
Hub height: 78mm (H1)
Neck diameter: 472mm (N2)
Raised Face Diameter: 505mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 16 off 36mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 670mm (D)
Flange inside diameter: 462.0mm (B1)
Flange thickness (C2): 46mm
Pitch Circle Diameter (PCD): 600mm (K)
Hub height: 84mm (H1)
Neck diameter: 520mm (N2)
Raised Face Diameter: 555mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 36mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 730mm (D)
Flange inside diameter: 513.5mm (B1)
Flange thickness (C2): 48mm
Pitch Circle Diameter (PCD): 660mm (K)
Hub height: 90mm (H1)
Neck diameter: 580mm (N2)
Raised Face Diameter: 615mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 20 off 36mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

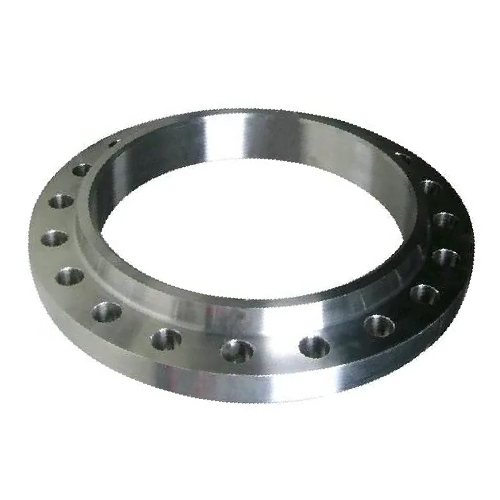

Flange outside diameter: 845mm (D)
Flange inside diameter: 616.5mm (B1)
Flange thickness (C2): 48mm
Pitch Circle Diameter (PCD): 770mm (K)
Hub height: 100mm (H1)
Neck diameter: 684mm (N2)
Raised Face Diameter: 720mm (d1)
Height of Raised Face: 5mm (f1)
Bolt Holes: 20 off 39mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
