Eccentric

Website List 200 (IGF)
Sort By: Name (A-Z)

Eccentric

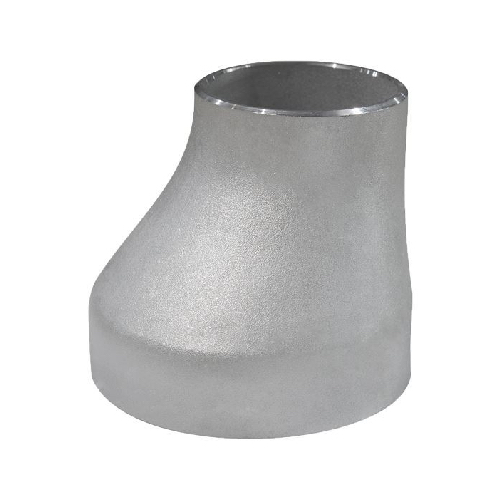

DN20 X DN15 (¾" X ½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm
£ 10.04 10.04 GBP Available to Order Enquire
DN25 X DN15 (1" X ½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 33 X 21mm
Wall Thickness: 3.38 X 2.77mm
Length: 51mm
£ 15.84 15.84 GBP Available to Order Enquire
DN25 X DN20 (1" X ¾" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 33 X 27mm
Wall Thickness: 3.38 X 2.87mm
Length: 51mm
£ 12.56 12.56 GBP Available to Order Enquire
DN32 X DN15 (1¼" X ½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 21mm
Wall Thickness: 3.56 X 2.77mm
Length: 51mm
£ 27.48 27.48 GBP Available to Order Enquire
DN32 X DN20 (1¼" X ¾" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 27mm
Wall Thickness: 3.56 X 2.87mm
Length: 51mm
£ 23.76 23.76 GBP Available to Order Enquire
DN32 X DN25 (1¼" X 1" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: 51mm
£ 18.88 18.88 GBP Available to Order Enquire
DN40 X DN15 (1½" X ½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 21mm
Wall Thickness: 3.68 X 2.77mm
Length: 64mm
£ 40.72 40.72 GBP Available to Order Enquire
DN40 X DN20 (1½" X ¾" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 27mm
Wall Thickness: 3.68 X 2.87mm
Length: 64mm
£ 34.48 34.48 GBP Available to Order Enquire
DN40 X DN25 (1½" X 1" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 33mm
Wall Thickness: 3.68 X 3.38mm
Length: 64mm
£ 13.84 13.84 GBP Available to Order Enquire
DN40 X DN32 (1½" X 1¼" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 48 X 42mm
Wall Thickness: 3.68 X 3.56mm
Length: 64mm
£ 22.12 22.12 GBP Available to Order Enquire
DN50 X DN20 (2" X ¾" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 27mm
Wall Thickness: 3.91 X 2.87mm
Length: 76mm
£ 35.60 35.6 GBP Available to Order Enquire
DN50 X DN25 (2" X 1" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 33mm
Wall Thickness: 3.91 X 3.38mm
Length: 76mm
£ 20.76 20.76 GBP Available to Order Enquire
DN50 X DN32 (2" X 1¼" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 42mm
Wall Thickness: 3.91 X 3.56mm
Length: 76mm
£ 19.28 19.28 GBP Available to Order Enquire
DN50 X DN40 (2" X 1½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 60 X 48mm
Wall Thickness: 3.91 X 3.68mm
Length: 76mm
£ 37.60 37.6 GBP Available to Order Enquire
DN65 X DN40 (2½" X 1½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 73 X 48mm
Wall Thickness: 5.16 X 3.68mm
Length: 89mm
£ 48.44 48.44 GBP Available to Order Enquire
DN65 X DN50 (2½" X 2" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 73 X 60mm
Wall Thickness: 5.16 X 3.91mm
Length: 89mm
£ 36.68 36.68 GBP Available to Order Enquire
DN80 X DN32 (3" X 1¼" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 89 X 42mm
Wall Thickness: 5.49 X 3.56mm
Length: 89mm
£ 73.60 73.6 GBP Available to Order Enquire
DN80 X DN40 (3" X 1½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 89 X 48mm
Wall Thickness: 5.49 X 3.68mm
Length: 89mm
£ 65.44 65.44 GBP Available to Order Enquire
DN80 X DN50 (3" X 2" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 89 X 60mm
Wall Thickness: 5.49 X 3.91mm
Length: 89mm
£ 40.36 40.36 GBP Available to Order Enquire
DN80 X DN65 (3" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 89 X 73mm
Wall Thickness: 5.49 X 5.16mm
Length: 89mm
£ 47.32 47.32 GBP Available to Order Enquire
DN100 X DN40 (4" X 1½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 114 X 48mm
Wall Thickness: 6.02 X 3.68mm
Length: 102mm
£ 103.88 103.88 GBP Available to Order Enquire
DN100 X DN50 (4" X 2" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 114 X 60mm
Wall Thickness: 6.02 X 3.91mm
Length: 102mm
£ 92.44 92.44 GBP Available to Order Enquire
DN100 X DN65 (4" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 114 X 73mm
Wall Thickness: 6.02 X 5.16mm
Length: 102mm
£ 72.56 72.56 GBP Available to Order Enquire
DN100 X DN80 (4" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 114 X 89mm
Wall Thickness: 6.02 X 5.49mm
Length: 102mm
£ 67.04 67.04 GBP Available to Order Enquire
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
£ 118.56 118.56 GBP Available to Order Enquire
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
£ 190.92 190.92 GBP Available to Order Enquire
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
£ 163.52 163.52 GBP Available to Order Enquire
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
£ 136.44 136.44 GBP Available to Order Enquire
DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
£ 155.40 155.4 GBP Available to Order Enquire
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
£ 169.32 169.32 GBP Available to Order Enquire
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
£ 276.04 276.04 GBP Available to Order Enquire
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
£ 204.72 204.72 GBP Available to Order Enquire
DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
£ 369.24 369.24 GBP Available to Order Enquire
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
£ 307.04 307.04 GBP Available to Order Enquire
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
£ 253.36 253.36 GBP Available to Order Enquire
DN250 X DN150 (10" X 6" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 273 X 168mm
Wall Thickness: 9.27 X 7.11mm
Length: 178mm
£ 511.24 511.24 GBP Available to Order Enquire
DN250 X DN200 (10" X 8" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 273 X 219mm
Wall Thickness: 9.27 X 8.18mm
Length: 178mm
£ 430.48 430.48 GBP Available to Order Enquire
