ASA150

List 600
Sort By: Name (A-Z)

ASA150

DN15 (1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 88.9mm (O)
Flange thickness: 11.1mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 60.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 88.9mm (O)
Flange thickness: 11.1mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 60.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP

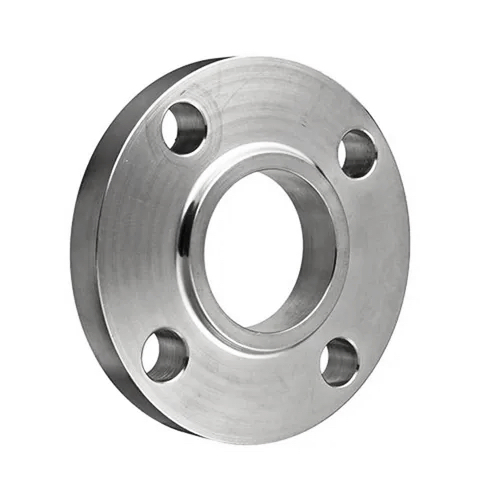

DN20 (3/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP

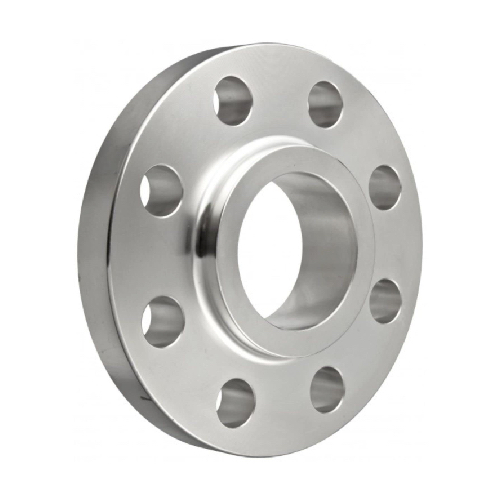

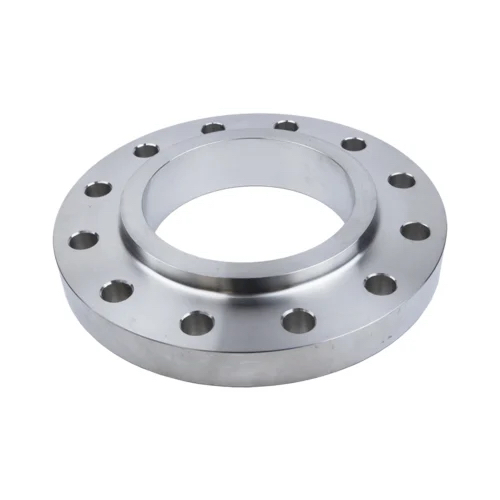

DN20 (3/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 20.5mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 20.5mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 127.0mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 127.0mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN50 (2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 152.4mm (O)
Flange thickness: 19.0mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 120.6mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 61.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN50 (2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 152.4mm (O)
Flange thickness: 19.0mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 120.6mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 61.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 177.8mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 28.4mm (Y)
Pitch Circle Diameter (PCD): 139.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 74.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 177.8mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 28.4mm (Y)
Pitch Circle Diameter (PCD): 139.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 74.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN80 (3" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 190.5mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 152.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN80 (3" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 190.5mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 152.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 90.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN100 (4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 228.6mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 33.2mm (Y)
Pitch Circle Diameter (PCD): 190.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 19.0mm diameter
Bore Diameter: 116.0mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN100 (4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 228.6mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 33.2mm (Y)
Pitch Circle Diameter (PCD): 190.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 19.0mm diameter
Bore Diameter: 116.0mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 254.0mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 36.5mm (Y)
Pitch Circle Diameter (PCD): 215.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 254.0mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 36.5mm (Y)
Pitch Circle Diameter (PCD): 215.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 279.4mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 39.6mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 279.4mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 39.6mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 342.9mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 298.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 342.9mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 298.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN300 (12" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 482.6mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 55.6mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 327.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN300 (12" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 482.6mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 55.6mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 327.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 533.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 57.1mm (Y)
Pitch Circle Diameter (PCD): 476.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 533.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 57.1mm (Y)
Pitch Circle Diameter (PCD): 476.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN400 (16" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 596.9mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 539.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 410.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN400 (16" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 596.9mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 539.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 410.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 635.0mm (O)
Flange thickness: 39.6mm (C)
Flange hub height: 68.3mm (Y)
Pitch Circle Diameter (PCD): 577.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 31.7mm diameter
Bore Diameter: 461.7mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 635.0mm (O)
Flange thickness: 39.6mm (C)
Flange hub height: 68.3mm (Y)
Pitch Circle Diameter (PCD): 577.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 31.7mm diameter
Bore Diameter: 461.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 698.5mm (O)
Flange thickness: 42.9mm (C)
Flange hub height: 73.1mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 513.0mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 698.5mm (O)
Flange thickness: 42.9mm (C)
Flange hub height: 73.1mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 513.0mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 812.8mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 82.5mm (Y)
Pitch Circle Diameter (PCD): 749.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 35.0mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 812.8mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 82.5mm (Y)
Pitch Circle Diameter (PCD): 749.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 35.0mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
