Stainless Steel Blind Flanges – ANSI B16.5, 150lb to 1500lb

Integraflow supplies ANSI/ASME B16.5 stainless steel blind flanges in 304 (1.4301) and 316L (1.4404) grades, available in 150lb, 300lb, 600lb, 900lb, and 1500lb pressure ratings, with sourcing from both European and Far Eastern mills, and full BS EN 10204 3.1 certification, ideal for sealing pipeline ends in high-pressure industrial, chemical, and mechanical systems.

List 200
Sort By: Name (A-Z)

ANSI B16.5

DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£10.50 each
List Price – Sign in to view Trade Prices 10.5 GBP
DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 95.2mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 66.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£15.27 each
List Price – Sign in to view Trade Prices 15.27 GBP
DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£15.66 each
List Price – Sign in to view Trade Prices 15.66 GBP
DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 82.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£30.06 each
List Price – Sign in to view Trade Prices 30.06 GBP

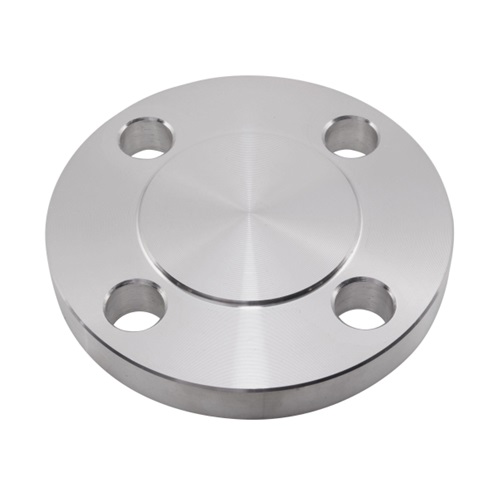

DN25 (1" NB) ASA150 RF BLANK FLANGE SS 304
Blanking / Blind Flange
Material: Stainless
Grade: 304
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit 1/2"⌀ or M12 Bolts
PCD: 79.4mm
Flange Diameter: 107.9mm
Flange Thickness: 17.5mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£14.40 each
List Price – Sign in to view Trade Prices 14.4 GBP
DN25 (1" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£20.22 each
List Price – Sign in to view Trade Prices 20.22 GBP
DN25 (1" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 123.9mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£31.62 each
List Price – Sign in to view Trade Prices 31.62 GBP

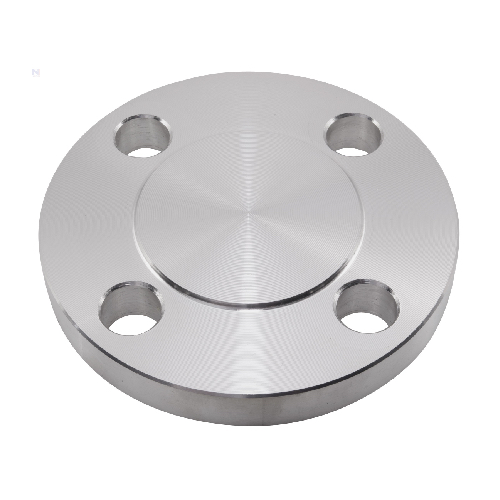

DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£32.16 each
List Price – Sign in to view Trade Prices 32.16 GBP
DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 133.3mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£50.13 each
List Price – Sign in to view Trade Prices 50.13 GBP
DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£35.61 each
List Price – Sign in to view Trade Prices 35.61 GBP
DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£62.10 each
List Price – Sign in to view Trade Prices 62.1 GBP
DN50 (2" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN50 (2" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£58.38 each
List Price – Sign in to view Trade Prices 58.38 GBP

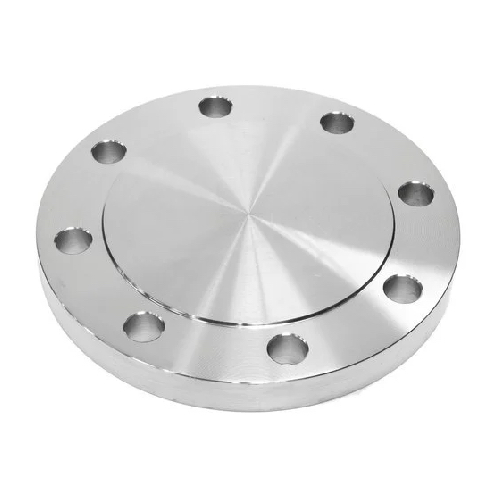

DN50 (2" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 127.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN50 (2" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 165.1mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 127.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£77.76 each
List Price – Sign in to view Trade Prices 77.76 GBP
DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 139.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 139.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£133.53 each
List Price – Sign in to view Trade Prices 133.53 GBP
DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 190.5mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 149.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£146.91 each
List Price – Sign in to view Trade Prices 146.91 GBP
DN80 (3" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£77.58 each
List Price – Sign in to view Trade Prices 77.58 GBP
DN80 (3" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£116.16 each
List Price – Sign in to view Trade Prices 116.16 GBP
DN80 (3" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN80 (3" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 209.5mm
Flange thickness (C): 28.4mm
Pitch circle diameter (K): 168.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£157.53 each
List Price – Sign in to view Trade Prices 157.53 GBP
DN100 (4" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN100 (4" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£157.17 each
List Price – Sign in to view Trade Prices 157.17 GBP
DN100 (4" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 200.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN100 (4" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 200.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£309.72 each
List Price – Sign in to view Trade Prices 309.72 GBP
DN125 (5" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£203.58 each
List Price – Sign in to view Trade Prices 203.58 GBP
DN125 (5" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£349.86 each
List Price – Sign in to view Trade Prices 349.86 GBP
DN150 (6" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£160.56 each
List Price – Sign in to view Trade Prices 160.56 GBP
DN150 (6" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£238.59 each
List Price – Sign in to view Trade Prices 238.59 GBP
DN150 (6" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£472.20 each
List Price – Sign in to view Trade Prices 472.2 GBP
DN200 (8" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£498.45 each
List Price – Sign in to view Trade Prices 498.45 GBP
DN200 (8" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£685.89 each
List Price – Sign in to view Trade Prices 685.89 GBP
DN250 (10" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 (12" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

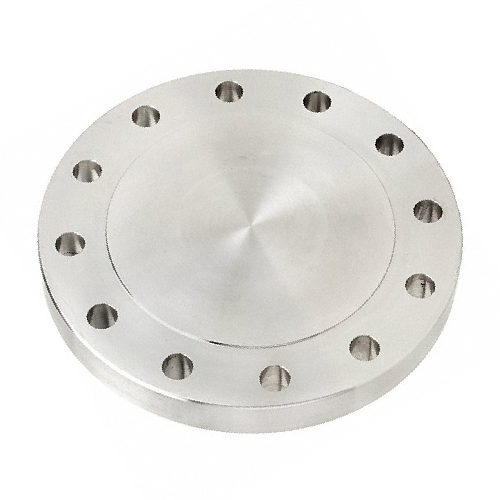

DN300 (12" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£1132.56 each
List Price – Sign in to view Trade Prices 1132.56 GBP
DN300 (12" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Pitch circle diameter (K): 450.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 (12" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Pitch circle diameter (K): 450.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£1447.05 each
List Price – Sign in to view Trade Prices 1447.05 GBP
DN350 (14" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

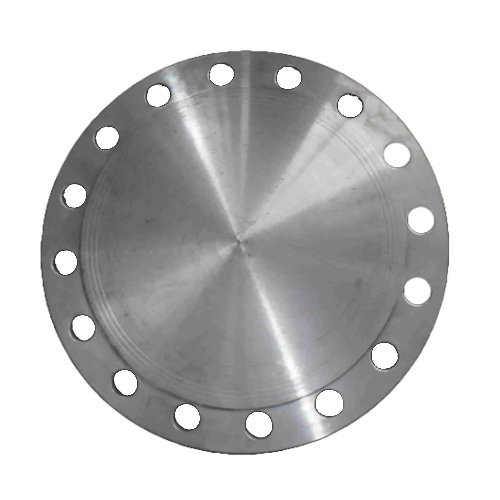

DN400 (16" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 539.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN400 (16" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 539.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£1826.76 each
List Price – Sign in to view Trade Prices 1826.76 GBP
DN400 (16" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 647.7mm
Flange thickness (C): 57.1mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN400 (16" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 647.7mm
Flange thickness (C): 57.1mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Pitch circle diameter (K): 628.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Pitch circle diameter (K): 628.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 24
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

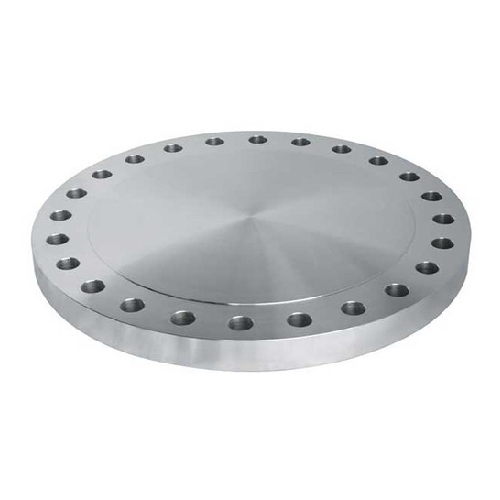

DN500 (20" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Pitch circle diameter (K): 685.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Pitch circle diameter (K): 685.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
