Elbows 90°

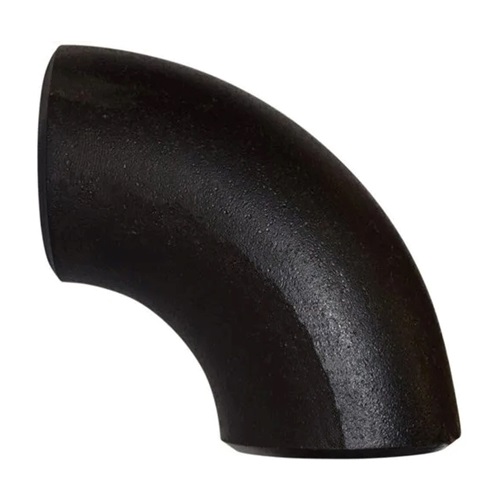

DN15 (½" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 21.3mm
Wall Thickness: 3.73mm
Centre to Face: 38.1mm
Schedule: XS
Weight: 0.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 2.80 2.8 GBP

DN20 (¾" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 26.7mm
Wall Thickness: 3.91mm
Centre to Face: 28.6mm
Schedule: XS
Weight: 0.11kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 3.71 3.71 GBP

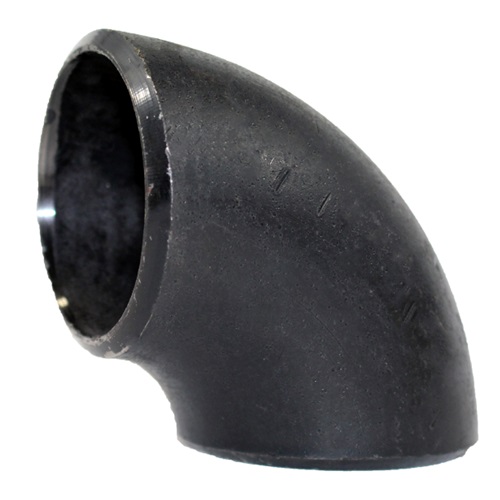

DN20 (¾" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 27.0mm
Wall Thickness: 3.91mm
Centre to Face: 19.0mm
Schedule: XS
Weight: 0.07kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN25 (1" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 38.1mm
Schedule: XS
Weight: 0.19kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 3.36 3.36 GBP

DN25 (1" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 25.4mm
Schedule: XS
Weight: 0.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 5.88 5.88 GBP

DN32 (1¼" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 47.6mm
Schedule: XS
Weight: 0.39kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 5.25 5.25 GBP

DN32 (1¼" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 31.75mm
Schedule: XS
Weight: 0.23kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 7.56 7.56 GBP

DN40 (1½" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 48.3mm
Wall Thickness: 5.08mm
Centre to Face: 57.1mm
Schedule: XS
Weight: 0.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 6.44 6.44 GBP

DN40 (1½" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 48.3mm
Wall Thickness: 5.08mm
Centre to Face: 38.1mm
Schedule: XS
Weight: 0.33kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 9.03 9.03 GBP

DN50 (2" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 76.2mm
Schedule: XS
Weight: 1.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 12.46 12.46 GBP

DN50 (2" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 50.8mm
Schedule: XS
Weight: 0.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 13.09 13.09 GBP

DN65 (2½" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 73.0mm
Wall Thickness: 7.01mm
Centre to Face: 95.2mm
Schedule: XS
Weight: 1.82kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 23.45 23.45 GBP

DN65 (2½" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 73.0mm
Wall Thickness: 7.01mm
Centre to Face: 63.5mm
Schedule: XS
Weight: 1.14kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 19.95 19.95 GBP

DN80 (3" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 114.3mm
Schedule: XS
Weight: 2.86kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 32.41 32.41 GBP

DN80 (3" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 76.2mm
Schedule: XS
Weight: 1.83kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 28.07 28.07 GBP

DN100 (4" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 114.3mm
Wall Thickness: 8.56mm
Centre to Face: 152.4mm
Schedule: XS
Weight: 5.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 62.51 62.51 GBP

DN100 (4" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 114.3mm
Wall Thickness: 9.5mm
Centre to Face: 101.6mm
Schedule: XS
Weight: 6.21kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 50.33 50.33 GBP

DN100 (4" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 114.3mm
Wall Thickness: 8.56mm
Centre to Face: 101.6mm
Schedule: XS
Weight: 3.58kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 50.33 50.33 GBP

DN125 (5" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 190.0mm
Schedule: XS
Weight: 10.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 107.10 107.1 GBP

DN125 (5" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 127.0mm
Schedule: XS
Weight: 6.89kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 101.43 101.43 GBP

DN150 (6" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 229.0mm
Schedule: XS
Weight: 15.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 169.54 169.54 GBP

DN150 (6" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 152.4mm
Schedule: XS
Weight: 10.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 165.69 165.69 GBP

DN200 (8" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 305.0mm
Schedule: XS
Weight: 30.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 390.46 390.46 GBP

DN200 (8" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 203.0mm
Schedule: XS
Weight: 20.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 229.11 229.11 GBP

DN250 (10" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 273.9mm
Wall Thickness: 12.7mm
Centre to Face: 254.0mm
Schedule: XS
Weight: 24.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 528.22 528.22 GBP

DN300 (12" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Centre to Face: 305.0mm
Schedule: XS
Weight: 35.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 850.71 850.71 GBP

DN350 (14" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 355.6mm
Wall Thickness: 12.7mm
Centre to Face: 355.6mm
Schedule: XS
Weight: 45.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN400 (16" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 406.4mm
Wall Thickness: 12.7mm
Centre to Face: 406.4mm
Schedule: XS
Weight: 59.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

£ 1,362.27 1362.27 GBP

DN450 (18" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 457.0mm
Wall Thickness: 12.7mm
Centre to Face: 457.0mm
Schedule: XS
Weight: 75.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN500 (20" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 508.0mm
Wall Thickness: 12.7mm
Centre to Face: 508.0mm
Schedule: XS
Weight: 92.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN550 (22" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 558.8mm
Wall Thickness: 12.7mm
Centre to Face: 559.0mm
Schedule: XS
Weight: 117.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN600 (24" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 609.6mm
Wall Thickness: 12.7mm
Centre to Face: 609.6mm
Schedule: XS
Weight: 154.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN650 (26" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 660.4mm
Wall Thickness: 12.7mm
Centre to Face: 660.4mm
Schedule: XS
Weight: 183.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN700 (28" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 711.2mm
Wall Thickness: 12.7mm
Centre to Face: 711.2mm
Schedule: XS
Weight: 258.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN750 (30" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 762.0mm
Wall Thickness: 12.7mm
Centre to Face: 762.0mm
Schedule: XS
Weight: 287.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN800 (32" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 812.8mm
Wall Thickness: 12.7mm
Centre to Face: 812.8mm
Schedule: XS
Weight: 344.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN900 (36" NB) SCHEDULE 80 / XS A234 WPB SHORT RADIUS 90 DEG ELBOW

Outside Diameter (OD): 914.4mm
Wall Thickness: 12.7mm
Centre to Face: 914.4mm
Schedule: XS
Weight: 414.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN250 (10" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 273.9mm
Wall Thickness: 12.7mm
Centre to Face: 381.0mm
Schedule: XS
Weight: 48.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 508.13 508.13 GBP

DN300 (12" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 323.9mm
Wall Thickness: 12.7mm
Centre to Face: 457.0mm
Schedule: XS
Weight: 70.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 1,047.41 1047.41 GBP

DN350 (14" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 355.6mm
Wall Thickness: 12.7mm
Centre to Face: 553.0mm
Schedule: XS
Weight: 90.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 1,081.36 1081.36 GBP
