PN25

DN50 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN65 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN80 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 128mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN100 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 235mm (D)
PCD: 190mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN125 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 270mm (D)
PCD: 220mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN150 (6" NB) (168.3mm) PN25/40 RF SLIP ON PLATE FLANGE CS S235 JR
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M24 Bolts
PCD: 250mm
Flange Diameter: 300mm
Flange Thickness: 30mm
Certification Available: 2.1 BS EN 10204 Material Certification
£ 105.70 105.7 GBP
DN150 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 300mm (D)
PCD: 250mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN200 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

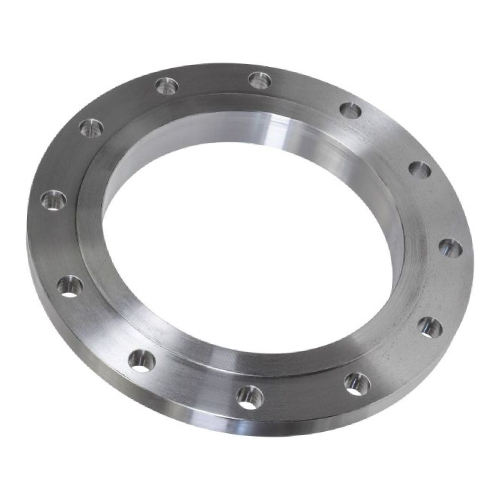

DN250 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 425mm (D)
PCD: 370mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN300 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 485mm (D)
PCD: 430mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

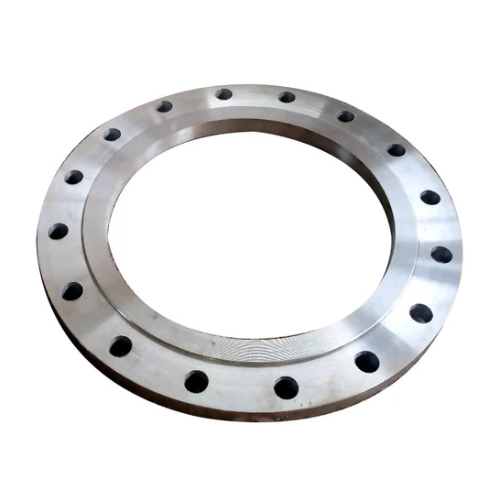

DN350 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 555mm (D)
PCD: 490mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN400 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 620mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 36mm diameter (L)
Flange Thickness: 48mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN450 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 670mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 54mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

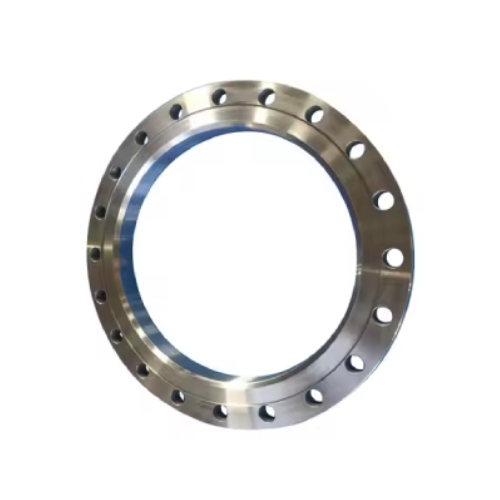

DN500 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 730mm (D)
PCD: 660mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 58mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN600 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 845mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 39mm diameter (L)
Flange Thickness: 68mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN700 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 960mm (D)
PCD: 875mm (K)
Bolt Holes: 24 off 42mm diameter (L)
Flange Thickness: 85mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN800 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 1085mm (D)
PCD: 990mm (K)
Bolt Holes: 24 off 48mm diameter (L)
Flange Thickness: 95mm (C1)
Diameter of Raised Face (RF): 880mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
