316

List 600
Sort By: Name (A-Z)

316

DN15 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 22.0mm (B1)
Flange overall diameter: 95mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 14mm (C1)
Diameter of Raised Face (RF): 40mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 37.24 37.24 GBP
DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 48.86 48.86 GBP
DN25 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 34.5mm (B1)
Flange overall diameter: 115mm (D)
PCD: 85mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 60mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 59.78 59.78 GBP
DN32 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 43.5mm (B1)
Flange overall diameter: 140mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 70mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 102.20 102.2 GBP
DN40 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 49.5mm (B1)
Flange overall diameter: 150mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 18mm (C1)
Diameter of Raised Face (RF): 80mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 114.10 114.1 GBP
DN50 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 61.5mm (B1)
Flange overall diameter: 165mm (D)
PCD: 125mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 90mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 113.82 113.82 GBP
DN65 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 OR 8* off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 130.27 130.27 GBP
DN80 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 90.5mm (B1)
Flange overall diameter: 200mm (D)
PCD: 160mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 138mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 135.03 135.03 GBP
DN100 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 116.0mm (B1)
Flange overall diameter: 220mm (D)
PCD: 180mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 148mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 173.46 173.46 GBP
DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 216.23 216.23 GBP
DN150 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
£ 289.45 289.45 GBP
DN200 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
£ 517.51 517.51 GBP

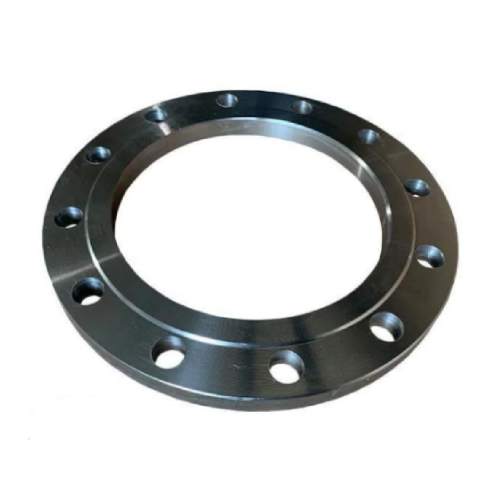

DN250 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 395mm (D)
PCD: 350mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
£ 659.89 659.89 GBP
DN300 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
£ 738.36 738.36 GBP
DN350 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 505mm (D)
PCD: 460mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
£ 1,224.09 1224.09 GBP
DN400 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 565mm (D)
PCD: 515mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
£ 1,546.37 1546.37 GBP

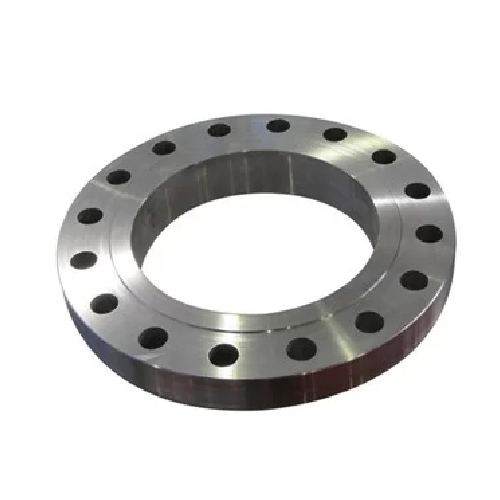

DN450 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 615mm (D)
PCD: 565mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN500 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 670mm (D)
PCD: 620mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN600 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 780mm (D)
PCD: 725mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN700 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 895mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 56mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN800 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 818.0mm (B1)
Flange overall diameter: 1015mm (D)
PCD: 950mm (K)
Bolt Holes: 24 off 30mm diameter (L)
Flange Thickness: 56mm (C1)
Diameter of Raised Face (RF): 880mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN900 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 922.0mm (B1)
Flange overall diameter: 1115mm (D)
PCD: 1050mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 62mm (C1)
Diameter of Raised Face (RF): 980mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN1000 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1230mm (D)
PCD: 1160mm (K)
Bolt Holes: 28 off 36mm diameter (L)
Flange Thickness: 70mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN1200 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1455mm (D)
PCD: 1380mm (K)
Bolt Holes: 32 off 36mm diameter (L)
Flange Thickness: 83mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
