ANSI B16.5

Stainless Steel Bossed Slip-On Flanges – ANSI B16.5, 150lb to 1500lb

Integraflow supplies ANSI/ASME B16.5 stainless steel bossed slip-on flanges in 304 (1.4301) and 316/L (1.4404)grades, available in 150lb, 300lb, 600lb, 900lb, and 1500lb pressure ratings, sourced from European and Far Eastern mills, and provided with full BS EN 10204 3.1 certification, ideal for reliable welded flange connections in industrial, chemical, and high-pressure pipeline systems.

List 600
Sort By: Name (A-Z)

ANSI B16.5

DN15 (1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 88.9mm (O)
Flange thickness: 11.1mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 60.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 88.9mm (O)
Flange thickness: 11.1mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 60.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 120.6mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 120.6mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 95.2mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 66.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 130.0mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 35.0mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 130.0mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 35.0mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP

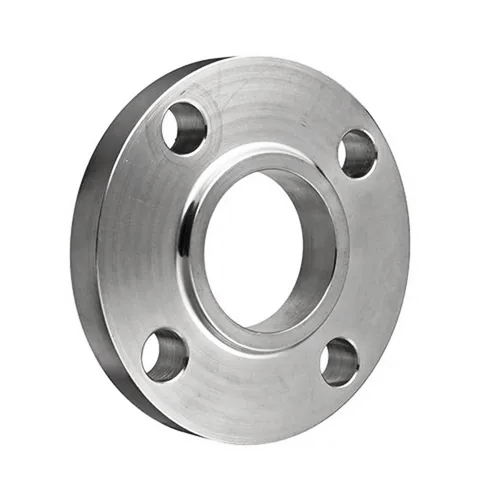

DN20 (3/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 27.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 149.3mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 101.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 149.3mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 101.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
DN25 (1" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 123.9mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 34.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 20.5mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 20.5mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 158.7mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 111.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 158.7mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 111.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 133.3mm (O)
Flange thickness: 19.0mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 133.3mm (O)
Flange thickness: 19.0mm (C)
Flange hub height: 26.9mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 133.3mm (O)
Flange thickness: 20.5mm (C)
Flange hub height: 28.4mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 133.3mm (O)
Flange thickness: 20.5mm (C)
Flange hub height: 28.4mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 43.1mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 127.0mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 127.0mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 177.8mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 123.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 28.4mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 177.8mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 123.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 28.4mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 155.4mm (O)
Flange thickness: 20.5mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 155.4mm (O)
Flange thickness: 20.5mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 155.4mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 155.4mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
Contact us for pricing 0.0 GBP
