Elbows 90°

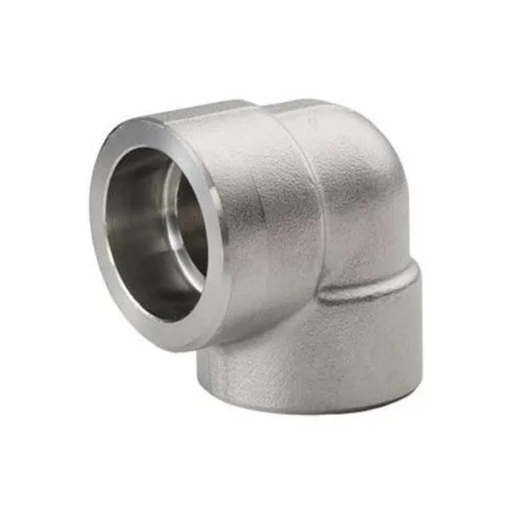

DN8 (¼" NB) SW 3000# FXF ELBOW 90° SS 316

Connection: ¼" SW (Socket Weld)
Suits an outside diameter (OD) of: 13.79mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel

£ 18.24 18.24 GBP Available to Order Enquire

DN10 (⅜" NB) SW 3000# FXF ELBOW 90° SS 316

Connection: ⅜" SW (Socket Weld)
Suits an outside diameter (OD) of: 17.15mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel

£ 19.24 19.24 GBP Available to Order Enquire

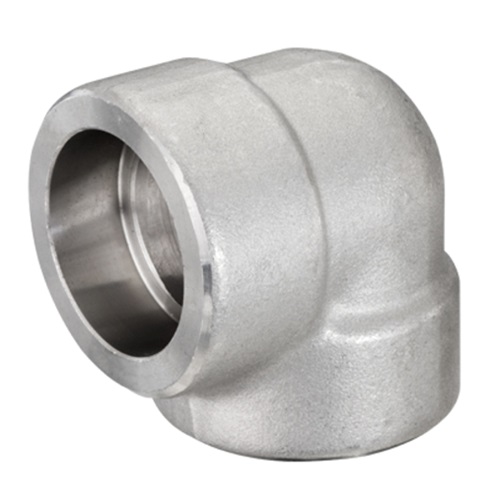

DN15 (1/2" NB) SOCKET WELD 3000# ELBOW 90° SS 316

Both sides: 1/2" Socket Weld
Suits an outside diameter (OD) of: 21.3mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, 90, 90° Elbow, Fittings.

£ 5.60 5.6 GBP Limited Stock

DN15 (½" NB) SW 3000# FXF ELBOW 90° SS 316

Connection: ½" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel

£ 24.72 24.72 GBP Available to Order Enquire

DN20 (3/4" NB) SOCKET WELD 3000# ELBOW 90° SS 316

Both sides: 3/4" Socket Weld
Suits an outside diameter (OD) of: 26.9mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, 90, 90° Elbow, Fittings.

£ 45.72 45.72 GBP Limited Stock

DN20 (¾" NB) SW 3000# FXF ELBOW 90° SS 316

Connection: ¾" SW (Socket Weld)
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel

£ 33.36 33.36 GBP Available to Order Enquire

DN25 (1" NB) SOCKET WELD 3000# ELBOW 90° SS 316

Both sides: 1" Socket Weld
Suits an outside diameter (OD) of: 33.4mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, 90, 90° Elbow, Fittings.

£ 47.20 47.2 GBP Available to Order Enquire

DN25 (1" NB) SW 3000# FXF ELBOW 90° SS 316

Threaded: ¾" SW (Socket Weld) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Stainless Steel

£ 54.44 54.44 GBP Available to Order Enquire

DN32 (1.1/4" NB) SOCKET WELD 3000# ELBOW 90° SS 316

Both sides: 1.1/4" Socket Weld
Suits an outside diameter (OD) of: 42.4mm
Material: Stainless 316

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, 90, 90° Elbow, Fittings.

£ 98.44 98.44 GBP Available to Order Enquire

DN32 (1¼" NB) SW 3000# FXF ELBOW 90° SS 316

Threaded: 1¼" SW (Socket Weld) Female
Suits an outside diameter (OD) of: 42.4mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Stainless Steel

£ 99.32 99.32 GBP Available to Order Enquire

DN40 (1½" NB) SW 3000# FXF ELBOW 90° SS 316

Threaded: 1½" SW (Socket Weld) Female
Suits an outside diameter (OD) of: 48.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Stainless Steel

£ 137.08 137.08 GBP Available to Order Enquire

DN50 (2" NB) SW 3000# FXF ELBOW 90° SS 316

Connection: 2" SW (Socket Weld)
Suits an outside diameter (OD) of: 60.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel

£ 235.32 235.32 GBP Available to Order Enquire

DN80 (3" NB) SOCKET WELD 3000# ELBOW 90° SS 316/L

Both sides: 3" Socket Weld
Suits an outside diameter (OD) of: 88.9mm
Material: Stainless 316/L

Standards:
Nominal Bore, Socket Weld, High Pressure, 3000 psi, 3000 lb, Class 3000, Forged Stainless, ANSI B16.11/BS3799

Applications:
High Pressure Applications, Steam, Chemicals, Water, Oil & Gasses*

Alternative terminology:
Forged, Stainless, Socket Weld, 90, 90° Elbow, Fittings.

£ 860.00 860.0 GBP Available to Order Enquire
