PN6

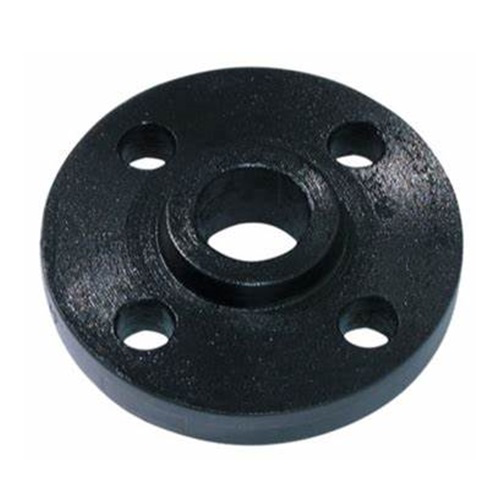

Flange outside diameter: 75mm (D)
Flange inside diameter: 18.0mm (B1)
Flange thickness (C2): 12mm
Pitch Circle Diameter (PCD): 50mm (K)
Hub height: 20mm (H1)
Neck diameter: 25mm (N2)
Raised Face Diameter: 35mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 11mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 80mm (D)
Flange inside diameter: 22.0mm (B1)
Flange thickness (C2): 12mm
Pitch Circle Diameter (PCD): 55mm (K)
Hub height: 20mm (H1)
Neck diameter: 30mm (N2)
Raised Face Diameter: 40mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 11mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 90mm (D)
Flange inside diameter: 27.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 65mm (K)
Hub height: 24mm (H1)
Neck diameter: 40mm (N2)
Raised Face Diameter: 50mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 11mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 100mm (D)
Flange inside diameter: 34.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 75mm (K)
Hub height: 24mm (H1)
Neck diameter: 50mm (N2)
Raised Face Diameter: 60mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 11mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 120mm (D)
Flange inside diameter: 43.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 90mm (K)
Hub height: 26mm (H1)
Neck diameter: 60mm (N2)
Raised Face Diameter: 70mm (d1)
Height of Raised Face: 2mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 130mm (D)
Flange inside diameter: 49.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 100mm (K)
Hub height: 26mm (H1)
Neck diameter: 70mm (N2)
Raised Face Diameter: 80mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 140mm (D)
Flange inside diameter: 61.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 110mm (K)
Hub height: 28mm (H1)
Neck diameter: 80mm (N2)
Raised Face Diameter: 110mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 4 off 14mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 160mm (D)
Flange inside diameter: 77.5mm (B1)
Flange thickness (C2): 14mm
Pitch Circle Diameter (PCD): 130mm (K)
Hub height: 32mm (H1)
Neck diameter: 100mm (N2)
Raised Face Diameter: 128mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

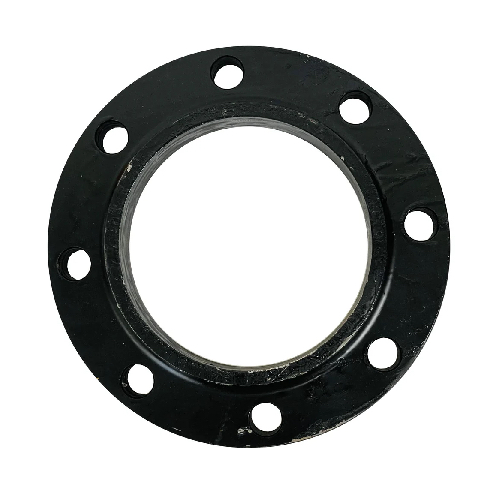

Flange outside diameter: 190mm (D)
Flange inside diameter: 90.5mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 150mm (K)
Hub height: 34mm (H1)
Neck diameter: 110mm (N2)
Raised Face Diameter: 148mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 210mm (D)
Flange inside diameter: 116.0mm (B1)
Flange thickness (C2): 16mm
Pitch Circle Diameter (PCD): 170mm (K)
Hub height: 40mm (H1)
Neck diameter: 130mm (N2)
Raised Face Diameter: 178mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 240mm (D)
Flange inside diameter: 141.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 200mm (K)
Hub height: 44mm (H1)
Neck diameter: 160mm (N2)
Raised Face Diameter: 202mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 18mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 265mm (D)
Flange inside diameter: 170.5mm (B1)
Flange thickness (C2): 18mm
Pitch Circle Diameter (PCD): 225mm (K)
Hub height: 44mm (H1)
Neck diameter: 185mm (N2)
Raised Face Diameter: 258mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

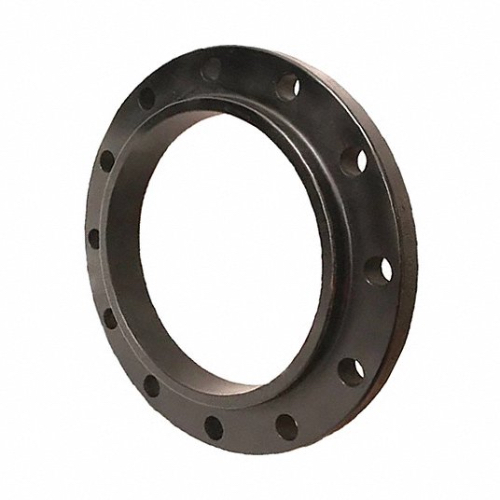

Flange outside diameter: 320mm (D)
Flange inside diameter: 221.5mm (B1)
Flange thickness (C2): 20mm
Pitch Circle Diameter (PCD): 280mm (K)
Hub height: 44mm (H1)
Neck diameter: 240mm (N2)
Raised Face Diameter: 312mm (d1)
Height of Raised Face: 3mm (f1)
Bolt Holes: 8 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 375mm (D)
Flange inside diameter: 276.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 335mm (K)
Hub height: 44mm (H1)
Neck diameter: 295mm (N2)
Raised Face Diameter: 362mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 440mm (D)
Flange inside diameter: 327.5mm (B1)
Flange thickness (C2): 22mm
Pitch Circle Diameter (PCD): 395mm (K)
Hub height: 44mm (H1)
Neck diameter: 355mm (N2)
Raised Face Diameter: 412mm (d1)
Height of Raised Face: 4mm (f1)
Bolt Holes: 12 off 22mm diameter (L)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Bossed Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, SOB

Part of our Flanges and Flanged Connections Range
