ASA150

Flange outside diameter: 88.9mm (O)
Flange thickness: 11.1mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 60.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 22.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 98.5mm (O)
Flange thickness: 12.7mm (C)
Flange hub height: 15.7mm (Y)
Pitch Circle Diameter (PCD): 69.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 27.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 107.9mm (O)
Flange thickness: 14.2mm (C)
Flange hub height: 17.5mm (Y)
Pitch Circle Diameter (PCD): 79.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 34.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 33.4mm
Material: Mild Steel
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 79.4mm
Flange Diameter: 123.8mm
Flange Thickness: 17.46mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Bossed Flange, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 117.3mm (O)
Flange thickness: 15.7mm (C)
Flange hub height: 20.5mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 43.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 127.0mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 49.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 152.4mm (O)
Flange thickness: 19.0mm (C)
Flange hub height: 25.4mm (Y)
Pitch Circle Diameter (PCD): 120.6mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 61.9mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 60.3mm
Material: Mild Steel
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit M16 Bolts
PCD: 120.65mm
Flange Diameter: 152mm
Flange Thickness: 19.05mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Bossed Flange, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 177.8mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 28.4mm (Y)
Pitch Circle Diameter (PCD): 139.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 74.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 190.5mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 152.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 19.0mm diameter
Bore Diameter: 90.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 88.9mm
Material: Mild Steel
Grade: A105 N
Standards: ANSI / ASA150
Flange Face: Raised
Bolt Holes: 4 off 19mm Ø
PCD: 152.4mm
Flange Diameter: 190.5mm
Flange Thickness: 23.5mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on, Bossed Flange, Weld on, Mild Steel, Carbon Steel

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 228.6mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 33.2mm (Y)
Pitch Circle Diameter (PCD): 190.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 19.0mm diameter
Bore Diameter: 116.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 254.0mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 36.5mm (Y)
Pitch Circle Diameter (PCD): 215.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 279.4mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 39.6mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 342.9mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 298.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 221.4mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 482.6mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 55.6mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 327.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 533.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 57.1mm (Y)
Pitch Circle Diameter (PCD): 476.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 596.9mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 539.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 410.4mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 635.0mm (O)
Flange thickness: 39.6mm (C)
Flange hub height: 68.3mm (Y)
Pitch Circle Diameter (PCD): 577.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 31.7mm diameter
Bore Diameter: 461.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 698.5mm (O)
Flange thickness: 42.9mm (C)
Flange hub height: 73.1mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 31.7mm diameter
Bore Diameter: 513.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 812.8mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 82.5mm (Y)
Pitch Circle Diameter (PCD): 749.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 35.0mm diameter
Bore Diameter: 615.9mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:

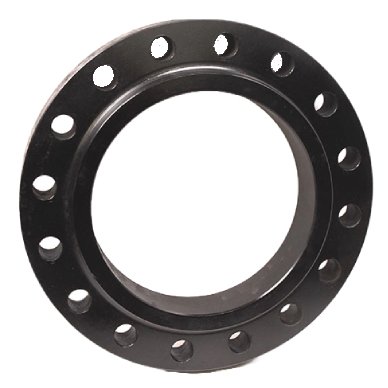

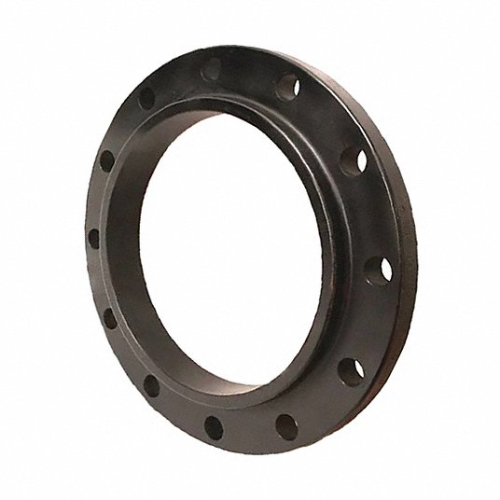

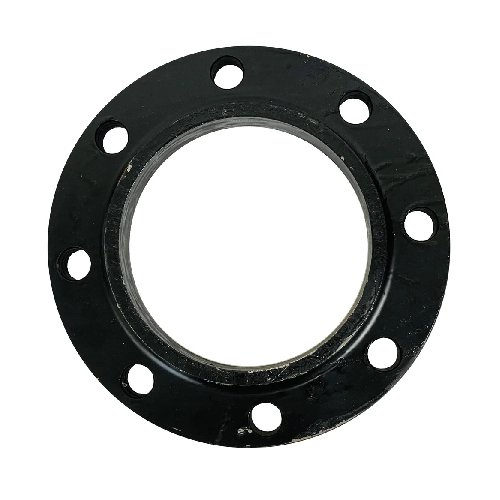

Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
