EN1092-1 Type 05 Blind Flanges – PN6 to PN40, S235JR

Integraflow supplies EN1092-1 Type 05 blind flanges in S235JR carbon steel, covering PN6, PN10, PN16, PN25, and PN40 pressure ratings, sourced from both European and Far Eastern mills, and supplied with BS EN 10204 2.1 certification, ideal for securely sealing pipework ends in water, air, gas, and general industrial systems.

List 600
Sort By: Name (A-Z)

EN1092-5

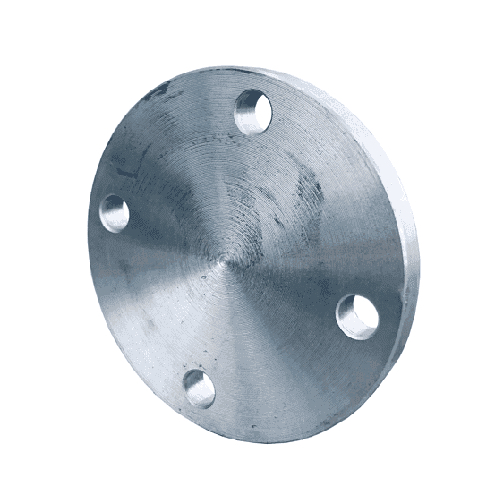

DN15 (1/2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 80mm (D)
PCD: 55mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 12mm (C4)
Diameter of Flat Face (RF): 40mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN15 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 95mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 65mm
Flange thickness (C4): 16mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 90mm (D)
PCD: 65mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Flat Face (RF): 52mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN20 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 105mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 75mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN25 (1" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 100mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 11mm diameter (L)
Flange Thickness: 14mm (C4)
Diameter of Flat Face (RF): 62mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN25 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 115mm
Drilling (No. x Bolt Holes x L): 4 x M12 x 14mm
Pitch circle diameter (K): 85mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN32 (1.1/4" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 120mm (D)
PCD: 70mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 70mm (D1)
Height of Flat Face: 2mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN32 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 140mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 100mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN40 (1.1/2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 130mm (D)
PCD: 100mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 80mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN40 PN10 / PN16 / PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 150mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 110mm
Flange thickness (C4): 18mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN50 (2" NB) PN10 / PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 165mm
Drilling (No. x Bolt Hole x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 90mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN50 (2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 140mm (D)
PCD: 110mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 90mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN50 PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 165mm
Drilling (No. x Bolt Holes x L): 4 x M16 x 18mm
Pitch circle diameter (K): 125mm
Flange thickness (C4): 20mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) PN10 / PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 185mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 110mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Flat Face (RF): 110mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 185mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C4): 22mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN80 (3" NB) PN10 / PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 200mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 138mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN80 (3" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 190mm (D)
PCD: 150mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Flat Face (RF): 128mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN80 PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 200mm
Drilling (No. x Bolt Holes x L): 8 x M16 x 18mm
Pitch circle diameter (K): 160mm
Flange thickness (C4): 24mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN100 (4" NB) PN10 / PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 220mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 180mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 148mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN100 (4" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 210mm (D)
PCD: 170mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 18mm (C4)
Diameter of Flat Face (RF): 148mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN100 PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 235mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 190mm
Flange thickness (C4): 24mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN10 / PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 250mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 210mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 178mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C4)
Diameter of Flat Face (RF): 178mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 270mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 220mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) PN10 / PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 285mm
Drilling (No. x Bolt Hole x L): 8 x M20 x 22mm
Pitch circle diameter (K): 240mm
Flange thickness (C1): 24mm
Raised face diameter (D1): 202mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 202mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 PN25 / PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 340mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C4): 24~mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 340mm
Drilling (No. x Bolt Hole x L): 12 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C1): 26mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£130.20 each
List Price – Sign in to view Trade Prices 130.2 GBP
DN200 (8" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 360mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 310mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 258mm (D1)
Height of Flat Face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 312mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 450mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 33mm
Pitch circle diameter (K): 385mm
Flange thickness (C4): 38mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250(10" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 405mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 355mm
Flange thickness (C1): 29mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£201.39 each
List Price – Sign in to view Trade Prices 201.39 GBP
DN300 (12" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 445mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 400mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 460mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 410mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£288.68 each
List Price – Sign in to view Trade Prices 288.68 GBP
DN300 (12" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

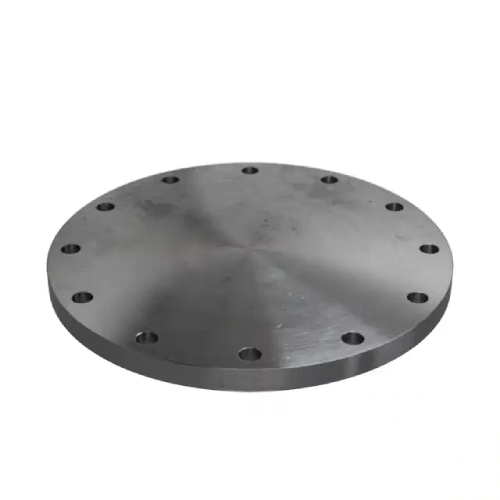

DN300 (12" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Flat Face (RF): 365mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN300 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 505mm
Drilling (No. x Bolt Holes x L): 16 x M20 x 22mm
Pitch circle diameter (K): 460mm
Flange thickness (C4): 30mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

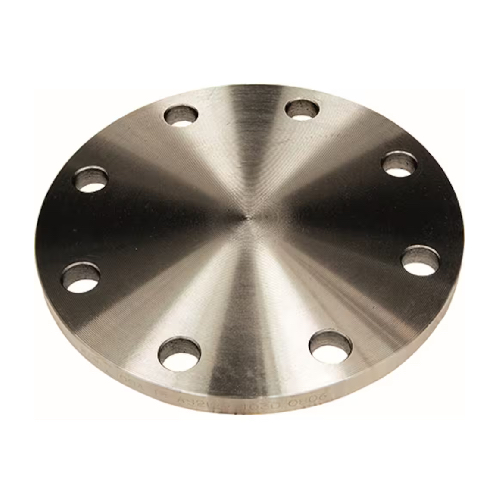

DN350 (14" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 520mm
Drilling (No. x Bolt Hole x L): 16 x M24 x 26mm
Pitch circle diameter (K): 470mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£420.00 each
List Price – Sign in to view Trade Prices 420.0 GBP
DN350 (14" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 555mm
Drilling (No. x Bolt Hole x L): 16 x M30 x 33mm
Pitch circle diameter (K): 490mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C4)
Diameter of Flat Face (RF): 415mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN350 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 580mm
Drilling (No. x Bolt Holes x L): 16 x M36 x 36mm
Pitch circle diameter (K): 510mm
Flange thickness (C4): 46mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN400 (16" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 565mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 26mm
Pitch circle diameter (K): 515mm
Flange thickness (C4): 32mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN400 (16" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 580mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 525mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 465mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£560.00 each
List Price – Sign in to view Trade Prices 560.0 GBP
DN400 (16" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 620mm
Drilling (No. x Bolt Hole x L): 16 x M33 x 36mm
Pitch circle diameter (K): 550mm
Flange thickness (C1): 48mm
Raised face diameter (D1): 465mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

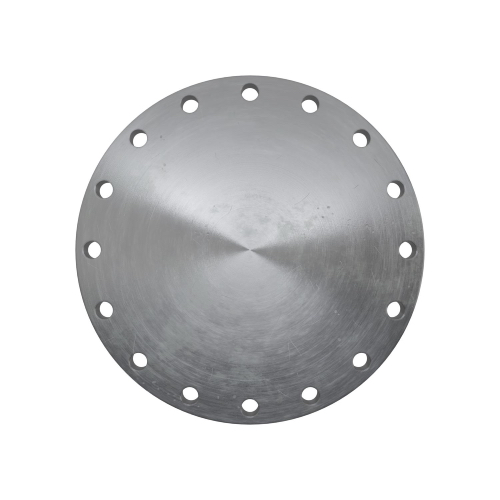

DN400 (16" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 540mm (D)
PCD: 495mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 28mm (C4)
Diameter of Flat Face (RF): 465mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN400 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 660mm
Drilling (No. x Bolt Holes x L): 16 x M36 x 39mm
Pitch circle diameter (K): 585mm
Flange thickness (C4): 50mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 615mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 656mm
Flange thickness (C4): 36mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 640mm
Drilling (No. x Bolt Hole x L): 20 x M27 x 30mm
Pitch circle diameter (K): 585mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£945.00 each
List Price – Sign in to view Trade Prices 945.0 GBP
DN450 (18" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 670mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 600mm
Flange thickness (C1): 54mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

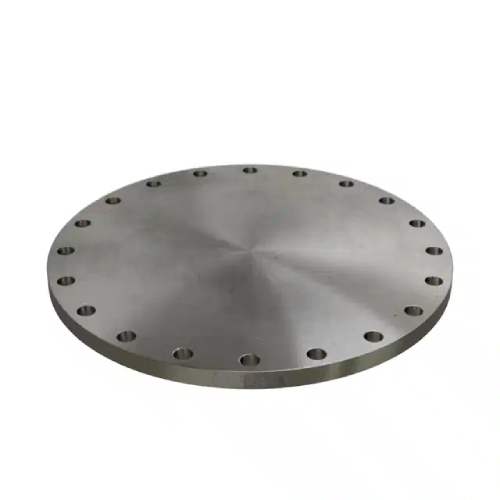

DN450 (18" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 595mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 30mm (C4)
Diameter of Flat Face (RF): 520mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN450 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 685mm
Drilling (No. x Bolt Holes x L): 20 x M39 x 39mm
Pitch circle diameter (K): 610mm
Flange thickness (C4): 57mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 670mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 620mm
Flange thickness (C4): 38mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 715mm
Drilling (No. x Bolt Hole x L): 20 x M30 x 33mm
Pitch circle diameter (K): 650mm
Flange thickness (C1): 50mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£1190.00 each
List Price – Sign in to view Trade Prices 1190.0 GBP
DN500 (20" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 730mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 660mm
Flange thickness (C1): 58mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

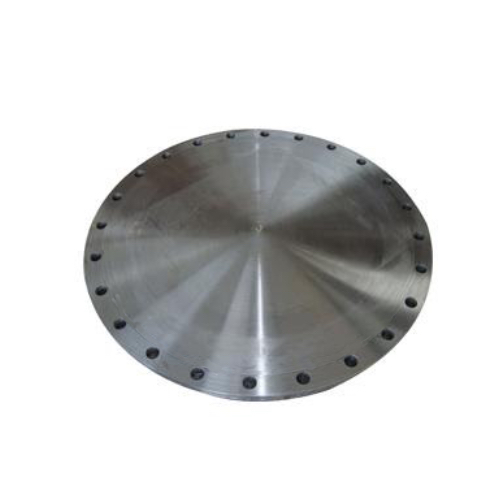

DN500 (20" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 645mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 570mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 755mm
Drilling (No. x Bolt Holes x L): 20 x M45 x 42mm
Pitch circle diameter (K): 670mm
Flange thickness (C4): 57mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 780mm
Drilling (No. x Bolt Holes x L): 20 x M27 x 30mm
Pitch circle diameter (K): 725mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 840mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 55mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£2065.00 each
List Price – Sign in to view Trade Prices 2065.0 GBP
DN600 (24" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 845mm
Drilling (No. x Bolt Hole x L): 20 x M36 x 39mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 68mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

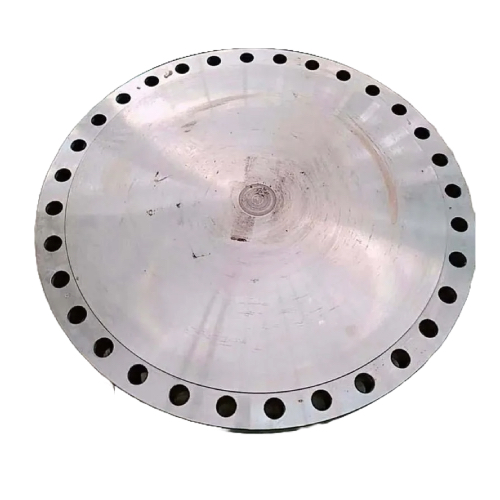

DN600 (24" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 675mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 890mm
Drilling (No. x Bolt Holes x L): 20 x M36 x 48mm
Pitch circle diameter (K): 795mm
Flange thickness (C4): 72mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 895mm
Drilling (No. x Bolt Holes x L): 24 x M27 x 30mm
Pitch circle diameter (K): 840mm
Flange thickness (C4): 50mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 910mm
Drilling (No. x Bolt Hole x L): 24 x M33 x 36mm
Pitch circle diameter (K): 840mm
Flange thickness (C1): 63mm
Raised face diameter (D1): 770mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£3242.05 each
List Price – Sign in to view Trade Prices 3242.05 GBP
DN700 (28" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 960mm
Drilling (No. x Bolt Hole x L): 24 x M39 x 42mm
Pitch circle diameter (K): 875mm
Flange thickness (C1): 85mm
Raised face diameter (D1): 775mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 860mm (D)
PCD: 810mm (K)
Bolt Holes: 24 off 26mm diameter (L)
Flange Thickness: 40mm (C4)
Diameter of Flat Face (RF): 775mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN800 (32" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1015mm
Drilling (No. x Bolt Holes x L): 24 x M30 x 33mm
Pitch circle diameter (K): 950mm
Flange thickness (C4): 56mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN800 (32" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1025mm
Drilling (No. x Bolt Hole x L): 24 x M36 x 39mm
Pitch circle diameter (K): 950mm
Flange thickness (C1): 74mm
Raised face diameter (D1): 880mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£3850.00 each
List Price – Sign in to view Trade Prices 3850.0 GBP
DN800 (32" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1085mm
Drilling (No. x Bolt Hole x L): 24 x M45 x 48mm
Pitch circle diameter (K): 990mm
Flange thickness (C1): 95mm
Raised face diameter (D1): 880mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN800 (32" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 975mm (D)
PCD: 918mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 44mm (C4)
Diameter of Flat Face (RF): 885mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN900 (36" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1115mm
Drilling (No. x Bolt Holes x L): 28 x M30 x 33mm
Pitch circle diameter (K): 1050mm
Flange thickness (C4): 62mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN900 (36" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1125mm
Drilling (No. x Bolt Hole x L): 28 x M36 x 39mm
Pitch circle diameter (K): 1050mm
Flange thickness (C1): 82mm
Raised face diameter (D1): 980mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£5950.00 each
List Price – Sign in to view Trade Prices 5950.0 GBP
DN900 (36" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1075mm (D)
PCD: 1025mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 48mm (C4)
Diameter of Flat Face (RF): 990mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN1000 (40" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1230mm
Drilling (No. x Bolt Holes x L): 28 x M33 x 36mm
Pitch circle diameter (K): 1160mm
Flange thickness (C4): 70mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN1000 (40" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1255mm
Drilling (No. x Bolt Hole x L): 28 x M39 x 42mm
Pitch circle diameter (K): 1170mm
Flange thickness (C1): 90mm
Raised face diameter (D1): 1080mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£8400.00 each
List Price – Sign in to view Trade Prices 8400.0 GBP
DN1000 (40" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C4)
Diameter of Flat Face (RF): 1090mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN1200 (48" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1455mm
Drilling (No. x Bolt Holes x L): 32 x M36 x 39mm
Pitch circle diameter (K): 1380mm
Flange thickness (C4): 83mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN1200 (48" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1485mm
Drilling (No. x Bolt Hole x L): 32 x M45 x 48mm
Pitch circle diameter (K): 1390mm
Flange thickness (C1): 98mm
Raised face diameter (D1): 1295mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
£11200.00 each
List Price – Sign in to view Trade Prices 11200.0 GBP
DN1200 (48" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C4)
Diameter of Flat Face (RF): 1295mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
