Split Band Hangers

Split Band Hangers – Zinc Plated, Bossed & Unbossed

Integraflow supplies zinc plated split band hangers in both bossed and unbossed designs, pipe clips / clamps specifically sized to suit nominal bore (NB) pipework, providing a secure and cost-effective suspension solution for mechanical and industrial piping systems.

Website List 200 (IGF)
Sort By: Name (A-Z)

Split Band Hangers

DN15 (1/2" NB) M10 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 21.3mm
Boss Connection: M10
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN15 (1/2" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 21.3mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire

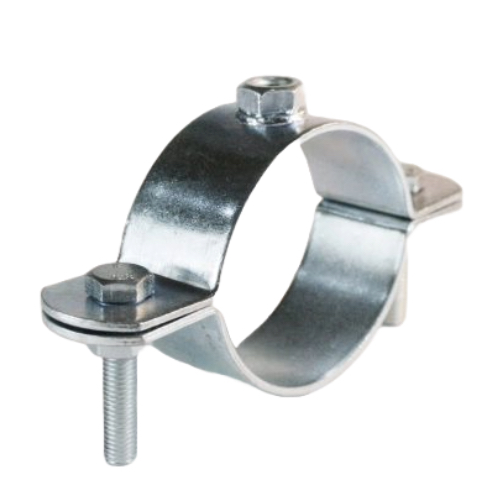

DN20 (3/4" NB) M10 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 26.9mm
Boss Connection: M10
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 (3/4" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 26.9mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 (1" NB) M10 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 33.4mm
Boss Connection: M10
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 (1" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 33.4mm
Band width: 25mm
Band thickness: 3mm
Bolt Size: M6
Material: MS
Finish: Zinc Plated
£ 3.72 3.72 GBP Available to Order Enquire
DN32 (1.1/4" NB) M10 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 42.4mm
Boss Connection: M10
Band width: 30mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 (1.1/4" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 42.4mm
Band width: 30mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 (1.1/2" NB) M10 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 48.3mm
Boss Connection: M10
Band width: 30mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 (1.1/2" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 48.3mm
Band width: 30mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 (2" NB) M10 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 60.3mm
Boss Connection: M10
Band width: 30mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 (2" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 60.3mm
Band width: 30mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
£ 6.72 6.72 GBP Available to Order Enquire
DN65 (2.1/2" NB) M10 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 76.2mm
Boss Connection: M10
Band width: 40mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire

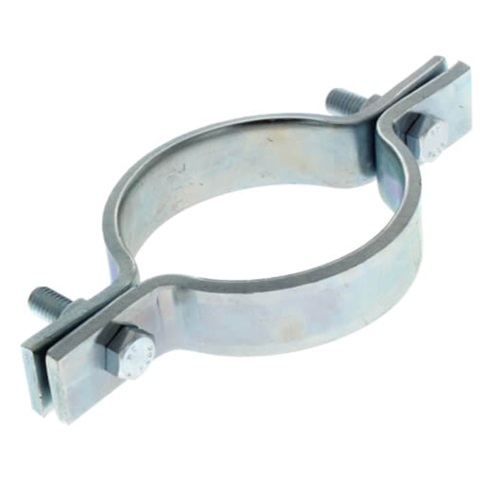

DN65 (2.1/2" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 76.2mm
Band width: 40mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN80 (3" NB) M12 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 88.9mm
Boss Connection: M12
Band width: 40mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN80 (3" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 88.9mm
Band width: 40mm
Band thickness: 3mm
Bolt Size: M10
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN100 (4" NB) M12 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 114.3mm
Boss Connection: M12
Band width: 40mm
Band thickness: 3mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN100 (4" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 114.3mm
Band width: 40mm
Band thickness: 3mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN125 (5" NB) M12 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 139.7mm
Boss Connection: M12
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN125 (5" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 139.7mm
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN150 (6" NB) M12 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 168.3mm
Boss Connection: M12
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated
£ 47.84 47.84 GBP Available to Order Enquire
DN150 (6" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 168.3mm
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN200 (8" NB) M16 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 219.1mm
Boss Connection: M16
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN200 (8" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 219.1mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN250 (10" NB) M16 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 273mm
Boss Connection: M16
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN250 (10" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 273mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated
£ 68.80 68.8 GBP Available to Order Enquire
DN300 (12" NB) M16 BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 323.9mm
Boss Connection: M16
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN300 (12" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 323.9mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
DN350 (14" NB) UN-BOSSED SPLIT BAND HANGER ZP
Suits an outside diameter (OD) of: 355.6mm
Band width: 50mm
Band thickness: 6mm
Bolt Size: M16
Material: MS
Finish: Zinc Plated
Contact us for pricing 0.0 GBP Available to Order Enquire
