304

DN10 (3/8" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 75mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 50mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/8"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN15 (1/2" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 80mm (D)
Flange thickness: 12mm (C2)
Pitch Circle Diameter (PCD): 55mm (K)
Flange hub height: 20mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1/2"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN20 (3/4" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 90mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 65mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 3/4"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN25 (1" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 100mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 75mm (K)
Flange hub height: 24mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1"
Bolt Holes: 4 off M10 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN32 (1 1/4" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 120mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 90mm (K)
Flange hub height: 26mm (H1)
Raised Face Height: 2mm (f1)
BSPP Thread: 1 1/4"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN40 (1 1/2" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 130mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 100mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 1 1/2"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN50 (2" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 140mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 110mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2"
Bolt Holes: 4 off M12 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN65 (2 1/2" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 160mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 130mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 2 1/2"
Bolt Holes: 4 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN80 (3" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 190mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 150mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 3"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire

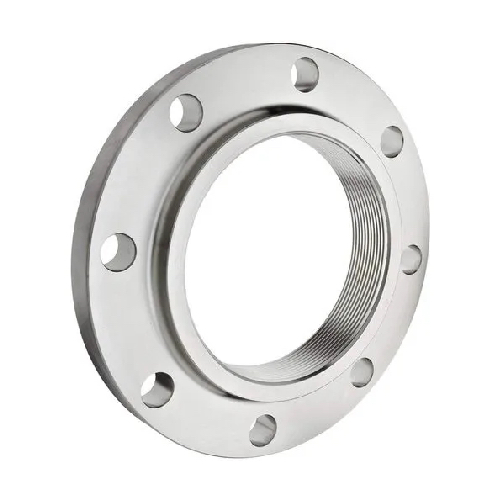

DN100 (4" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 210mm (D)
Flange thickness: 16mm (C2)
Pitch Circle Diameter (PCD): 170mm (K)
Flange hub height: 34mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 4"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN125 (5" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 240mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 200mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
DN150 (6" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP Available to Order Enquire
