Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 88.9mm
Flange thickness (C): 11.1mm
Pitch circle diameter (K): 60.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 35.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 98.5mm
Flange thickness (C): 12.7mm
Pitch circle diameter (K): 69.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 42.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Blanking / Blind Flange
Material: Stainless
Grade: 304
Standards: ASME B16.9 / ASA150
Flange Face: Raised
Bolt Holes: 4 off to suit 1/2"⌀ or M12 Bolts
PCD: 79.4mm
Flange Diameter: 107.9mm
Flange Thickness: 17.5mm
Certification Available: 3.1 BS EN 10204 Material Certification

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 107.9mm
Flange thickness (C): 14.2mm
Pitch circle diameter (K): 79.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 50.8mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 117.3mm
Flange thickness (C): 15.7mm
Pitch circle diameter (K): 88.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 63.5mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 152.4mm
Flange thickness (C): 19.0mm
Pitch circle diameter (K): 120.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 91.9mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 139.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 139.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 190.5mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 152.4mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 127.0mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 228.6mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 190.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 539.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 539.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

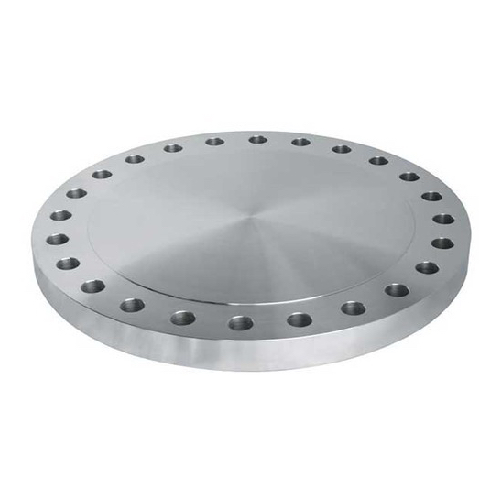

Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced
