Gearbox Operated

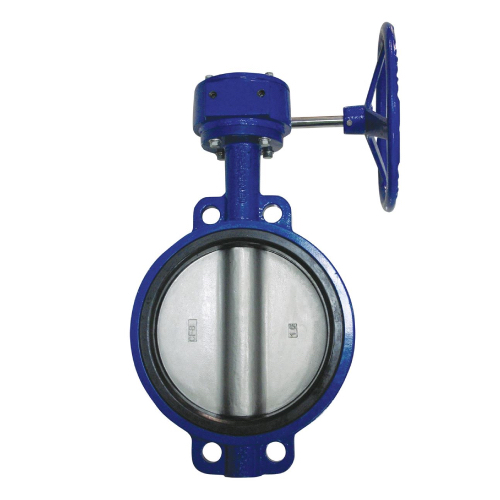

DN350 (14" NB) MULTI FLANGE WAFER PATTERN GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN350 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16, ANSI 150, Table D & Table E

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
£ 2,362.44 2362.44 GBP Available to Order Enquire
DN400 (16" NB) MULTI FLANGE WAFER PATTERN GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN400 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Approval: WRAS Approved
Flange Suitability: PN6/10/16 & ANSI 150

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
£ 3,456.12 3456.12 GBP Available to Order Enquire
DN450 (18" NB) MULTI FLANGE WAFER PATTERN GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN450 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10 or PN16 (must be specified at time of order)

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
£ 6,037.28 6037.28 GBP Available to Order Enquire
DN500 (20" NB) MULTI FLANGE WAFER PATTERN GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN500 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10 or PN16 (must be specified at time of order)

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
£ 8,137.16 8137.16 GBP Available to Order Enquire
DN600 (24" NB) MULTI FLANGE WAFER PATTERN GEARBOX OP. BUTTERFLY VALVE (EPDM/SS) DUCTILE IRON
Suits Flange Size: DN600 (See suitable flange tables below)
Valve Type: Butterfly Valve
Mounting Standard: ISO 5211 Direct Mount
Body Material: Epoxy Coated Ductile Iron
Disc Material: 316 Stainless Steel
Liner Material: EPDM
Operation: Gearbox Handwheel
Pressure Rating: PN10
Temperature Range: -10°C to +120°C (130°C peak)
Certification: Complies with 97/23/CE (PED) Directive CE 1115
Flange Suitability: PN10 or PN16 (must be specified at time of order)

Alternative terminology: Wafer Butterfly Valve, Lever Operated Butterfly Valve, Gear Operated Butterfly, Isolation Valve, Shut-Off Valve

Part of our Isolation and Valves Range
£ 13,499.48 13499.48 GBP Available to Order Enquire
