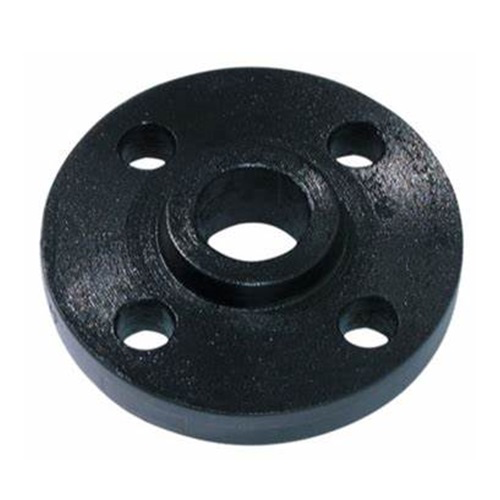

ASA1500

Flange outside diameter: 120.6mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 22.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 130.0mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 35.0mm (Y)
Pitch Circle Diameter (PCD): 88.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 27.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 149.3mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 101.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 34.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 158.7mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 41.1mm (Y)
Pitch Circle Diameter (PCD): 111.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 25.4mm diameter
Bore Diameter: 43.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 177.8mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 123.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 28.4mm diameter
Bore Diameter: 49.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

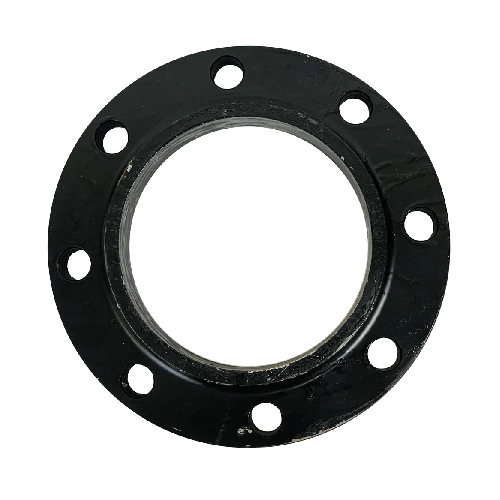

Flange outside diameter: 215.9mm (O)
Flange thickness: 38.1mm (C)
Flange hub height: 57.1mm (Y)
Pitch Circle Diameter (PCD): 165.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 25.4mm diameter
Bore Diameter: 61.9mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 244.3mm (O)
Flange thickness: 41.1mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 190.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 28.4mm diameter
Bore Diameter: 74.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 266.7mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 203.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 31.7mm diameter
Bore Diameter: 90.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 311.1mm (O)
Flange thickness: 53.8mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 35.0mm diameter
Bore Diameter: 116.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 374.6mm (O)
Flange thickness: 73.1mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 292.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 41.1mm diameter
Bore Diameter: 143.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 393.7mm (O)
Flange thickness: 82.5mm (C)
Flange hub height: 66.3mm (Y)
Pitch Circle Diameter (PCD): 317.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 38.1mm diameter
Bore Diameter: 170.6mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 482.6mm (O)
Flange thickness: 91.9mm (C)
Flange hub height: 69.9mm (Y)
Pitch Circle Diameter (PCD): 393.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 44.4mm diameter
Bore Diameter: 221.4mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 584.2mm (O)
Flange thickness: 107.9mm (C)
Flange hub height: 82.6mm (Y)
Pitch Circle Diameter (PCD): 482.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 50.8mm diameter
Bore Diameter: 276.3mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

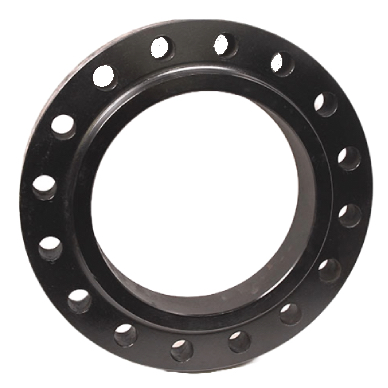

Flange outside diameter: 673.1mm (O)
Flange thickness: 123.9mm (C)
Flange hub height: 85.6mm (Y)
Pitch Circle Diameter (PCD): 571.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 53.8mm diameter
Bore Diameter: 327.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

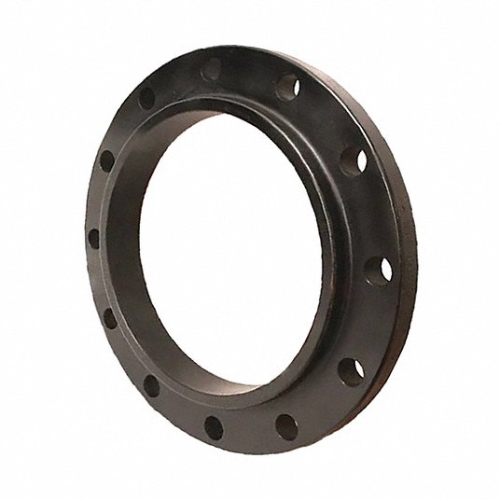

Flange outside diameter: 749.3mm (O)
Flange thickness: 133.3mm (C)
Flange hub height: 93.7mm (Y)
Pitch Circle Diameter (PCD): 635.0mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 60.4mm diameter
Bore Diameter: 359.1mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

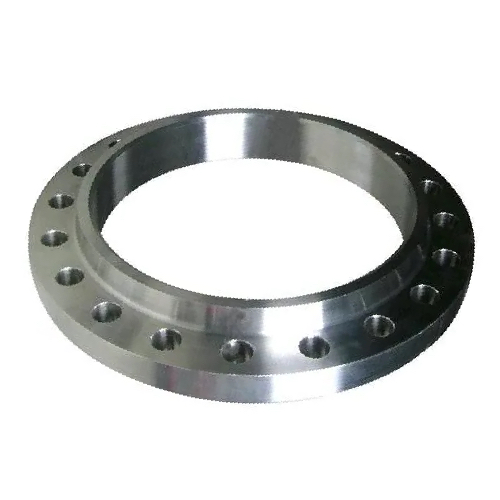

Flange outside diameter: 825.5mm (O)
Flange thickness: 146.0mm (C)
Flange hub height: 99.1mm (Y)
Pitch Circle Diameter (PCD): 704.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 66.5mm diameter
Bore Diameter: 410.4mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 914.4mm (O)
Flange thickness: 162.0mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 774.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 73.1mm diameter
Bore Diameter: 461.7mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 984.2mm (O)
Flange thickness: 177.8mm (C)
Flange hub height: 112.0mm (Y)
Pitch Circle Diameter (PCD): 831.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 79.2mm diameter
Bore Diameter: 513.0mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 1168.4mm (O)
Flange thickness: 203.2mm (C)
Flange hub height: 127.0mm (Y)
Pitch Circle Diameter (PCD): 990.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 91.9mm diameter
Bore Diameter: 615.9mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
