Mild Steel

Outside Diameter (OD): 42 X 27mm
Wall Thickness: 3.56 X 2.87mm
Length: 51mm

Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: 51mm

Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: mm

Outside Diameter (OD): 42 x 33mm
Wall Thickness (Run x Branch): 3.56 x 3.38mm
Centre to End (Run): 48mm
Centre to End (Branch): 48mm
Schedule: STD
Weight: 0.63kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 42 x 33mm
Wall Thickness (Run x Branch): 4.85 x 4.55mm
Centre to End (Run): 48mm
Centre to End (Branch): 48mm
Schedule: XS
Weight: 0.85kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Flange outside diameter: 150mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 110mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 1 1/2"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 150mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 110mm (K)
Flange hub height: 32mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 1 1/2"
Bolt Holes: 4 off M16 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 130mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 100mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 1 1/2"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Black
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 130mm (D)
Flange thickness: 14mm (C2)
Pitch Circle Diameter (PCD): 100mm (K)
Flange hub height: 28mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 1 1/2"
Bolt Holes: 4 off M12 bolts
Material: Mild Steel
Grade: S235 JR
Finish: Galvanised
Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Mild Steel, Carbon Steel, Flat Faced, PN6

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Hub height (X): 69.8mm
Length through hub (A): 48.2mm
Bolt circle diameter (K): 114.3mm
Overall height (Y): 68.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 73.1mm
Number of bolt holes: 4
Bolt hole diameter: 22.3mm
Approx. weight: 3.3kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 48.3mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 3.56kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Plain both ends
Certification: 2.1 Material Certification

Part of our Pipes and Tubes Range

Outside Diameter (OD): 48.3mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 3.56kg
Construction: Welded
Finish: Red Oxide Painted
Ends: Plain Both Ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Pipes and Tubes Range

Outside Diameter (OD): 48.3mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 3.56kg
Construction: Welded
Finish: Self Colour / Black 'as is' Finish
Ends: Plain both ends

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Pipes and Tubes Range

Outside Diameter (OD): 48.3mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 3.6kg
Construction: Welded
Finish: Hot Dip Galvanised
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.




Part of our Pipes and Tubes Range

Outside Diameter (OD): 48.3mm
Wall Thickness (WT): 3.2mm
Material: Mild Steel / Carbon Steel Pipe
Grade: S235
Standards: EN10255 (BS1387), EN10217 (2019) P1 & P2
Standard Length: 6.4 meters
Weight Per Meter: 3.60kg
Construction: Welded
Finish: Red Oxide
Ends: Threaded BSPT both ends with 1x BSP Socket

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler SysteMild Steel / Carbon Steel Pipe.

Alternative terminology:
Malleable, Iron, Threaded, Screwed and Socketed / Coupled, BS1387, Medium Weight, Pipe / Tube.

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.




Part of our Pipes and Tubes Range

Outside diameter (O): 127.0mm
Hub diameter at base (C): 17.5mm
Length through hub (X): 65.0mm
Pitch circle diameter (K): 98.5mm
Raised face diameter (Y): 22.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 73.1mm
Bore diameter (Q): 22.3mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: Galvanised A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 127.0mm
Hub diameter at base (C): 17.5mm
Length through hub (X): 65.0mm
Pitch circle diameter (K): 98.5mm
Raised face diameter (Y): 22.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 73.1mm
Bore diameter (Q): 22.3mm
Hub thickness (T): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA150, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

1.1/2" Ductile Iron Ball Valve – Direct Mount – Flanged ASA150

Face to face: 140mm

Direct mount with lever


Flanged ASA150 connections with ISO 5211 direct mount interface.
Ductile iron body with brass ball and stem.
Fitted with RPTFE seats and NBR O-rings.
Steel lever operated.

Face to face: DIN 3202 F4.
Pressure rating: ASA150.
Temperature range: -10°C to 100°C.

Part of our Isolation and Valves Range

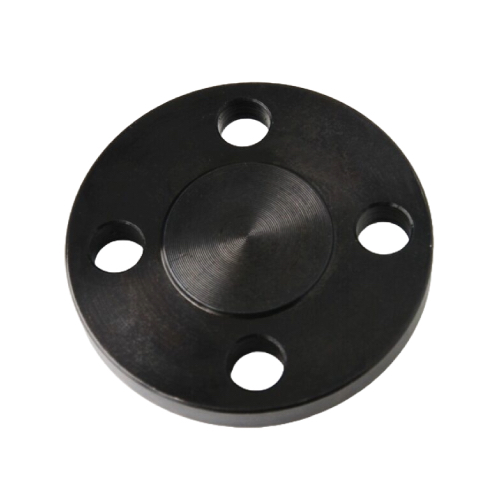

Outside diameter (O): 127.0mm
Flange thickness (C): 17.5mm
Pitch circle diameter (K): 98.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 127.0mm (O)
Flange thickness: 17.5mm (C)
Flange hub height: 22.3mm (Y)
Pitch Circle Diameter (PCD): 98.5mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 15.7mm diameter
Bore Diameter: 49.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 127.0mm
Hub diameter at base (C): 17.5mm
Length through hub (X): 65.0mm
Pitch circle diameter (K): 98.5mm
Raised face diameter (Y): 22.3mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 73.1mm
Bore length (B): 49.5mm
Bore diameter (D): 15.7mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 150
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA150, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 177.8mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 123.9mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 177.8mm (O)
Flange thickness: 31.7mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 123.9mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 28.4mm diameter
Bore Diameter: 49.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 155.4mm
Hub diameter at base (C): 20.5mm
Length through hub (X): 69.8mm
Pitch circle diameter (K): 114.3mm
Raised face diameter (Y): 30.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 73.1mm
Bore diameter (Q): 50.5mm
Hub thickness (T): 22.3mm
Number of bolt holes: 4
Material: A105N Galvanised
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 155.4mm
Hub diameter at base (C): 20.5mm
Length through hub (X): 69.8mm
Pitch circle diameter (K): 114.3mm
Raised face diameter (Y): 30.2mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 73.1mm
Bore diameter (Q): 50.5mm
Hub thickness (T): 22.3mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Threaded: NPT
Type: Screwed flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, ASA300, NPT, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 155.4mm
Flange thickness (C): 20.5mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 155.4mm (O)
Flange thickness: 20.5mm (C)
Flange hub height: 30.2mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 155.0mm
Hub diameter at base (C): 19.0mm
Length through hub (X): 70.0mm
Pitch circle diameter (K): 114.3mm
Raised face diameter (Y): 29mm
Raised face height (RF): 1.5mm
Hub diameter at top (R): 73.1mm
Bore length (B): 49.5mm
Bore diameter (D): 16.0mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 300
Type: Socket weld flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Socket Weld Flange, SW Flange, ASA300, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 155.4mm
Flange thickness (C): 22.3mm
Pitch circle diameter (K): 114.3mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 73.1mm
Number of bolt holes: 4
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 155.4mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 114.3mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 49.5mm (B)
Material: Carbon Steel
Grade: A105N
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Carbon Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 48.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 48.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore
Approval: EN331: 1998+ A1:2015
Gas installations for buildings (CPR)
WRAS Approved

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 48.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 48.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Suits an outside diameter (OD) of: 48.3mm
Construction: 2 Piece
Body Material: Brass
Thread: BSP Parallel Thread Female x Female
Bore: Full Bore

Alternative terminology:
Isolation Valve, Locking Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range

Threaded both sides: 1.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 48.3mm
Overall Length: 70mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 48.3mm
Overall Length: 80mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 48.3mm
Overall Length: 100mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.

Threaded both sides: 1.1/2" BSPT Male x Male
Suits an outside diameter (OD) of: 48.3mm
Overall Length: 120mm
Material: Wrought Iron
Finish: Black Self Colour

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 300 psi, Wrought Iron, EN 10241 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Heavy, Heavyweight, Weldable, Nipple, Equal, Straight, Threaded, Screwed, Fittings.
