Extra Strong (XS)

List 600
Sort By: Name (A-Z)

Extra Strong (XS)

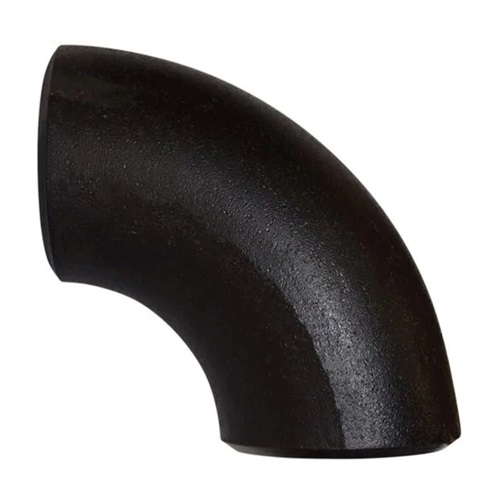

DN350 (14" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 355.6mm
Wall Thickness: 12.7mm
Centre to Face: 553.0mm
Schedule: XS
Weight: 90.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 1,081.36 1081.36 GBP
DN400 (16" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 406.4mm
Wall Thickness: 12.7mm
Centre to Face: 254.0mm
Schedule: XS
Weight: 59.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
£ 983.78 983.78 GBP
DN400 (16" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 406.4mm
Wall Thickness: 12.7mm
Centre to Face: 610.0mm
Schedule: XS
Weight: 118.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 1,862.56 1862.56 GBP
DN450 (18" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 12.7mm
Centre to Face: 286.0mm
Schedule: XS
Weight: 75.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN450 (18" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 457.0mm
Wall Thickness: 12.7mm
Centre to Face: 686.0mm
Schedule: XS
Weight: 150.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 1,395.66 1395.66 GBP
DN500 (20" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 508.0mm
Wall Thickness: 12.7mm
Centre to Face: 318.0mm
Schedule: XS
Weight: 112.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN500 (20" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 508.0mm
Wall Thickness: 12.7mm
Centre to Face: 762.0mm
Schedule: XS
Weight: 190.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 558.8mm
Wall Thickness: 12.7mm
Centre to Face: 343.0mm
Schedule: XS
Weight: 114.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN550 (22" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 558.8mm
Wall Thickness: 12.7mm
Centre to Face: 838.0mm
Schedule: XS
Weight: 230.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN550 X DN250 (22" X 10" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP

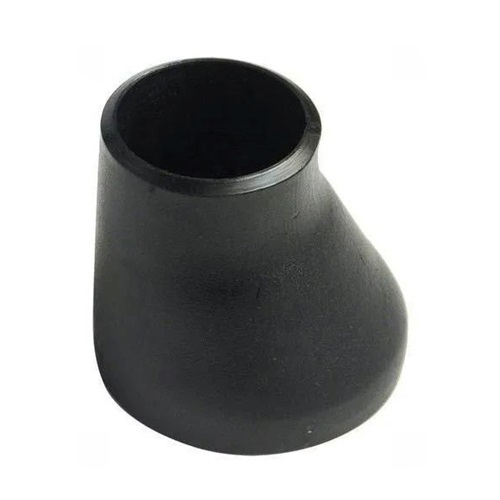

DN550 X DN250 (22" X 10" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN300 (22" X 12" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN300 (22" X 12" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN350 (22" X 14" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN350 (22" X 14" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN400 (22" X 16" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN400 (22" X 16" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN450 (22" X 18" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN450 (22" X 18" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN500 (22" X 20" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN550 X DN500 (22" X 20" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 609.6mm
Wall Thickness: 12.7mm
Centre to Face: 381.0mm
Schedule: XS
Weight: 134.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN600 (24" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 609.6mm
Wall Thickness: 12.7mm
Centre to Face: 914.0mm
Schedule: XS
Weight: 269.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 3,145.73 3145.73 GBP
DN600 X DN250 (24" X 10" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN250 (24" X 10" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN300 (24" X 12" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN300 (24" X 12" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN350 (24" X 14" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN350 (24" X 14" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN400 (24" X 16" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN400 (24" X 16" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN450 (24" X 18" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN450 (24" X 18" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN500 (24" X 20" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN500 (24" X 20" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN550 (24" X 22" NB) SCHEDULE XS A234 WPB CONCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN600 X DN550 (24" X 22" NB) SCHEDULE XS A234 WPB ECCENTRIC REDUCER
Outside Diameter (OD): mm
Wall Thickness: mm
Length: 12.70 X 12.70mm
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 660.4mm
Wall Thickness: 12.7mm
Centre to Face: 406.0mm
Schedule: XS
Weight: 202.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 660.4mm
Wall Thickness: 12.7mm
Centre to Face: 991.0mm
Schedule: XS
Weight: 406.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN700 (28" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW
Outside Diameter (OD): 711.2mm
Wall Thickness: 12.7mm
Centre to Face: 438.0mm
Schedule: XS
Weight: 218.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
