Elbows 90°

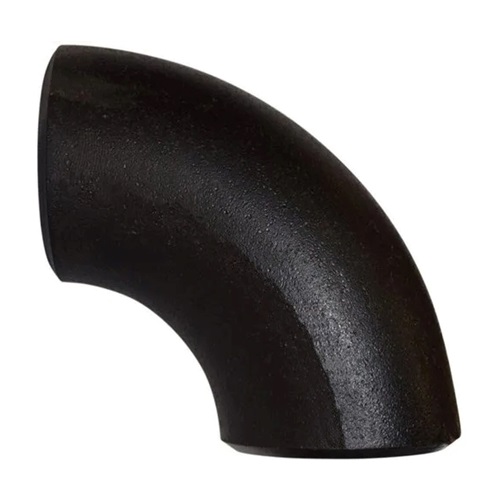

DN400 (16" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 406.4mm
Wall Thickness: 12.7mm
Centre to Face: 610.0mm
Schedule: XS
Weight: 118.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 1,862.56 1862.56 GBP

DN450 (18" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 457.0mm
Wall Thickness: 12.7mm
Centre to Face: 686.0mm
Schedule: XS
Weight: 150.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 1,395.66 1395.66 GBP

DN500 (20" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 508.0mm
Wall Thickness: 12.7mm
Centre to Face: 762.0mm
Schedule: XS
Weight: 190.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN550 (22" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 558.8mm
Wall Thickness: 12.7mm
Centre to Face: 838.0mm
Schedule: XS
Weight: 230.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN600 (24" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 609.6mm
Wall Thickness: 12.7mm
Centre to Face: 914.0mm
Schedule: XS
Weight: 269.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

£ 3,145.73 3145.73 GBP

DN650 (26" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 660.4mm
Wall Thickness: 12.7mm
Centre to Face: 991.0mm
Schedule: XS
Weight: 406.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN700 (28" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 711.2mm
Wall Thickness: 12.7mm
Centre to Face: 1067.0mm
Schedule: XS
Weight: 385.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN750 (30" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 762.0mm
Wall Thickness: 12.7mm
Centre to Face: 1143.0mm
Schedule: XS
Weight: 470.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN800 (32" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 812.8mm
Wall Thickness: 12.7mm
Centre to Face: 1219.0mm
Schedule: XS
Weight: 502.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN900 (36" NB) SCHEDULE XS A234 WPB LONG RADIUS 90 DEG ELBOW

Outside Diameter (OD): 914.4mm
Wall Thickness: 12.7mm
Centre to Face: 1372.0mm
Schedule: XS
Weight: 626.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP
