Elbows 90°

List 600
Sort By: Name (A-Z)

Elbows 90°

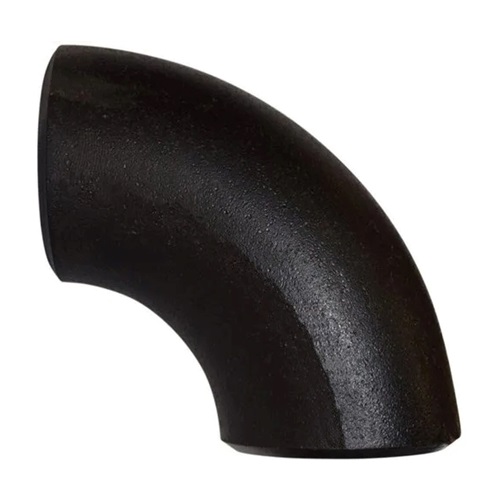

DN600 (24" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 609.6mm
Wall Thickness: 9.52mm
Centre to Face: 914.0mm
Schedule: STD
Weight: 203.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 2,162.65 2162.65 GBP

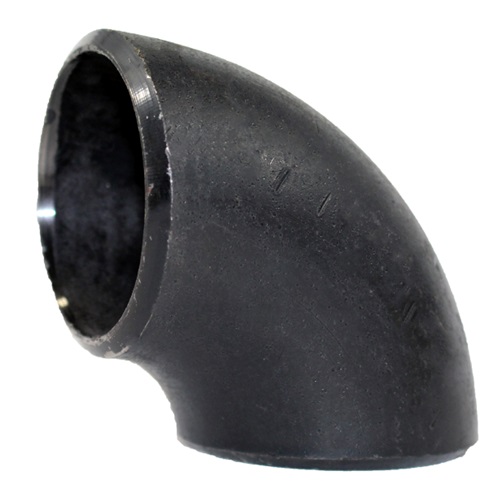

DN650 (26" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 660.4mm
Wall Thickness: 9.52mm
Centre to Face: 660.4mm
Schedule: STD
Weight: 136.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN650 (26" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 660.4mm
Wall Thickness: 9.52mm
Centre to Face: 991.0mm
Schedule: STD
Weight: 306.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN700 (28" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 711.2mm
Wall Thickness: 9.52mm
Centre to Face: 711.2mm
Schedule: STD
Weight: 206.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN700 (28" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 711.2mm
Wall Thickness: 9.52mm
Centre to Face: 1067.0mm
Schedule: STD
Weight: 308.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN750 (30" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 762.0mm
Wall Thickness: 9.52mm
Centre to Face: 762.0mm
Schedule: STD
Weight: 217.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN750 (30" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 762.0mm
Wall Thickness: 9.52mm
Centre to Face: 1143.0mm
Schedule: STD
Weight: 326.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN800 (32" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 812.8mm
Wall Thickness: 9.52mm
Centre to Face: 812.8mm
Schedule: STD
Weight: 313.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN800 (32" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 812.8mm
Wall Thickness: 9.52mm
Centre to Face: 1219.0mm
Schedule: STD
Weight: 386.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN900 (36" NB) SCHEDULE 40 / STD A234 WPB SHORT RADIUS 90 DEG ELBOW
Outside Diameter (OD): 914.4mm
Wall Thickness: 9.52mm
Centre to Face: 914.4mm
Schedule: STD
Weight: 366.8kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN900 (36" NB) SCHEDULE STD A234 WPB LONG RADIUS 90 DEG ELBOW
Outside Diameter (OD): 914.4mm
Wall Thickness: 9.52mm
Centre to Face: 1372.0mm
Schedule: STD
Weight: 426.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
