EN1092-1 Type 05 Blind Flanges – PN6 to PN40, S235JR

Integraflow supplies EN1092-1 Type 05 blind flanges in S235JR carbon steel, covering PN6, PN10, PN16, PN25, and PN40 pressure ratings, sourced from both European and Far Eastern mills, and supplied with BS EN 10204 2.1 certification, ideal for securely sealing pipework ends in water, air, gas, and general industrial systems.

List 600
Sort By: Name (A-Z)

EN1092-5

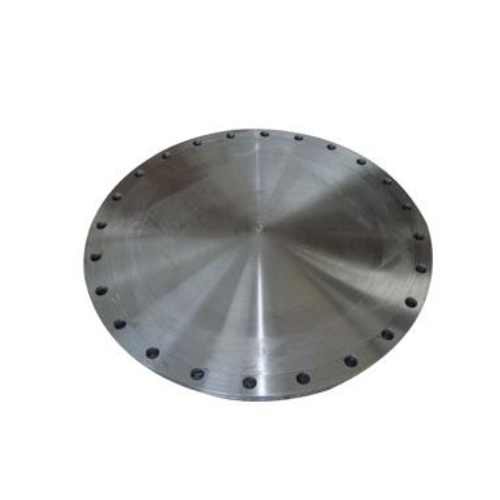

DN1000 (40" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1255mm
Drilling (No. x Bolt Hole x L): 28 x M39 x 42mm
Pitch circle diameter (K): 1170mm
Flange thickness (C1): 90mm
Raised face diameter (D1): 1080mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 8,400.00 8400.0 GBP
DN1000 (40" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C4)
Diameter of Flat Face (RF): 1090mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN1200 (48" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1455mm
Drilling (No. x Bolt Holes x L): 32 x M36 x 39mm
Pitch circle diameter (K): 1380mm
Flange thickness (C4): 83mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP

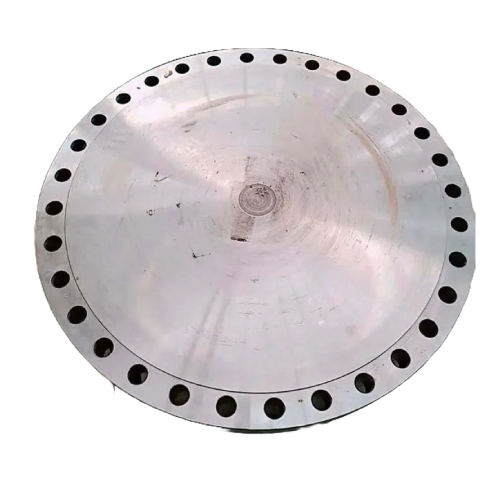

DN1200 (48" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1485mm
Drilling (No. x Bolt Hole x L): 32 x M45 x 48mm
Pitch circle diameter (K): 1390mm
Flange thickness (C1): 98mm
Raised face diameter (D1): 1295mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 11,200.00 11200.0 GBP
DN1200 (48" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C4)
Diameter of Flat Face (RF): 1295mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
