EN1092-1

EN1092-1 Flanges – S235JR, PN6 to PN40

 Integraflow supplies a comprehensive range of BS EN1092-1 (formerly BS4504) Plate and Bossed flanges in S235JR carbon steel, covering PN6, PN10, PN16, PN25, and PN40 pressure ratings in sizes from ½” to 48” (15mm to 1200mm), with in-house custom machining for taper bores, special drilling/tapping, and bolt hole opening/threading to meet bespoke system requirements. EN1092-1 PN Flanged made from A105N available on special request.

List 600
Sort By: Name (A-Z)

EN1092-1

DN150 PN25/PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 300mm (D)
PCD: 250mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN6 FF SLIP ON PLATE FLANGE CS S235 JR
Suits an outside diameter (OD) of: 219mm
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Bolt Holes: 8 off to suit M16 Bolts
PCD: 280mm
Flange Diameter: 320mm
Flange Thickness: 19mm
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
£ 70.70 70.7 GBP
DN200 (8" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN200 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

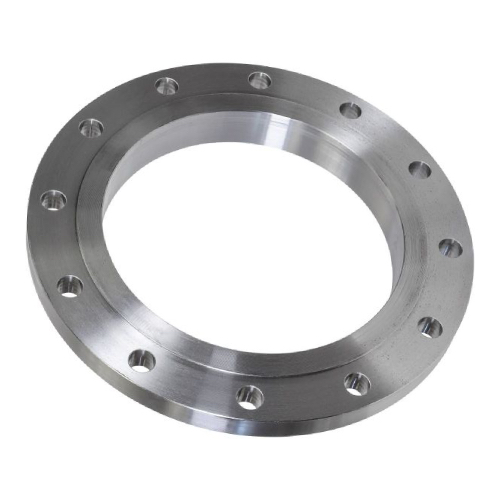

DN200 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
£ 72.66 72.66 GBP
DN200 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN200 PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN250 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 395mm (D)
PCD: 350mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
£ 91.98 91.98 GBP
DN250 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 405mm (D)
PCD: 355mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 29mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
£ 112.00 112.0 GBP
DN250 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 425mm (D)
PCD: 370mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN250 PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 450mm (D)
PCD: 385mm (K)
Bolt Holes: 12 off 33mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN300 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 445mm (D)
PCD: 400mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN300 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 460mm (D)
PCD: 410mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
£ 147.00 147.0 GBP
DN300 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 485mm (D)
PCD: 430mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN300 PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 327.5mm (B1)
Flange overall diameter: 515mm (D)
PCD: 450mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 52mm (C1)
Diameter of Raised Face (RF): 365mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN350 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 505mm (D)
PCD: 460mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

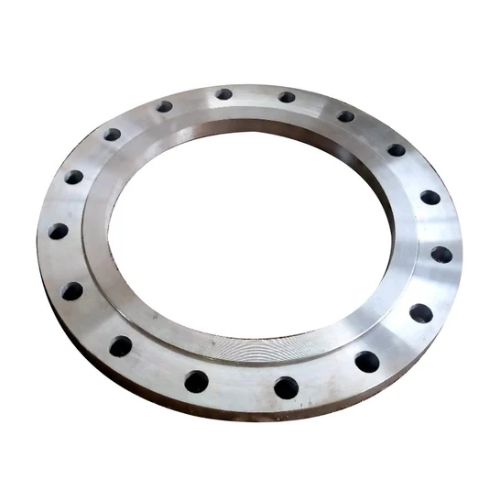

DN350 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 520mm (D)
PCD: 470mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 35mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
£ 259.00 259.0 GBP
DN350 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 555mm (D)
PCD: 490mm (K)
Bolt Holes: 16 off 33mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN350 PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 359.5mm (B1)
Flange overall diameter: 580mm (D)
PCD: 510mm (K)
Bolt Holes: 16 off 36mm diameter (L)
Flange Thickness: 58mm (C1)
Diameter of Raised Face (RF): 415mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN400 (16" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 540mm (D)
PCD: 495mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN400 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 565mm (D)
PCD: 515mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN400 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 580mm (D)
PCD: 525mm (K)
Bolt Holes: 16 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
£ 292.60 292.6 GBP
DN400 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 620mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 36mm diameter (L)
Flange Thickness: 48mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN400 PN40 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 411.0mm (B1)
Flange overall diameter: 660mm (D)
PCD: 585mm (K)
Bolt Holes: 16 off 39mm diameter (L)
Flange Thickness: 65mm (C1)
Diameter of Raised Face (RF): 465mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 595mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN450 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 615mm (D)
PCD: 565mm (K)
Bolt Holes: 16 off 26mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
£ 315.49 315.49 GBP
DN450 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 640mm (D)
PCD: 585mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
£ 385.00 385.0 GBP
DN450 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 462.0mm (B1)
Flange overall diameter: 670mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 54mm (C1)
Diameter of Raised Face (RF): 520mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 645mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN500 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 670mm (D)
PCD: 620mm (K)
Bolt Holes: 20 off 30mm diameter (L)
Flange Thickness: 38mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP

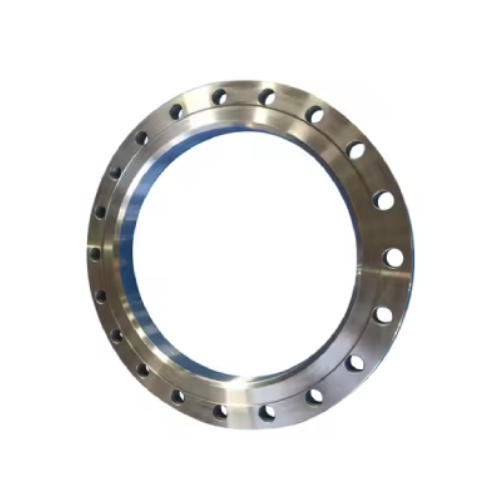

DN500 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 715mm (D)
PCD: 650mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
£ 595.00 595.0 GBP
DN500 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 730mm (D)
PCD: 660mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 58mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
DN600 PN10 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 780mm (D)
PCD: 725mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
£ 509.95 509.95 GBP
DN600 PN16 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 840mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 55mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
£ 895.30 895.3 GBP
DN600 PN25 RF SLIP ON PLATE FLANGE CS S235JR
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 845mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 39mm diameter (L)
Flange Thickness: 68mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Flat Faced, FFSO
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN6 RF SLIP ON PLATE FLANGE CS S235 JR
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 860mm (D)
PCD: 810mm (K)
Bolt Holes: 24 off 26mm diameter (L)
Flange Thickness: 40mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Mild Steel, Carbon Steel, Raised Faced, RFSO
Contact us for pricing 0.0 GBP
