Stainless Steel Nominal Bore Pipework – 304 & 316 Systems

Integraflow supplies complete nominal bore stainless steel pipework systems in 304 and 316/L grades, including pipe, fittings, flanges, valves, and supports in welded, seamless, threaded, and socket weld configurations, ideal for corrosive, and industrial environments across food, pharmaceutical, chemical, and mechanical sectors.

List 600
Sort By: Name (A-Z)

Nominal Bore

DN65 (2.1/2" NB) NPT SCH80 PIPE NIPPLE T.B.E (4" LONG) SS 316
Thread: 2.1/2" NPT
Suits an outside diameter (OD) of: 73mm
Material: Forged Stainless Steel
Grade: 304
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Pipe Nipple, TBE, , Stainless Steel
£ 377.44 377.44 GBP
DN65 (2.1/2" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Flange OD (D): 185mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 110mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 120.61 120.61 GBP
DN65 (2.1/2" NB) PN10 / PN16 RF BLIND FLANGE SS 316
Flange OD (D): 185mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 145mm
Flange thickness (C1): 20mm
Raised face diameter (D1): 110mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 178.29 178.29 GBP
DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 73/76.2mm
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
£ 89.46 89.46 GBP
DN65 (2.1/2" NB) PN16 (8 HOLE) RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 73/76.2mm
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 20mm
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology:
Slip on, Weld on, Plate Flange, RFSO, Stainless Steel, Steel

Part of our Flanges and Flanged Connections Range
£ 98.21 98.21 GBP

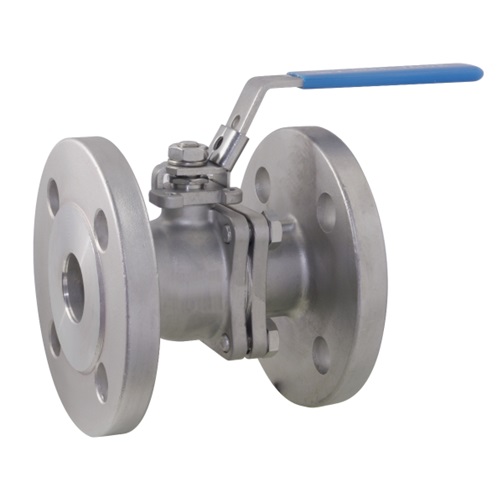

DN65 (2.1/2" NB) PN16 FLANGED 2PC LEVER OP. BALL VALVE LEVER OP SS 316
Flanged both ends: 2.1/2" PN16
Suits an outside diameter (OD) of: 73mm
PCD: 145mm Ø (PN16)
Face to face: 170mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range
£ 1,452.71 1452.71 GBP
DN65 (2.1/2" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 110mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 73.15 73.15 GBP
DN65 (2.1/2" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C4)
Diameter of Raised Face (RF): 110mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 107.45 107.45 GBP
DN65 (2.1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 77.5mm (B1)
Flange overall diameter: 160mm (D)
PCD: 130mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 110mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) SCHEDULE 10S ASA150 WELD NECK FLANGE SS 304
Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Hub length (X): 90.4mm
Neck height (A): 73.1mm
Pitch circle diameter (K): 139.7mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
£ 262.64 262.64 GBP

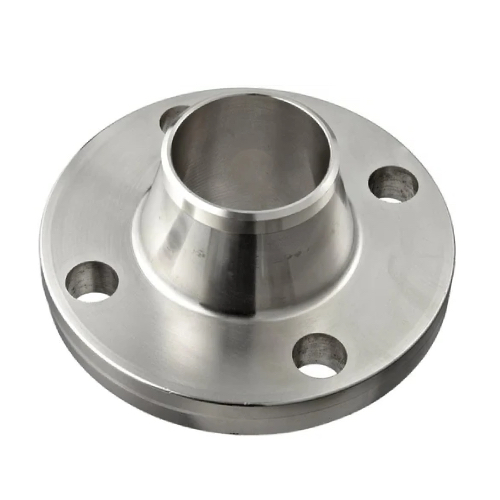

DN65 (2.1/2" NB) SCHEDULE 10S ASA150 WELD NECK FLANGE SS 316
Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Hub length (X): 90.4mm
Neck height (A): 73.1mm
Pitch circle diameter (K): 139.7mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
£ 332.15 332.15 GBP
DN65 (2.1/2" NB) SCHEDULE 10s STAINLESS SEAMLESS PIPE 304
Outside Diameter (OD): 73mm
Wall Thickness (WT): 3.05mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 5.34kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
Contact us for pricing 0.0 GBP

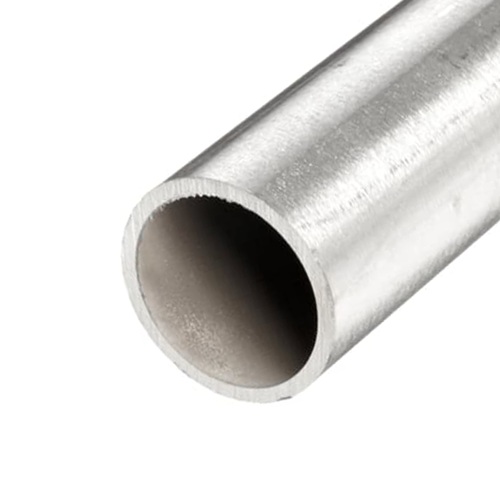

DN65 (2.1/2" NB) SCHEDULE 10s STAINLESS SEAMLESS PIPE 316
Outside Diameter (OD): 73mm
Wall Thickness (WT): 3.05mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 5.34kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) SCHEDULE 10s STAINLESS WELDED PIPE 304
Outside Diameter (OD): 73mm
Wall Thickness (WT): 3.05mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 6 meter Random
Weight Per Meter: 5.34kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
£ 134.26 134.26 GBP
DN65 (2.1/2" NB) SCHEDULE 10s STAINLESS WELDED PIPE 316
Outside Diameter (OD): 73mm
Wall Thickness (WT): 3.05mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 5.34kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
£ 216.09 216.09 GBP
DN65 (2.1/2" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 304
Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Hub length (X): 90.4mm
Neck height (A): 73.1mm
Pitch circle diameter (K): 139.7mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
£ 278.25 278.25 GBP
DN65 (2.1/2" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 316
Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Hub length (X): 90.4mm
Neck height (A): 73.1mm
Pitch circle diameter (K): 139.7mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
£ 279.16 279.16 GBP
DN65 (2.1/2" NB) SCHEDULE 40s STAINLESS SEAMLESS PIPE 304
Outside Diameter (OD): 73mm
Wall Thickness (WT): 5.16mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 8.77
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range
Contact us for pricing 0.0 GBP

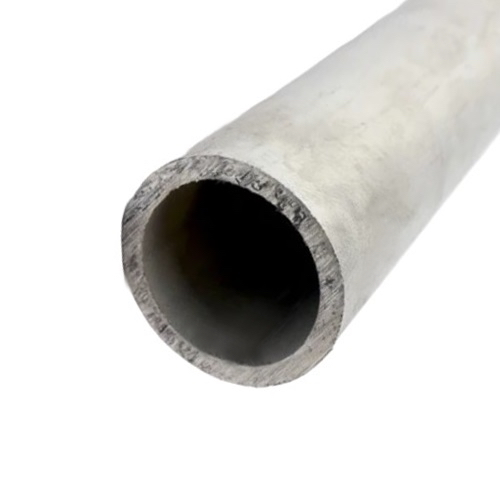

DN65 (2.1/2" NB) SCHEDULE 40s STAINLESS SEAMLESS PIPE 316
Outside Diameter (OD): 73mm
Wall Thickness (WT): 5.16mm
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 8.77kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
£ 462.77 462.77 GBP
DN65 (2.1/2" NB) SCHEDULE 40s STAINLESS WELDED PIPE 304
Outside Diameter (OD): 73mm
Wall Thickness (WT): 5.16mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 8.77kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
£ 218.89 218.89 GBP
DN65 (2.1/2" NB) SCHEDULE 40s STAINLESS WELDED PIPE 316
Outside Diameter (OD): 73mm
Wall Thickness (WT): 5.16mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 8.77
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range
£ 354.76 354.76 GBP
DN65 (2.1/2" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 304
Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Hub length (X): 90.4mm
Neck height (A): 73.1mm
Pitch circle diameter (K): 139.7mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 316
Outside diameter (O): 177.8mm
Flange thickness (C): 22.3mm
Hub length (X): 90.4mm
Neck height (A): 73.1mm
Pitch circle diameter (K): 139.7mm
Hub base diameter (Y): 69.8mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 104.6mm
Number of bolt holes: 4
Material: Stainless Steel 316
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) SCHEDULE 80s STAINLESS SEAMLESS PIPE 304
Outside Diameter (OD): 73mm
Wall Thickness (WT): 7.01mm (Sch80)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 11.58kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) SCHEDULE 80s STAINLESS SEAMLESS PIPE 316
Outside Diameter (OD): 73mm
Wall Thickness (WT): 7.01mm (Sch80)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 11.58kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
£ 687.05 687.05 GBP

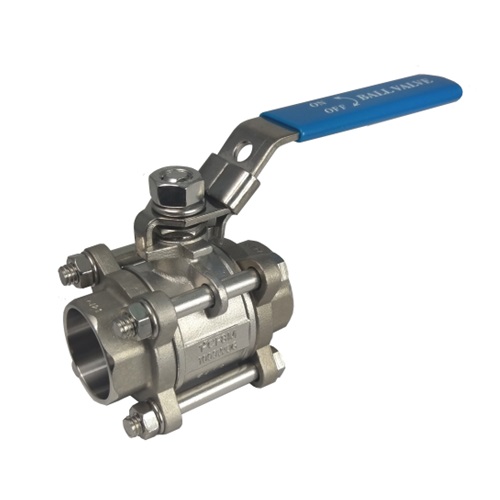

DN65 (2.1/2" NB) SOCKET WELD 3PC FB BALL VALVE LEVER OP. SS 316
Threaded: 2.1/2" NB Socket Weld (SW)
Suits an outside diameter (OD) of: 73mm
Construction: 3 Piece
Body Material: 316 Stainless
Connection: Socket Weld
Bore: Full Bore
Internals: PTFE Seals

Applications:
Water, Oil & Gas* - Heating and Plumbing, HVAC, Gasses* and Compressed Air, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems, Food & Beverage.

Alternative terminology:
Isolation Valve, Lever Valve, Handle Valve, Shut off Valve, Quarter 1/4 Turn

Part of our Isolation and Valves Range
£ 660.80 660.8 GBP
DN65 (2.1/2" NB) SW 150# ELBOW 45° SS 316
Thread: 2.1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 73mm
Material: Stainless
Grade: 316
Elbow Angle: 45° (Degree)

Standards:
Nominal Bore, Socket Weld, Elbow, 45°, 45 Deg, Weldable, Low Pressure, 150 psi
£ 109.69 109.69 GBP
DN65 (2.1/2" NB) SW 150# ELBOW 90° SS 316
Thread: 2.1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 73mm
Material: Stainless
Grade: 316
Elbow Angle: 90° (Degree)

Standards:
Nominal Bore, Socket Weld, Elbow, 90°, 90 Deg, Weldable, Low Pressure, 150 psi
£ 133.91 133.91 GBP
DN65 (2.1/2" NB) SW 150# (FXF) CONE SEAT UNION SS 316
Thread: 2.1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 73mm
Material: Stainless
Grade: 316
£ 197.05 197.05 GBP
DN65 (2.1/2" NB) SW 150# EQUAL FULL SOCKET SS 316
Connection: 2.1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 73mm
Material: Stainless
Grade: 316
£ 71.05 71.05 GBP
DN65 (2.1/2" NB) SW 150# ROUND CAP SS 316
Thread: 2.1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 73mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, SW (Socket Weld), Weldable, Low Pressure, 150 psi

Alternative terminology:
SW Cap, Termination, Blanking Cap, Cap End
£ 69.44 69.44 GBP
DN65 (2.1/2" NB) SW 3000# EQUAL COUPLING SS 316
Connection: 2.1/2" SW
Suits an outside diameter (OD) of: 73mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Coupling, Socket, Straight, Connector, Stainless Steel
£ 448.49 448.49 GBP
DN65 (2.1/2" NB) U-BOLT C.W NUTS SS 304 (A2)
Suits an outside diameter (OD) of: 76.2mm
Material: Stainless Steel 304 (A2)
Thread: M10
Comes with 2x Nuts
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) U-BOLT C.W NUTS SS 316 (A4)
Suits an outside diameter (OD) of: 76.2mm
Material: Stainless Steel 316 (A4)
Thread: M10
Comes with 2x Nuts
Contact us for pricing 0.0 GBP
DN65 (2.1/2" NB) UN-BOSSED SPLIT BAND HANGER SS 304
Suits an outside diameter (OD) of: 76.2mm
Band width: 40mm
Band thickness: 3mm
Bolt Size: M10
Material: Stainless Steel
Grade: 304
Contact us for pricing 0.0 GBP
DN65 (2½" NB) BSP 150# EQUAL TEE SS 316
Thread: 2½" BSPP Female x Female x Female
Suits an outside diameter of 76.1mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Equal, Tee, Tee Piece, Screwed, Low Pressure, 150 psi
£ 125.02 125.02 GBP
DN65 (2½" NB) BSPT 3000# FXF ELBOW 90° SS 316
Thread: 2½" BSPT Female
Suits an outside diameter (OD) of: 73mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Elbow, FXF, 90°, 90 Degree, Stainless Steel
Contact us for pricing 0.0 GBP
DN65 (2½" NB) NPT 150# EQUAL TEE SS 316
Thread: 2½" NPT Female x Female x Female
Suits an outside diameter of 76.1mm

Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Equal, Tee, Tee Piece, Screwed, Low Pressure, 150 psi
£ 202.93 202.93 GBP
DN65 (2½" NB) SCHEDULE 10S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to End: 76.2mm
Schedule: 10S
Weight: 2.36kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
