Stainless Steel Nominal Bore Pipework – 304 & 316 Systems

Integraflow supplies complete nominal bore stainless steel pipework systems in 304 and 316/L grades, including pipe, fittings, flanges, valves, and supports in welded, seamless, threaded, and socket weld configurations, ideal for corrosive, and industrial environments across food, pharmaceutical, chemical, and mechanical sectors.

List 600
Sort By: Name (A-Z)

Nominal Bore

DN100 X DN80 (4" X 3" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 114 X 89mm
Wall Thickness: 6.02 X 5.49mm
Length: 102mm
£ 118.02 118.02 GBP
DN100 X DN80 (4" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 114 X 89mm
Wall Thickness: 6.02 X 5.49mm
Length: 102mm
£ 117.32 117.32 GBP
DN100 X DN80 (4" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 114 X 89mm
Wall Thickness: 6.02 X 5.49mm
Length: 102mm
£ 152.04 152.04 GBP
DN100 x DN80 (4 x 3" NB) SCHEDULE 10S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 3.05 x 3.05mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 10S
Weight: 2.15kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN100 x DN80 (4 x 3" NB) SCHEDULE 10S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 3.05 x 3.05mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 10S
Weight: 2.15kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN100 x DN80 (4 x 3" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 304
Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 3.05 x 3.05mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 10S
Weight: 2.15kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 119.77 119.77 GBP
DN100 x DN80 (4 x 3" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316
Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 3.05 x 3.05mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 10S
Weight: 2.15kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 222.46 222.46 GBP
DN100 x DN80 (4 x 3" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 6.02 x 5.49mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 40s
Weight: 6.5kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN100 x DN80 (4 x 3" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 6.02 x 5.49mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 40s
Weight: 6.5kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN100 x DN80 (4 x 3" NB) SCHEDULE 40S A403 WELDED REDUCING TEE SS 304
Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 6.02 x 5.49mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 40s
Weight: 6.5kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 162.19 162.19 GBP
DN100 x DN80 (4 x 3" NB) SCHEDULE 40S A403 WELDED REDUCING TEE SS 316
Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 6.02 x 5.49mm
Centre to End (Run): 105mm
Centre to End (Branch): 98mm
Schedule: 40s
Weight: 6.5kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 406.77 406.77 GBP

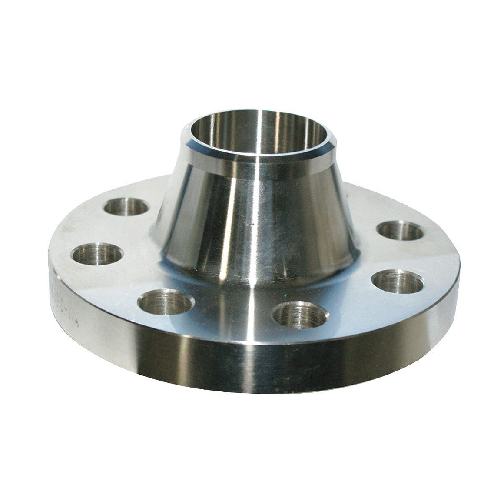

DN125 (5 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Hub height (X): 177.8mm
Length through hub (A): 141.2mm
Bolt circle diameter (K): 234.9mm
Overall height (Y): 98.5mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 15.2kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Pitch circle diameter (K): 215.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£ 475.02 475.02 GBP
DN125 (5" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 254.0mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 36.5mm (Y)
Pitch Circle Diameter (PCD): 215.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 254.0mm (O)
Flange thickness: 23.8mm (C)
Flange hub height: 36.5mm (Y)
Pitch Circle Diameter (PCD): 215.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 374.6mm (O)
Flange thickness: 73.1mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 292.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 41.1mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 374.6mm (O)
Flange thickness: 73.1mm (C)
Flange hub height: 63.5mm (Y)
Pitch Circle Diameter (PCD): 292.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 41.1mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 279.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 234.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£ 816.34 816.34 GBP
DN125 (5" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 279.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 50.8mm (Y)
Pitch Circle Diameter (PCD): 234.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 279.4mm (O)
Flange thickness: 35.0mm (C)
Flange hub height: 50.8mm (Y)
Pitch Circle Diameter (PCD): 234.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 330.2mm (O)
Flange thickness: 44.4mm (C)
Flange hub height: 60.4mm (Y)
Pitch Circle Diameter (PCD): 266.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 28.4mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 330.2mm (O)
Flange thickness: 44.4mm (C)
Flange hub height: 60.4mm (Y)
Pitch Circle Diameter (PCD): 266.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 8 off 28.4mm diameter
Bore Diameter: 143.7mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) NPT 150# BARREL NIPPLE SS 316
Thread: 5" NPT Male x Male
Suits an outside diameter (OD) of: 141.3mm
Material: Stainless
Grade: 316
£ 353.92 353.92 GBP
DN125 (5" NB) PN10 / PN16 RF BLIND FLANGE SS 304
Flange OD (D): 250mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 210mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 178mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 293.09 293.09 GBP
DN125 (5" NB) PN10 / PN16 RF BLIND FLANGE SS 316
Flange OD (D): 250mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 210mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 178mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 384.30 384.3 GBP
DN125 (5" NB) PN16 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 250mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 210mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN16 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 250mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 210mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C4)
Diameter of Raised Face (RF): 178mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 277.20 277.2 GBP
DN125 (5" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C4)
Diameter of Raised Face (RF): 178mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 311.99 311.99 GBP
DN125 (5" NB) PN6 RF BSPP THREADED FLANGE SS 304
Flange outside diameter: 240mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 200mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

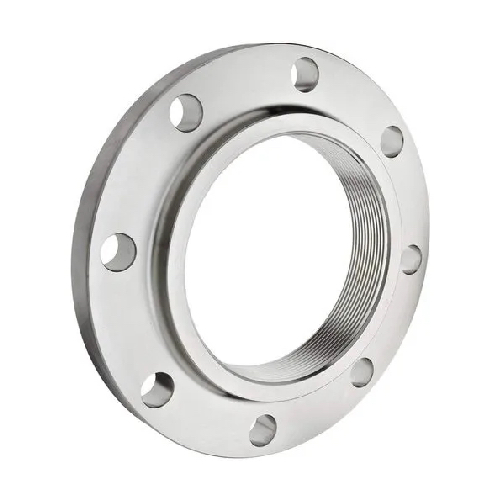

DN125 (5" NB) PN6 RF BSPP THREADED FLANGE SS 316
Flange outside diameter: 240mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 200mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 (5" NB) SCHEDULE 10S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to End: 123.8mm
Schedule: 10S
Weight: 8.98kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN125 (5" NB) SCHEDULE 10S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to End: 123.8mm
Schedule: 10S
Weight: 8.98kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN125 (5" NB) SCHEDULE 10S A403 SEAMLESS LONG RADIUS 45 DEG ELBOW SS 304
Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm

Schedule: A403 Seamless
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN125 (5" NB) SCHEDULE 10S A403 SEAMLESS LONG RADIUS 45 DEG ELBOW SS 316
Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm

Schedule: A403 Seamless
Weight: 4.42kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN125 (5" NB) SCHEDULE 10S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 141.3mm
Wall Thickness: 3.40mm
Centre to Face: 190.0mm
Schedule: A403 Seamless
Weight: 6.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
