Nominal Bore

Stainless Steel Nominal Bore Pipework – 304 & 316 Systems

Integraflow supplies complete nominal bore stainless steel pipework systems in 304 and 316/L grades, including pipe, fittings, flanges, valves, and supports in welded, seamless, threaded, and socket weld configurations, ideal for corrosive, and industrial environments across food, pharmaceutical, chemical, and mechanical sectors.

List 600
Sort By: Name (A-Z)

Nominal Bore

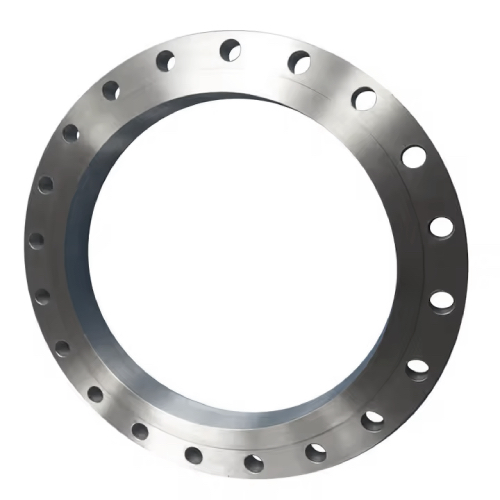

DN500 PN25 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 730mm (D)
PCD: 660mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 58mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN25 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 513.5mm (B1)
Flange overall diameter: 730mm (D)
PCD: 660mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 58mm (C1)
Diameter of Raised Face (RF): 570mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN40 RF BLIND FLANGE SS 304
Flange OD (D): 755mm
Drilling (No. x Bolt Holes x L): 20 x M45 x 42mm
Pitch circle diameter (K): 670mm
Flange thickness (C4): 57mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN500 PN40 RF BLIND FLANGE SS 316
Flange OD (D): 755mm
Drilling (No. x Bolt Holes x L): 20 x M45 x 42mm
Pitch circle diameter (K): 670mm
Flange thickness (C4): 57mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 812.8mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 82.5mm (Y)
Pitch Circle Diameter (PCD): 749.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 35.0mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 812.8mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 82.5mm (Y)
Pitch Circle Diameter (PCD): 749.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 20 off 35.0mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 1168.4mm (O)
Flange thickness: 203.2mm (C)
Flange hub height: 127.0mm (Y)
Pitch Circle Diameter (PCD): 990.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 91.9mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

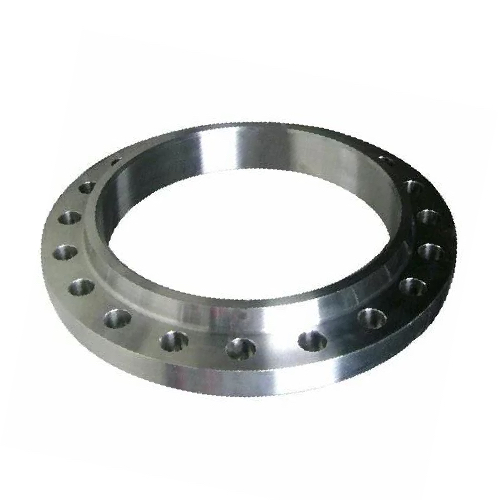

DN600 (24" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 1168.4mm (O)
Flange thickness: 203.2mm (C)
Flange hub height: 127.0mm (Y)
Pitch Circle Diameter (PCD): 990.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 91.9mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 914.4mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 812.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 41.1mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 914.4mm (O)
Flange thickness: 69.8mm (C)
Flange hub height: 106.4mm (Y)
Pitch Circle Diameter (PCD): 812.8mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 24 off 41.1mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 939.8mm (O)
Flange thickness: 101.6mm (C)
Flange hub height: 139.7mm (Y)
Pitch Circle Diameter (PCD): 838.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 50.8mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 939.8mm (O)
Flange thickness: 101.6mm (C)
Flange hub height: 139.7mm (Y)
Pitch Circle Diameter (PCD): 838.2mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 24 off 50.8mm diameter
Bore Diameter: 615.9mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN10 RF BLIND FLANGE SS 304
Flange OD (D): 780mm
Drilling (No. x Bolt Holes x L): 20 x M27 x 30mm
Pitch circle diameter (K): 725mm
Flange thickness (C4): 42mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN10 RF BLIND FLANGE SS 316
Flange OD (D): 780mm
Drilling (No. x Bolt Holes x L): 20 x M27 x 30mm
Pitch circle diameter (K): 725mm
Flange thickness (C4): 42mm
Material: 316
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

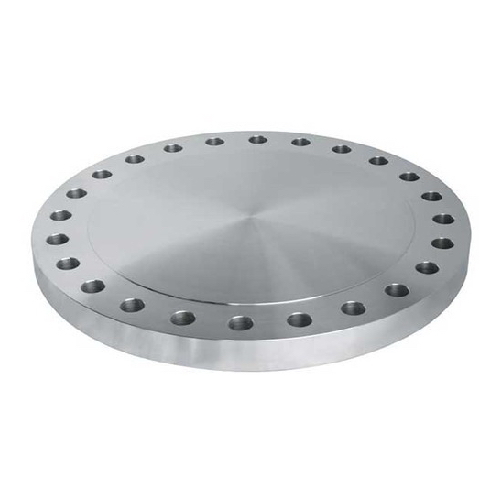

DN600 (24" NB) PN16 RF BLIND FLANGE SS 304
Flange OD (D): 840mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 55mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN16 RF BLIND FLANGE SS 316
Flange OD (D): 840mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 55mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN25 RF BLIND FLANGE SS 304
Flange OD (D): 845mm
Drilling (No. x Bolt Hole x L): 20 x M36 x 39mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 68mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN25 RF BLIND FLANGE SS 316
Flange OD (D): 845mm
Drilling (No. x Bolt Hole x L): 20 x M36 x 39mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 68mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Raised Face (RF): 675mm (D1)
Height of Raised Face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Raised Face (RF): 675mm (D1)
Height of Raised Face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN10 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 780mm (D)
PCD: 725mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 780mm (D)
PCD: 725mm (K)
Bolt Holes: 20 off 33mm diameter (L)
Flange Thickness: 46mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 840mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 55mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 840mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 36mm diameter (L)
Flange Thickness: 55mm (C1)
Diameter of Raised Face (RF): 675mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 4,623.85 4623.85 GBP
DN600 PN25 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 845mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 39mm diameter (L)
Flange Thickness: 68mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN25 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 616.5mm (B1)
Flange overall diameter: 845mm (D)
PCD: 770mm (K)
Bolt Holes: 20 off 39mm diameter (L)
Flange Thickness: 68mm (C1)
Diameter of Raised Face (RF): 670mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN40 RF BLIND FLANGE SS 304
Flange OD (D): 890mm
Drilling (No. x Bolt Holes x L): 20 x M36 x 48mm
Pitch circle diameter (K): 795mm
Flange thickness (C4): 72mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN600 PN40 RF BLIND FLANGE SS 316
Flange OD (D): 890mm
Drilling (No. x Bolt Holes x L): 20 x M36 x 48mm
Pitch circle diameter (K): 795mm
Flange thickness (C4): 72mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 860mm (D)
PCD: 810mm (K)
Bolt Holes: 24 off 26mm diameter (L)
Flange Thickness: 40mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 860mm (D)
PCD: 810mm (K)
Bolt Holes: 24 off 26mm diameter (L)
Flange Thickness: 40mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 PN10 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 895mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 56mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 895mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 33mm diameter (L)
Flange Thickness: 56mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 910mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 36mm diameter (L)
Flange Thickness: 63mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN700 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 717.0mm (B1)
Flange overall diameter: 910mm (D)
PCD: 840mm (K)
Bolt Holes: 24 off 36mm diameter (L)
Flange Thickness: 63mm (C1)
Diameter of Raised Face (RF): 775mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
