Blind

Blind Flanges – EN1092-1 Type 05 & ANSI B16.5

Integraflow supplies blind (blank) flanges to EN1092-1 Type 05 in S235JR for PN6 to PN40 pressure ratings, and to ANSI B16.5 in A105N for 150lb to 1500lb systems, sourced from European and Far Eastern mills, and available with 2.1 certification for S235JR and full 3.1 certification for A105N, ideal for securely blanking pipeline ends across a wide range of industrial and process applications.

List 600
Sort By: Name (A-Z)

Blind

DN200 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP

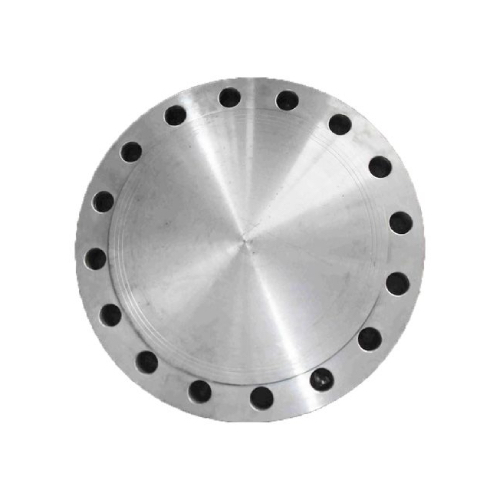

DN250 (10" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 584.2mm
Flange thickness (C): 107.9mm
Pitch circle diameter (K): 482.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 508.0mm
Flange thickness (C): 69.9mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Flat Face (RF): 312mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN250 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 450mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 33mm
Pitch circle diameter (K): 385mm
Flange thickness (C4): 38mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN250(10" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 405mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 355mm
Flange thickness (C1): 29mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 201.39 201.39 GBP
DN300 (12" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 482.6mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 431.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN300 (12" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 673.1mm
Flange thickness (C): 123.9mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN300 (12" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 520.7mm
Flange thickness (C): 50.8mm
Pitch circle diameter (K): 450.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN300 (12" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 558.8mm
Flange thickness (C): 66.5mm
Pitch circle diameter (K): 488.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 381.0mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 445mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 400mm
Flange thickness (C4): 26mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 460mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 410mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 288.68 288.68 GBP
DN300 (12" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 485mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 430mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 365mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN300 (12" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 440mm (D)
PCD: 395mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 25mm (C4)
Diameter of Flat Face (RF): 365mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN300 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 515mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 33mm
Pitch circle diameter (K): 450mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 533.4mm
Flange thickness (C): 35.0mm
Pitch circle diameter (K): 476.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 12
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 749.3mm
Flange thickness (C): 133.3mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 584.2mm
Flange thickness (C): 53.8mm
Pitch circle diameter (K): 514.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN350 (14" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 603.2mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 527.0mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 412.7mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 505mm
Drilling (No. x Bolt Holes x L): 16 x M20 x 22mm
Pitch circle diameter (K): 460mm
Flange thickness (C4): 30mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 520mm
Drilling (No. x Bolt Hole x L): 16 x M24 x 26mm
Pitch circle diameter (K): 470mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 420.00 420.0 GBP
DN350 (14" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 555mm
Drilling (No. x Bolt Hole x L): 16 x M30 x 33mm
Pitch circle diameter (K): 490mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 415mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN350 (14" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 490mm (D)
PCD: 445mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C4)
Diameter of Flat Face (RF): 415mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN350 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 580mm
Drilling (No. x Bolt Holes x L): 16 x M36 x 36mm
Pitch circle diameter (K): 510mm
Flange thickness (C4): 46mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN400 (16" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 596.9mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 539.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN400 (16" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 825.5mm
Flange thickness (C): 146.0mm
Pitch circle diameter (K): 704.8mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN400 (16" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 647.7mm
Flange thickness (C): 57.1mm
Pitch circle diameter (K): 571.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN400 (16" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 685.8mm
Flange thickness (C): 79.2mm
Pitch circle diameter (K): 603.2mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 469.9mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN400 (16" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 565mm
Drilling (No. x Bolt Holes x L): 16 x M24 x 26mm
Pitch circle diameter (K): 515mm
Flange thickness (C4): 32mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN400 (16" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 580mm
Drilling (No. x Bolt Hole x L): 16 x M27 x 30mm
Pitch circle diameter (K): 525mm
Flange thickness (C1): 38mm
Raised face diameter (D1): 465mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 560.00 560.0 GBP
DN400 (16" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 620mm
Drilling (No. x Bolt Hole x L): 16 x M33 x 36mm
Pitch circle diameter (K): 550mm
Flange thickness (C1): 48mm
Raised face diameter (D1): 465mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN400 (16" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 540mm (D)
PCD: 495mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 28mm (C4)
Diameter of Flat Face (RF): 465mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN400 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 660mm
Drilling (No. x Bolt Holes x L): 16 x M36 x 39mm
Pitch circle diameter (K): 585mm
Flange thickness (C4): 50mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 635.0mm
Flange thickness (C): 39.6mm
Pitch circle diameter (K): 577.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP

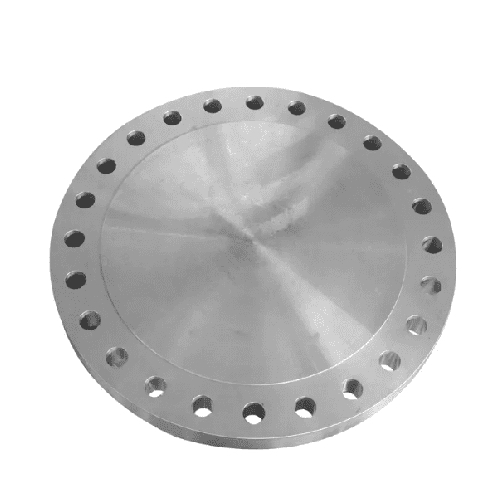

DN450 (18" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 914.4mm
Flange thickness (C): 162.0mm
Pitch circle diameter (K): 774.7mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN450 (18" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 711.2mm
Flange thickness (C): 60.4mm
Pitch circle diameter (K): 628.6mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
