Blind Flanges – EN1092-1 Type 05 & ANSI B16.5

Integraflow supplies blind (blank) flanges to EN1092-1 Type 05 in S235JR for PN6 to PN40 pressure ratings, and to ANSI B16.5 in A105N for 150lb to 1500lb systems, sourced from European and Far Eastern mills, and available with 2.1 certification for S235JR and full 3.1 certification for A105N, ideal for securely blanking pipeline ends across a wide range of industrial and process applications.

List 600
Sort By: Name (A-Z)

Blind

DN450 (18" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 742.9mm
Flange thickness (C): 82.5mm
Pitch circle diameter (K): 654.0mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 533.4mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 615mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 656mm
Flange thickness (C4): 36mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 640mm
Drilling (No. x Bolt Hole x L): 20 x M27 x 30mm
Pitch circle diameter (K): 585mm
Flange thickness (C1): 42mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 945.00 945.0 GBP
DN450 (18" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 670mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 600mm
Flange thickness (C1): 54mm
Raised face diameter (D1): 520mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN450 (18" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 595mm (D)
PCD: 550mm (K)
Bolt Holes: 16 off 22mm diameter (L)
Flange Thickness: 30mm (C4)
Diameter of Flat Face (RF): 520mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN450 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 685mm
Drilling (No. x Bolt Holes x L): 20 x M39 x 39mm
Pitch circle diameter (K): 610mm
Flange thickness (C4): 57mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 698.5mm
Flange thickness (C): 42.9mm
Pitch circle diameter (K): 635.0mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP

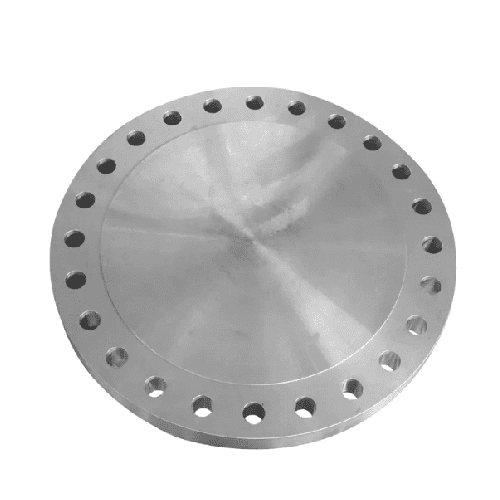

DN500 (20" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 984.2mm
Flange thickness (C): 177.8mm
Pitch circle diameter (K): 831.8mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 774.7mm
Flange thickness (C): 63.5mm
Pitch circle diameter (K): 685.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN500 (20" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 812.8mm
Flange thickness (C): 88.9mm
Pitch circle diameter (K): 723.9mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 584.2mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 670mm
Drilling (No. x Bolt Holes x L): 20 x M24 x 26mm
Pitch circle diameter (K): 620mm
Flange thickness (C4): 38mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 715mm
Drilling (No. x Bolt Hole x L): 20 x M30 x 33mm
Pitch circle diameter (K): 650mm
Flange thickness (C1): 50mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 1,190.00 1190.0 GBP
DN500 (20" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 730mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 660mm
Flange thickness (C1): 58mm
Raised face diameter (D1): 570mm
Raised face height (F1): 4mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN500 (20" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 645mm (D)
PCD: 600mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 570mm (D1)
Height of Flat Face: 4mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN500 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 755mm
Drilling (No. x Bolt Holes x L): 20 x M45 x 42mm
Pitch circle diameter (K): 670mm
Flange thickness (C4): 57mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA150 RF BLIND FLANGE CS A105N
Outside diameter (O): 812.8mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 749.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 20
Material: A105N
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA1500 RF BLIND FLANGE CS A105N
Outside diameter (O): 1168.4mm
Flange thickness (C): 203.2mm
Pitch circle diameter (K): 990.6mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 693.1mm
Number of bolt holes: 16
Material: A105N
Rating: ASA 1500
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA1500, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA300 RF BLIND FLANGE CS A105N
Outside diameter (O): 914.4mm
Flange thickness (C): 69.8mm
Pitch circle diameter (K): 812.8mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN600 (24" NB) ASA600 RF BLIND FLANGE CS A105N
Outside diameter (O): 939.8mm
Flange thickness (C): 101.6mm
Pitch circle diameter (K): 838.2mm
Raised face height (RF): 6.3mm
Raised face diameter (R): 692.1mm
Number of bolt holes: 24
Material: A105N
Rating: ASA 600
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA600, Carbon Steel, Raised Faced
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 780mm
Drilling (No. x Bolt Holes x L): 20 x M27 x 30mm
Pitch circle diameter (K): 725mm
Flange thickness (C4): 42mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 840mm
Drilling (No. x Bolt Hole x L): 20 x M33 x 36mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 55mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 2,065.00 2065.0 GBP
DN600 (24" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 845mm
Drilling (No. x Bolt Hole x L): 20 x M36 x 39mm
Pitch circle diameter (K): 770mm
Flange thickness (C1): 68mm
Raised face diameter (D1): 670mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN600 (24" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 755mm (D)
PCD: 705mm (K)
Bolt Holes: 20 off 26mm diameter (L)
Flange Thickness: 32mm (C4)
Diameter of Flat Face (RF): 675mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN600 PN40 FF BLIND FLANGE CS S235 JR
Flange OD (D): 890mm
Drilling (No. x Bolt Holes x L): 20 x M36 x 48mm
Pitch circle diameter (K): 795mm
Flange thickness (C4): 72mm
Material: S235 JR
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 895mm
Drilling (No. x Bolt Holes x L): 24 x M27 x 30mm
Pitch circle diameter (K): 840mm
Flange thickness (C4): 50mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 910mm
Drilling (No. x Bolt Hole x L): 24 x M33 x 36mm
Pitch circle diameter (K): 840mm
Flange thickness (C1): 63mm
Raised face diameter (D1): 770mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 3,242.05 3242.05 GBP
DN700 (28" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 960mm
Drilling (No. x Bolt Hole x L): 24 x M39 x 42mm
Pitch circle diameter (K): 875mm
Flange thickness (C1): 85mm
Raised face diameter (D1): 775mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN700 (28" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 860mm (D)
PCD: 810mm (K)
Bolt Holes: 24 off 26mm diameter (L)
Flange Thickness: 40mm (C4)
Diameter of Flat Face (RF): 775mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN800 (32" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1015mm
Drilling (No. x Bolt Holes x L): 24 x M30 x 33mm
Pitch circle diameter (K): 950mm
Flange thickness (C4): 56mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN800 (32" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1025mm
Drilling (No. x Bolt Hole x L): 24 x M36 x 39mm
Pitch circle diameter (K): 950mm
Flange thickness (C1): 74mm
Raised face diameter (D1): 880mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 3,850.00 3850.0 GBP
DN800 (32" NB) PN25 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1085mm
Drilling (No. x Bolt Hole x L): 24 x M45 x 48mm
Pitch circle diameter (K): 990mm
Flange thickness (C1): 95mm
Raised face diameter (D1): 880mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN800 (32" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 975mm (D)
PCD: 918mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 44mm (C4)
Diameter of Flat Face (RF): 885mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN900 (36" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1115mm
Drilling (No. x Bolt Holes x L): 28 x M30 x 33mm
Pitch circle diameter (K): 1050mm
Flange thickness (C4): 62mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN900 (36" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1125mm
Drilling (No. x Bolt Hole x L): 28 x M36 x 39mm
Pitch circle diameter (K): 1050mm
Flange thickness (C1): 82mm
Raised face diameter (D1): 980mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 5,950.00 5950.0 GBP
DN900 (36" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1075mm (D)
PCD: 1025mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 48mm (C4)
Diameter of Flat Face (RF): 990mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN1000 (40" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1230mm
Drilling (No. x Bolt Holes x L): 28 x M33 x 36mm
Pitch circle diameter (K): 1160mm
Flange thickness (C4): 70mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN1000 (40" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1255mm
Drilling (No. x Bolt Hole x L): 28 x M39 x 42mm
Pitch circle diameter (K): 1170mm
Flange thickness (C1): 90mm
Raised face diameter (D1): 1080mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 8,400.00 8400.0 GBP
DN1000 (40" NB) PN6 FF BLIND FLANGE CS S235 JR
Flange overall diameter: 1175mm (D)
PCD: 1120mm (K)
Bolt Holes: 28 off 30mm diameter (L)
Flange Thickness: 52mm (C4)
Diameter of Flat Face (RF): 1090mm (D1)
Height of Flat Face: 5mm (F1)
Material: Mild Steel
Grade: S235 JR
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN1200 (48" NB) PN10 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1455mm
Drilling (No. x Bolt Holes x L): 32 x M36 x 39mm
Pitch circle diameter (K): 1380mm
Flange thickness (C4): 83mm
Material: S235 JR
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
Contact us for pricing 0.0 GBP
DN1200 (48" NB) PN16 FF BLIND FLANGE CS S235 JR
Flange OD (D): 1485mm
Drilling (No. x Bolt Hole x L): 32 x M45 x 48mm
Pitch circle diameter (K): 1390mm
Flange thickness (C1): 98mm
Raised face diameter (D1): 1295mm
Raised face height (F1): 5mm
Material: S235 JR
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Mild Steel, Carbon Steel, Flat Faced, FF Blind
£ 11,200.00 11200.0 GBP
