Schedule 40

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Length: 25.4mm
Schedule: STD
Weight: 0.03kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

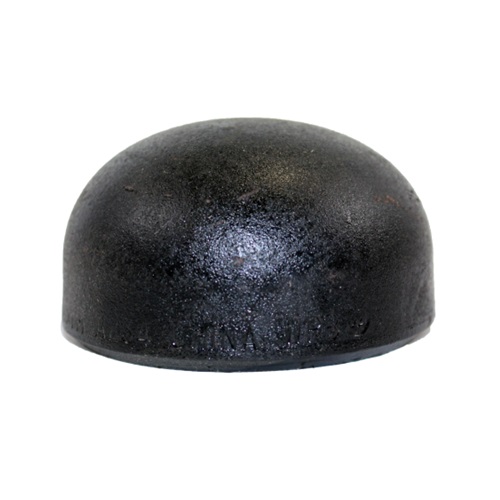

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to End: 25.4mm
Schedule: STD
Weight: 0.11kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

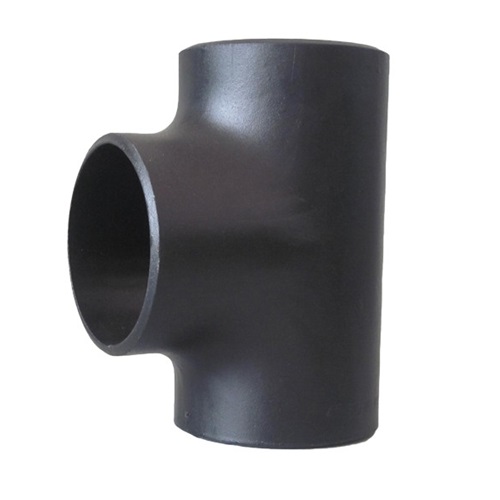

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 15.9mm
Schedule: STD
Weight: 0.04kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

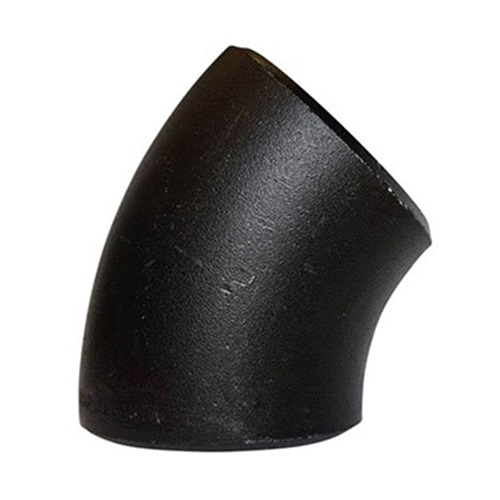

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 38.1mm
Schedule: STD
Weight: 0.08kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

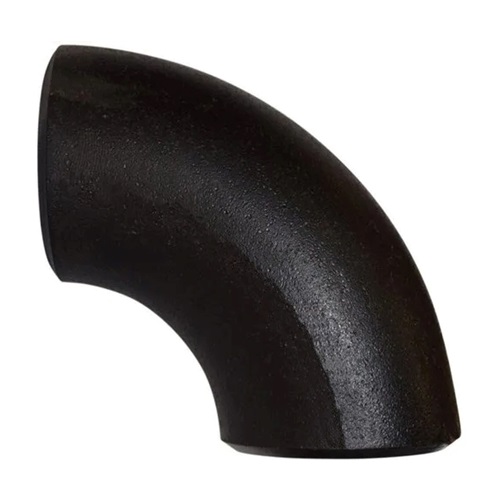

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Length: 28.6mm
Schedule: STD
Weight: 0.06kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to End: 28.6mm
Schedule: STD
Weight: 0.16kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 11.1mm
Schedule: STD
Weight: 0.04kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 27.0mm
Wall Thickness: 2.87mm
Centre to Face: 19.0mm
Schedule: STD
Weight: 0.05kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 28.6mm
Schedule: STD
Weight: 0.08kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: mm

Outside Diameter (OD): 27 X 21mm
Wall Thickness: 2.87 X 2.77mm
Length: 38mm

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 2.87 x 2.77mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: STD
Weight: 0.27kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

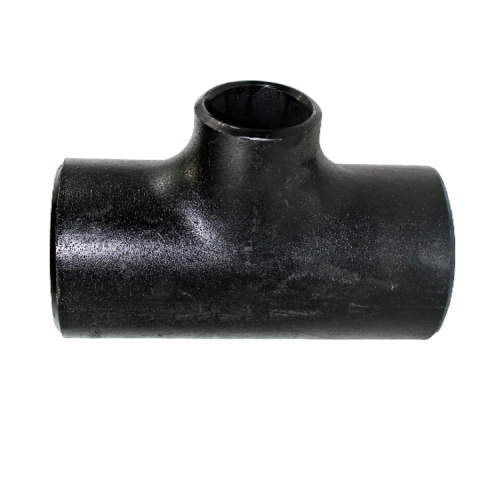

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Length: 38.1mm
Schedule: STD
Weight: 0.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to End: 38.1mm
Schedule: STD
Weight: 0.35kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 22.2mm
Schedule: STD
Weight: 0.09kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 25.4mm
Schedule: STD
Weight: 0.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 38.1mm
Schedule: STD
Weight: 0.15kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.38mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Length: 47.6mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Cap end, End Cap, Blank Cap, Termincation Cap, Stop End

Outside Diameter (OD): 33 X 21mm
Wall Thickness: 3.38 X 2.77mm
Length: mm

Outside Diameter (OD): 33 X 21mm
Wall Thickness: 3.38 X 2.77mm
Length: 51mm

Outside Diameter (OD): 33 X 27mm
Wall Thickness: 3.38 X 2.87mm
Length: mm

Outside Diameter (OD): 33 X 27mm
Wall Thickness: 3.38 X 2.87mm
Length: 51mm

Outside Diameter (OD): 33 x 27mm
Wall Thickness (Run x Branch): 3.38 x 2.87mm
Centre to End (Run): 38mm
Centre to End (Branch): 38mm
Schedule: STD
Weight: 0.34kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.56mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Length: 47.6mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Cap end, End Cap, Blank Cap, Termincation Cap, Stop End

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Length: 47.6mm
Schedule: STD
Weight: 0.14kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to End: 47.6mm
Schedule: STD
Weight: 0.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 25.4mm
Schedule: STD
Weight: 0.14kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 31.75mm
Schedule: STD
Weight: 0.17kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 47.6mm
Schedule: STD
Weight: 0.28kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 42 X 21mm
Wall Thickness: 3.56 X 2.77mm
Length: mm

Outside Diameter (OD): 42 X 21mm
Wall Thickness: 3.56 X 2.77mm
Length: 51mm

Outside Diameter (OD): 42 X 27mm
Wall Thickness: 3.56 X 2.87mm
Length: mm

Outside Diameter (OD): 42 X 27mm
Wall Thickness: 3.56 X 2.87mm
Length: 51mm

Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: 51mm

Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
Length: mm

Outside Diameter (OD): 42 x 33mm
Wall Thickness (Run x Branch): 3.56 x 3.38mm
Centre to End (Run): 48mm
Centre to End (Branch): 48mm
Schedule: STD
Weight: 0.63kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Length: 57.2mm
Schedule: STD
Weight: 0.17kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to End: 57.2mm
Schedule: STD
Weight: 0.92kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 28.6mm
Schedule: STD
Weight: 0.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 38.1mm
Schedule: STD
Weight: 0.25kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 57.1mm
Schedule: STD
Weight: 0.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 48 X 21mm
Wall Thickness: 3.68 X 2.77mm
Length: mm

Outside Diameter (OD): 48 X 21mm
Wall Thickness: 3.68 X 2.77mm
Length: 64mm

Outside Diameter (OD): 48 X 27mm
Wall Thickness: 3.68 X 2.87mm
Length: mm

Outside Diameter (OD): 48 X 27mm
Wall Thickness: 3.68 X 2.87mm
Length: 64mm

Outside Diameter (OD): 48 X 33mm
Wall Thickness: 3.68 X 3.38mm
Length: 64mm

Outside Diameter (OD): 48 X 33mm
Wall Thickness: 3.68 X 3.38mm
Length: mm

Outside Diameter (OD): 48 X 42mm
Wall Thickness: 3.68 X 3.56mm
Length: 64mm

Outside Diameter (OD): 48 X 42mm
Wall Thickness: 3.68 X 3.56mm
Length: mm

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Length: 63.5mm
Schedule: STD
Weight: 0.23kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to End: 63.5mm
Schedule: STD
Weight: 1.34kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 34.9mm
Schedule: STD
Weight: 0.36kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 50.8mm
Schedule: STD
Weight: 0.45kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 76.2mm
Schedule: STD
Weight: 0.72kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 3.91mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Length: 63.5mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Cap end, End Cap, Blank Cap, Termincation Cap, Stop End

Outside Diameter (OD): 60.3mm
Wall Thickness (WT): 3.91mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Radius Centre to Face: 50.8mm
Angle: 90 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Short Rad, 90s

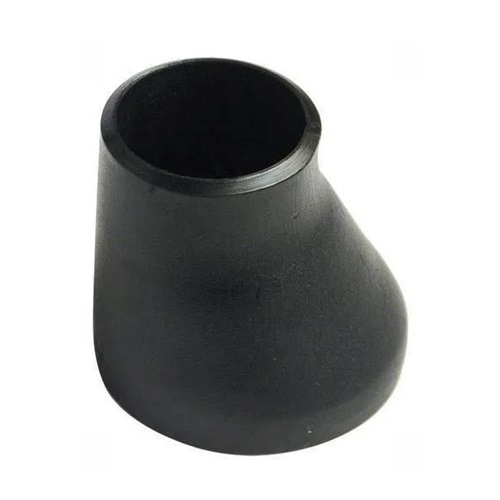

Side One suits an outside diameter (OD) of: 60.3mm
Side One wall thickness (WT): 3.91mm

Side Two suits an outside diameter (OD) of: 33.4mm
Side Two wall thickness (WT): 3.68mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Eccentric
Construction: Seamless
Overall Length: 76mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Ecc Reducer, Eccred, Eccentric

Side One suits an outside diameter (OD) of: 60.3mm
Side One wall thickness (WT): 3.91mm

Side Two suits an outside diameter (OD) of: 48.3mm
Side Two wall thickness (WT): 3.68mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 76mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 60.3mm
Side One wall thickness (WT): 3.91mm

Side Two suits an outside diameter (OD) of: 48.3mm
Side Two wall thickness (WT): 3.68mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 76mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Outside Diameter (OD): 60 X 21.3mm
Wall Thickness: 3.91 X 2.77mm
Length: 76mm

Outside Diameter (OD): 60 X 27mm
Wall Thickness: 3.91 X 2.87mm
Length: mm

Outside Diameter (OD): 60 X 33mm
Wall Thickness: 3.91 X 3.38mm
Length: 76mm

Outside Diameter (OD): 60 X 33mm
Wall Thickness: 3.91 X 3.38mm
Length: mm

Outside Diameter (OD): 60 X 42mm
Wall Thickness: 3.91 X 3.56mm
Length: 76mm

Outside Diameter (OD): 60 X 42mm
Wall Thickness: 3.91 X 3.56mm
Length: mm

Outside Diameter (OD): 60 X 48mm
Wall Thickness: 3.91 X 3.68mm
Length: 76mm

Outside Diameter (OD): 60 X 48mm
Wall Thickness: 3.91 X 3.68mm
Length: mm

Outside Diameter (OD): 60 x 48mm
Wall Thickness (Run x Branch): 3.91 x 3.68mm
Centre to End (Run): 64mm
Centre to End (Branch): 57mm
Schedule: STD
Weight: 1.49kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 73mm
Wall Thickness: 5.16mm
Length: 76.2mm
Schedule: STD
Weight: 0.37kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to End: 76.2mm
Schedule: STD
Weight: 2.36kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 44.4mm
Schedule: STD
Weight: 0.73kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 63.5mm
Schedule: STD
Weight: 0.87kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 95.2mm
Schedule: STD
Weight: 1.46kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 73 X 33mm
Wall Thickness: 5.16 X 3.38mm
Length: 89mm

Outside Diameter (OD): 73 X 42mm
Wall Thickness: 5.16 X 3.56mm
Length: 89mm

Outside Diameter (OD): 73 X 48mm
Wall Thickness: 5.16 X 3.68mm
Length: 89mm

Outside Diameter (OD): 73 X 60mm
Wall Thickness: 5.16 X 3.91mm
Length: 89mm

Outside Diameter (OD): 73 x 60mm
Wall Thickness (Run x Branch): 5.16 x 3.91mm
Centre to End (Run): 76mm
Centre to End (Branch): 64mm
Schedule: STD
Weight: 2.68kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Length: 85.7mm
Schedule: STD
Weight: 0.64kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to End: 85.7mm
Schedule: STD
Weight: 3.37kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 50.8mm
Schedule: STD
Weight: 1.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 76.2mm
Schedule: STD
Weight: 1.38kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 114.3mm
Schedule: STD
Weight: 2.18kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 89 X 42mm
Wall Thickness: 5.49 X 3.56mm
Length: 89mm

Outside Diameter (OD): 89 X 48mm
Wall Thickness: 5.49 X 3.68mm
Length: 89mm

Outside Diameter (OD): 89 X 60mm
Wall Thickness: 5.49 X 3.91mm
Length: 89mm

Outside Diameter (OD): 89 X 73mm
Wall Thickness: 5.49 X 5.16mm
Length: 89mm

Side One suits an outside diameter (OD) of: 88.9mm
Side One wall thickness (WT): 5.48mm

Side Two suits an outside diameter (OD) of: 48.3mm
Side Two wall thickness (WT): 3.68mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 89mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 88.9mm
Side One wall thickness (WT): 5.48mm

Side Two suits an outside diameter (OD) of: 48.3mm
Side Two wall thickness (WT): 3.68mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 89mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European (EU)


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 88.9mm
Side One wall thickness (WT): 5.48mm

Side Two suits an outside diameter (OD) of: 73mm
Side Two wall thickness (WT): 5.16mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 89mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification


Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Outside Diameter (OD): 89 x 60mm
Wall Thickness (Run x Branch): 5.49 x 3.91mm
Centre to End (Run): 86mm
Centre to End (Branch): 76mm
Schedule: STD
Weight: 3.75kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 101.6mm
Wall Thickness (WT): 5.74mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9
Radius Centre to Face: 57.2mm
Angle: 45 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Weld Bends, Weld Elbow, 45° / 45 deg

Outside Diameter (OD): 101.6mm
Wall Thickness: 5.74mm
Centre to End: 95.3mm
Schedule: STD
Weight: 4.82kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 102 X 48mm
Wall Thickness: 5.74 X 3.68mm
Length: 102mm

Outside Diameter (OD): 102 X 60mm
Wall Thickness: 5.74 X 3.91mm
Length: 102mm

Outside Diameter (OD): 102 X 73mm
Wall Thickness: 5.74 X 5.16mm
Length: 102mm

Outside Diameter (OD): 102 X 89mm
Wall Thickness: 5.74 X 5.49mm
Length: 102mm

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Length: 104.8mm
Schedule: STD
Weight: 1.16kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to End: 104.8mm
Schedule: STD
Weight: 5.72kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to Face: 63.5mm
Schedule: STD
Weight: 2.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
