Elbows 45°

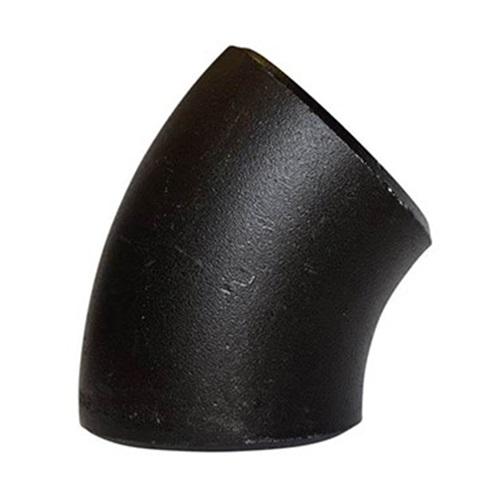

DN15 (½" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 21.3mm
Wall Thickness: 3.73mm
Centre to Face: 15.9mm
Schedule: XS
Weight: 0.05kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 1.56 1.56 GBP Available to Order Enquire

DN20 (¾" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 26.7mm
Wall Thickness: 3.91mm
Centre to Face: 11.1mm
Schedule: XS
Weight: 0.05kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 1.48 1.48 GBP Available to Order Enquire

DN25 (1" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 22.2mm
Schedule: XS
Weight: 0.11kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 1.76 1.76 GBP Available to Order Enquire

DN32 (1¼" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 25.4mm
Schedule: XS
Weight: 0.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 2.56 2.56 GBP Available to Order Enquire

DN40 (1½" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 48.3mm
Wall Thickness: 5.08mm
Centre to Face: 28.6mm
Schedule: XS
Weight: 0.25kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 7.52 7.52 GBP Available to Order Enquire

DN50 (2" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 34.9mm
Schedule: XS
Weight: 0.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 5.16 5.16 GBP Available to Order Enquire

DN65 (2½" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 73.0mm
Wall Thickness: 7.01mm
Centre to Face: 44.4mm
Schedule: XS
Weight: 0.91kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 8.28 8.28 GBP Available to Order Enquire

DN80 (3" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 50.8mm
Schedule: XS
Weight: 1.45kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 11.36 11.36 GBP Available to Order Enquire

DN100 (4" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 114.3mm
Wall Thickness: 8.56mm
Centre to Face: 63.5mm
Schedule: XS
Weight: 2.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 22.20 22.2 GBP Available to Order Enquire

DN125 (5" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 79.4mm
Schedule: XS
Weight: 5.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 61.28 61.28 GBP Available to Order Enquire

DN150 (6" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 95.2mm
Schedule: XS
Weight: 7.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 70.00 70.0 GBP Available to Order Enquire

DN200 (8" NB) SCHEDULE 80 / XS A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 127.0mm
Schedule: XS
Weight: 15.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£ 180.00 180.0 GBP Available to Order Enquire
