Schedule 80

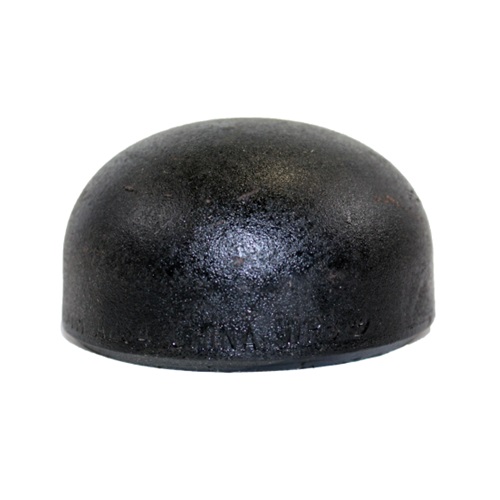

Outside Diameter (OD): 21.3mm
Wall Thickness: 3.73mm
Length: 25.4mm
Schedule: XS
Weight: 0.04kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 21.3mm
Wall Thickness: 3.73mm
Centre to End: 25.4mm
Schedule: XS
Weight: 0.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 21.3mm
Wall Thickness: 3.73mm
Centre to Face: 15.9mm
Schedule: XS
Weight: 0.05kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

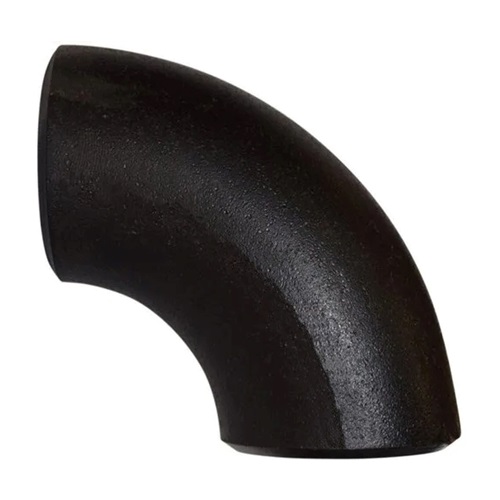

Outside Diameter (OD): 21.3mm
Wall Thickness: 3.73mm
Centre to Face: 38.1mm
Schedule: XS
Weight: 0.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 26.7mm
Wall Thickness: 3.91mm
Length: 28.6mm
Schedule: XS
Weight: 0.07kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 26.7mm
Wall Thickness: 3.91mm
Centre to End: 28.6mm
Schedule: XS
Weight: 0.21kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 26.7mm
Wall Thickness: 3.91mm
Centre to Face: 11.1mm
Schedule: XS
Weight: 0.05kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 26.7mm
Wall Thickness: 3.91mm
Centre to Face: 28.6mm
Schedule: XS
Weight: 0.11kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

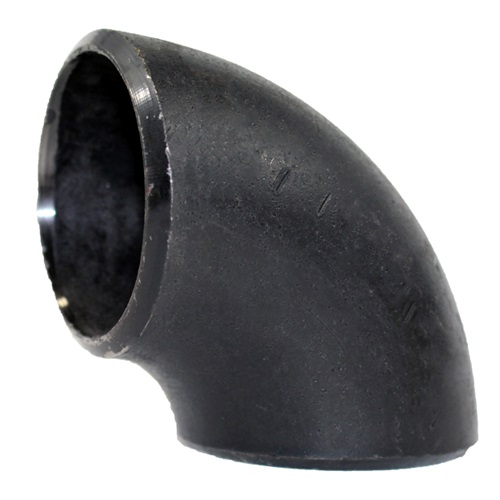

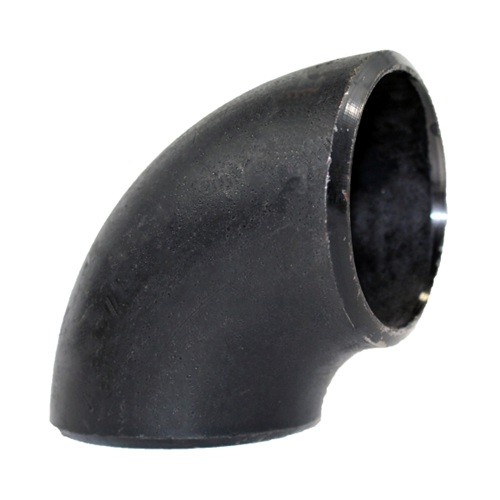

Outside Diameter (OD): 27.0mm
Wall Thickness: 3.91mm
Centre to Face: 19.0mm
Schedule: XS
Weight: 0.07kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 27 x 21mm
Wall Thickness (Run x Branch): 3.91 x 3.73mm
Centre to End (Run): 29mm
Centre to End (Branch): 29mm
Schedule: XS
Weight: 0.45kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Length: 38.1mm
Schedule: XS
Weight: 0.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to End: 38.1mm
Schedule: XS
Weight: 0.42kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 22.2mm
Schedule: XS
Weight: 0.11kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 38.1mm
Schedule: XS
Weight: 0.19kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 33.4mm
Wall Thickness: 4.55mm
Centre to Face: 25.4mm
Schedule: XS
Weight: 0.13kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 33 x 27mm
Wall Thickness (Run x Branch): 4.55 x 3.91mm
Centre to End (Run): 38mm
Centre to End (Branch): 38mm
Schedule: XS
Weight: 0.45kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Length: 47.6mm
Schedule: XS
Weight: 0.18kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to End: 47.6mm
Schedule: XS
Weight: 0.74kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 25.4mm
Schedule: XS
Weight: 0.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 47.6mm
Schedule: XS
Weight: 0.39kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 42.2mm
Wall Thickness: 4.85mm
Centre to Face: 31.75mm
Schedule: XS
Weight: 0.23kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 42 x 33mm
Wall Thickness (Run x Branch): 4.85 x 4.55mm
Centre to End (Run): 48mm
Centre to End (Branch): 48mm
Schedule: XS
Weight: 0.85kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 48.3mm
Wall Thickness: 5.08mm
Length: 57.2mm
Schedule: XS
Weight: 0.22kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 48.3mm
Wall Thickness: 5.08mm
Centre to End: 57.2mm
Schedule: XS
Weight: 1.12kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 48.3mm
Wall Thickness: 5.08mm
Centre to Face: 28.6mm
Schedule: XS
Weight: 0.25kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 48.3mm
Wall Thickness: 5.08mm
Centre to Face: 57.1mm
Schedule: XS
Weight: 0.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 48.3mm
Wall Thickness: 5.08mm
Centre to Face: 38.1mm
Schedule: XS
Weight: 0.33kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Length: 63.5mm
Schedule: XS
Weight: 0.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to End: 63.5mm
Schedule: XS
Weight: 1.69kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 34.9mm
Schedule: XS
Weight: 0.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 76.2mm
Schedule: XS
Weight: 1.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 60.3mm
Wall Thickness: 5.54mm
Centre to Face: 50.8mm
Schedule: XS
Weight: 0.6kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 60 x 48mm
Wall Thickness (Run x Branch): 5.54 x 5.08mm
Centre to End (Run): 64mm
Centre to End (Branch): 57mm
Schedule: XS
Weight: 2.15kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 73.0mm
Wall Thickness: 7.01mm
Centre to End: 76.2mm
Schedule: XS
Weight: 2.92kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 73.0mm
Wall Thickness: 7.01mm
Centre to Face: 44.4mm
Schedule: XS
Weight: 0.91kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 73.0mm
Wall Thickness: 7.01mm
Centre to Face: 95.2mm
Schedule: XS
Weight: 1.82kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 73.0mm
Wall Thickness: 7.01mm
Centre to Face: 63.5mm
Schedule: XS
Weight: 1.14kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 73 x 60mm
Wall Thickness (Run x Branch): 7.01 x 5.54mm
Centre to End (Run): 76mm
Centre to End (Branch): 64mm
Schedule: XS
Weight: 3.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Length: 85.7mm
Schedule: XS
Weight: 0.84kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to End: 85.7mm
Schedule: XS
Weight: 4.29kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 50.8mm
Schedule: XS
Weight: 1.45kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 114.3mm
Schedule: XS
Weight: 2.86kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 88.9mm
Wall Thickness: 7.62mm
Centre to Face: 76.2mm
Schedule: XS
Weight: 1.83kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 89 x 60mm
Wall Thickness (Run x Branch): 7.62 x 5.54mm
Centre to End (Run): 86mm
Centre to End (Branch): 76mm
Schedule: XS
Weight: 4.29kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 101.6mm
Wall Thickness: 8.08mm
Centre to End: 95.3mm
Schedule: XS
Weight: 5.72kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 114.3mm
Wall Thickness: 8.56mm
Length: 104.8mm
Schedule: XS
Weight: 1.55kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 114.3mm
Wall Thickness: 8.56mm
Centre to End: 104.8mm
Schedule: XS
Weight: 7.44kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 114.3mm
Wall Thickness: 8.56mm
Centre to Face: 63.5mm
Schedule: XS
Weight: 2.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 114.3mm
Wall Thickness: 8.56mm
Centre to Face: 152.4mm
Schedule: XS
Weight: 5.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 114.3mm
Wall Thickness: 9.5mm
Centre to Face: 101.6mm
Schedule: XS
Weight: 6.21kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 114.3mm
Wall Thickness: 8.56mm
Centre to Face: 101.6mm
Schedule: XS
Weight: 3.58kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 114 x 89mm
Wall Thickness (Run x Branch): 8.56 x 7.62mm
Centre to End (Run): 105mm
Centre to End (Branch): 95mm
Schedule: XS
Weight: 7.65kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to End: 123.8mm
Schedule: XS
Weight: 12.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 79.4mm
Schedule: XS
Weight: 5.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 190.0mm
Schedule: XS
Weight: 10.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness: 9.5mm
Centre to Face: 127.0mm
Schedule: XS
Weight: 6.89kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 141.3mm
Wall Thickness (WT): 9.53mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 80 / Extra Strong
Centre to Face: 124mm
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Tee Piece, Equal Tee

Side One suits an outside diameter (OD) of: 141.3mm
Side One wall thickness (WT): 9.53mm

Side Two suits an outside diameter (OD) of: 114.3mm
Side Two wall thickness (WT): 8.56mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Eccentric
Construction: Seamless
Overall Length: 127mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Ecc Reducer, Eccred, Eccentric

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9, Schedule 40 / Standard Weight
Radius Centre to Face: 152.4mm
Angle: 90 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Short Rad, 90s, SR

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Length: 142.8mm
Schedule: XS
Weight: 4.41kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to End: 142.8mm
Schedule: XS
Weight: 19.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 95.2mm
Schedule: XS
Weight: 7.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 229.0mm
Schedule: XS
Weight: 15.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 10.97mm
Centre to Face: 152.4mm
Schedule: XS
Weight: 10.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Side One suits an outside diameter (OD) of: 168.3mm
Side One wall thickness (WT): 10.97mm

Side Two suits an outside diameter (OD) of: 114.3mm
Side Two wall thickness (WT): 8.56mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 140mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 168.3mm
Side One wall thickness (WT): 10.97mm

Side Two suits an outside diameter (OD) of: 114.3mm
Side Two wall thickness (WT): 8.56mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 140mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification
Origin: European

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Side One suits an outside diameter (OD) of: 168.3mm
Side One wall thickness (WT): 10.97mm

Side Two suits an outside diameter (OD) of: 141.3mm
Side Two wall thickness (WT): 9.53mm

Material: Carbon Steel
Grade: A234 WPB
Standards: ASME B16.9
Reduction style: Concentric
Construction: Seamless
Overall Length: 140mm
Ends: Buttweld
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Butt Weld, Con Reducer, Conred, Concentric

Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 10.97 x 8.56mm
Centre to End (Run): 143mm
Centre to End (Branch): 124mm
Schedule: XS
Weight: 19.3kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Length: 177.8mm
Schedule: XS
Weight: 7.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Cap, End Cap, Cap End, Weldable Cap

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to End: 177.8mm
Schedule: XS
Weight: 34.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 127.0mm
Schedule: XS
Weight: 15.5kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 305.0mm
Schedule: XS
Weight: 30.9kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 219.1mm
Wall Thickness: 12.7mm
Centre to Face: 203.0mm
Schedule: XS
Weight: 20.7kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 12.70 x 10.97mm
Centre to End (Run): 178mm
Centre to End (Branch): 152mm
Schedule: XS
Weight: 33.0kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
