Elbows 45°

DN15 (½" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 21.3mm
Wall Thickness: 2.78mm
Centre to Face: 15.9mm
Schedule: STD
Weight: 0.04kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Contact us for pricing 0.0 GBP

DN20 (¾" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 26.7mm
Wall Thickness: 2.87mm
Centre to Face: 11.1mm
Schedule: STD
Weight: 0.04kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£0.87 each

List Price – Sign in to view Trade Prices 0.87 GBP

DN25 (1" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 22.2mm
Schedule: STD
Weight: 0.09kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£0.99 each

List Price – Sign in to view Trade Prices 0.99 GBP

DN32 (1¼" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 25.4mm
Schedule: STD
Weight: 0.14kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£1.08 each

List Price – Sign in to view Trade Prices 1.08 GBP

DN40 (1½" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 48.3mm
Wall Thickness: 3.68mm
Centre to Face: 28.6mm
Schedule: STD
Weight: 0.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£1.68 each

List Price – Sign in to view Trade Prices 1.68 GBP

DN50 (2" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 60.3mm
Wall Thickness: 3.91mm
Centre to Face: 34.9mm
Schedule: STD
Weight: 0.36kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£2.52 each

List Price – Sign in to view Trade Prices 2.52 GBP

DN65 (2½" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to Face: 44.4mm
Schedule: STD
Weight: 0.73kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£4.68 each

List Price – Sign in to view Trade Prices 4.68 GBP

DN80 (3" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 88.9mm
Wall Thickness: 5.49mm
Centre to Face: 50.8mm
Schedule: STD
Weight: 1.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£7.41 each

List Price – Sign in to view Trade Prices 7.41 GBP

DN90 (3.1/2" NB) SCHEDULE 40/STD A234 WPB LONG RADIUS ELBOW 45°

Outside Diameter (OD): 101.6mm
Wall Thickness (WT): 5.74mm
Material: Carbon Steel
Grade: A234 WPB
Standards: ANSI B16.9
Radius Centre to Face: 57.2mm
Angle: 45 Degree
Ends: Buttweld
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Weld Bends, Weld Elbow, 45° / 45 deg

£9.48 each

List Price – Sign in to view Trade Prices 9.48 GBP

DN100 (4" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 114.3mm
Wall Thickness: 6.02mm
Centre to Face: 63.5mm
Schedule: STD
Weight: 2.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£11.85 each

List Price – Sign in to view Trade Prices 11.85 GBP

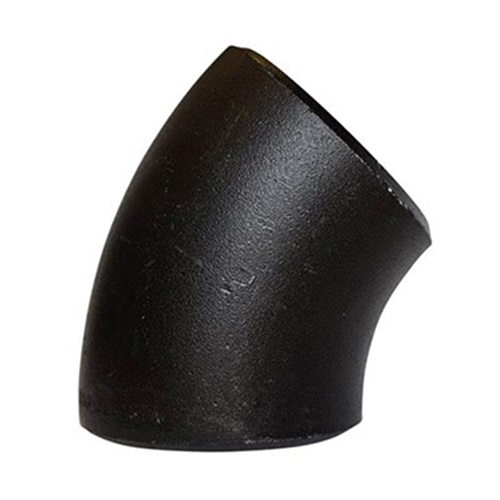

DN125 (5" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 141.3mm
Wall Thickness: 6.65mm
Centre to Face: 79.4mm
Schedule: STD
Weight: 3.4kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£22.68 each

List Price – Sign in to view Trade Prices 22.68 GBP

DN150 (6" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 95.2mm
Schedule: STD
Weight: 5.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£28.53 each

List Price – Sign in to view Trade Prices 28.53 GBP

DN200 (8" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 127.0mm
Schedule: STD
Weight: 10.2kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£52.80 each

List Price – Sign in to view Trade Prices 52.8 GBP

DN250 (10" NB) SCHEDULE 40 / STD A234 WPB LONG RADIUS 45 DEG ELBOW

Outside Diameter (OD): 273.9mm
Wall Thickness: 9.27mm
Centre to Face: 159.0mm
Schedule: STD
Weight: 18.1kg

Material: Mild Steel
Material Grade: ASTM A234 WPB
Finish: Black Varnished (Self Colour or Shotblasting on request)
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

£140.01 each

List Price – Sign in to view Trade Prices 140.01 GBP
