Flanged PN16

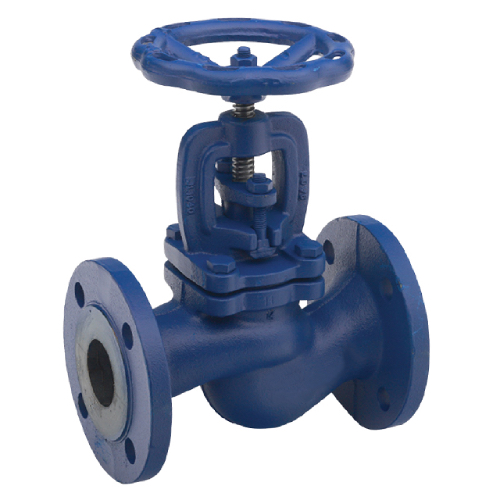

DN15 (1/2" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN15 (1/2" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 130mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 342.93 342.93 GBP

DN20 (3/4" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN20 (3/4" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 150mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 368.34 368.34 GBP

DN25 (1" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN25 (1" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 160mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 529.76 529.76 GBP

DN32 (1.1/4" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN32 (1.1/4" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 180mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 638.89 638.89 GBP

DN40 (1.1/2" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN40 (1.1/2" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 200mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 685.58 685.58 GBP

DN50 (2" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN50 (2" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 230mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 1,121.54 1121.54 GBP

DN65 (2.1/2" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN65 (2.1/2" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 290mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 1,326.43 1326.43 GBP

DN80 (3" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN80 (3" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 310mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 1,607.55 1607.55 GBP

DN100 (4" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN100 (4" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 350mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 2,132.62 2132.62 GBP

DN125 (5" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN125 (5" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 400mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 3,595.55 3595.55 GBP

DN150 (6" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN150 (6" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 400mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 3,982.30 3982.3 GBP

DN200 (8" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN200 (8" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 600mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 8,082.97 8082.97 GBP

DN250 (10" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN250 (10" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 400mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 12,877.62 12877.62 GBP

DN300 (12" NB) PN16 FLANGED CAST IRON GLOBE VALVE MANUAL HANDWHEEL (DIN 3202)

Flanged to suit: DN300 (12" NB)
Body Material: Cast Iron
Bonnet: Cast Iron
Disc & Stem: Stainless Steel
Seat Ring: Stainless Steel
Packing: Graphite
Pressure Rating: PN16
Face to Face: 850mm
Temperature Range: -10°C to 300°C
Certification: Available on request

£ 21,570.92 21570.92 GBP
