Nominal Bore Stainless Steel Pipework – 304 & 316 Grades

Integraflow offers a complete range of nominal bore stainless steel pipework systems in 304 and 316/L grades, including pipe, fittings, flanges, valves, and supports in welded, seamless, and threaded configurations, designed for durability, corrosion resistance, and compatibility across industrial, hygienic, and mechanical applications.

List 600
Sort By: Name (A-Z)

Stainless

DN125 DIN UNION NUT SS 304 (DIN PART 1 OF 4)
Suits a DN125 DIN Union
Material: Stainless
Grade: 304

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.
£ 122.36 122.36 GBP
DN125 DIN UNION WELD LINER SS 316 (DIN PART 1 OF 4)
Suits a DN125 DIN Union
Material: Stainless
Grade: 316

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.
£ 91.14 91.14 GBP
DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 154.77 154.77 GBP
DN125 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 250mm (D)
PCD: 210mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 216.23 216.23 GBP

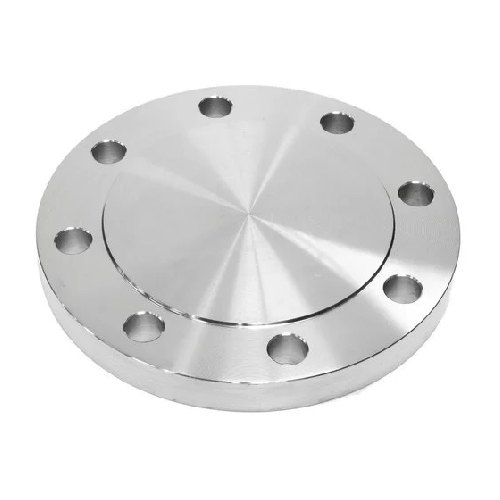

DN125 PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 270mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 220mm
Flange thickness (C4): 26mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 620.20 620.2 GBP
DN125 PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 270mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 220mm
Flange thickness (C4): 26mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 544.88 544.88 GBP
DN125 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 270mm (D)
PCD: 220mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 270mm (D)
PCD: 220mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 28mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
£ 143.64 143.64 GBP
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
£ 216.93 216.93 GBP
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
£ 207.48 207.48 GBP
DN125 X DN100 (5" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 114mm
Wall Thickness: 6.55 X 6.02mm
Length: 127mm
£ 355.11 355.11 GBP
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
£ 230.02 230.02 GBP
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
£ 355.11 355.11 GBP
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
£ 334.11 334.11 GBP
DN125 X DN50 (5" X 2" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 60mm
Wall Thickness: 6.55 X 3.91mm
Length: 127mm
£ 464.73 464.73 GBP
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
£ 230.23 230.23 GBP
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
£ 290.99 290.99 GBP
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
£ 286.16 286.16 GBP
DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
Length: 127mm
£ 414.19 414.19 GBP
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
Contact us for pricing 0.0 GBP
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
£ 201.11 201.11 GBP
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
£ 252.56 252.56 GBP
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
£ 238.77 238.77 GBP
DN125 X DN80 (5" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 89mm
Wall Thickness: 6.55 X 5.49mm
Length: 127mm
£ 258.30 258.3 GBP
DN129 (5" OD) UN-BOSSED HYGIENIC SPLIT BAND HANGER SS 304
Suits an outside diameter (OD) of: 129mm
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: Stainless Steel
Grade: 304
Contact us for pricing 0.0 GBP
DN15 (1/2" NB) SW 3000# UNION SS 316
Connection: 1/2" SW (Socket Weld)
Suits an outside diameter (OD) of: 21.3mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged Stainless Steel
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Stainless Steel
£ 99.82 99.82 GBP
DN150 (5" NB) NPT 150# BARREL NIPPLE SS 316
Thread: 6" NPT Male x Male
Suits an outside diameter (OD) of: 168.3mm
Material: Stainless
Grade: 316
£ 383.74 383.74 GBP
DN150 (6 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) (168.3mm) PN16 RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 24mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£ 192.29 192.29 GBP
DN150 (6" NB) (168.3mm) PN16 RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M20 Bolts
PCD: 240mm
Flange Diameter: 285mm
Flange Thickness: 24mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£ 289.45 289.45 GBP
DN150 (6" NB) (168.3mm) PN25/40 RF SLIP ON PLATE FLANGE SS 304
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M24 Bolts
PCD: 250mm
Flange Diameter: 300mm
Flange Thickness: 30mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£ 105.70 105.7 GBP
DN150 (6" NB) (168.3mm) PN25/40 RF SLIP ON PLATE FLANGE SS 316
Suits an outside diameter (OD) of: 168.3mm
Material: MS
Grade: 316
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 8 off to suit M24 Bolts
PCD: 250mm
Flange Diameter: 300mm
Flange Thickness: 30mm
Certification Available: 3.1 BS EN 10204 Material Certification

Part of our Flanges and Flanged Connections Range
£ 105.70 105.7 GBP
DN150 (6" NB) ASA150 FLANGED 2PC LEVER OP. BALL VALVE LEVER OP SS 316
Flanged both ends: 6" ASA150
Suits an outside diameter (OD) of: 168.3mm
PCD: 241.3mm Ø (ANSI 150)
Face to face: 229mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range
£ 5,384.12 5384.12 GBP
DN150 (6" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£ 374.64 374.64 GBP
DN150 (6" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£ 556.71 556.71 GBP
DN150 (6" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 279.4mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 39.6mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 279.4mm (O)
Flange thickness: 25.4mm (C)
Flange hub height: 39.6mm (Y)
Pitch Circle Diameter (PCD): 241.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 393.7mm (O)
Flange thickness: 82.5mm (C)
Flange hub height: 66.3mm (Y)
Pitch Circle Diameter (PCD): 317.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 38.1mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 393.7mm (O)
Flange thickness: 82.5mm (C)
Flange hub height: 66.3mm (Y)
Pitch Circle Diameter (PCD): 317.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 38.1mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£ 1,101.80 1101.8 GBP
DN150 (6" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 317.5mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 52.3mm (Y)
Pitch Circle Diameter (PCD): 269.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 317.5mm (O)
Flange thickness: 36.5mm (C)
Flange hub height: 52.3mm (Y)
Pitch Circle Diameter (PCD): 269.7mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 22.3mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 (6" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 355.6mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 292.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
