Stainless

Flange outside diameter: 355.6mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 292.1mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 28.4mm diameter
Bore Diameter: 170.6mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range

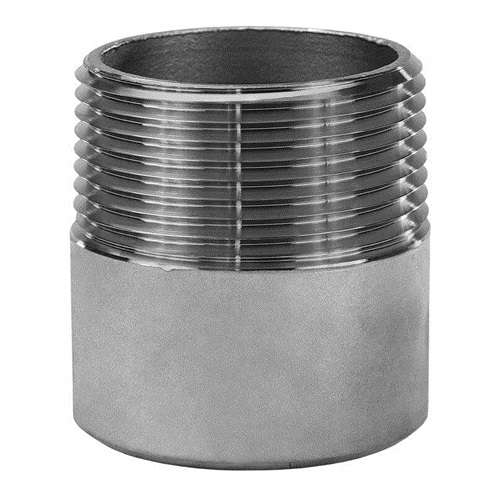

Side One Thread: 6" BSPT Male
Side One Suits an outside diameter (OD) of: 168.3mm
Side Two Plain: 6" Buttweld
Side Two Suits an outside diameter (OD) of: 168.3mm
Material: Stainless
Grade: 316

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi

Flange OD (D): 285mm
Drilling (No. x Bolt Hole x L): 8 x M20 x 22mm
Pitch circle diameter (K): 240mm
Flange thickness (C1): 24mm
Raised face diameter (D1): 202mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange OD (D): 285mm
Drilling (No. x Bolt Hole x L): 8 x M20 x 22mm
Pitch circle diameter (K): 240mm
Flange thickness (C1): 24mm
Raised face diameter (D1): 202mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

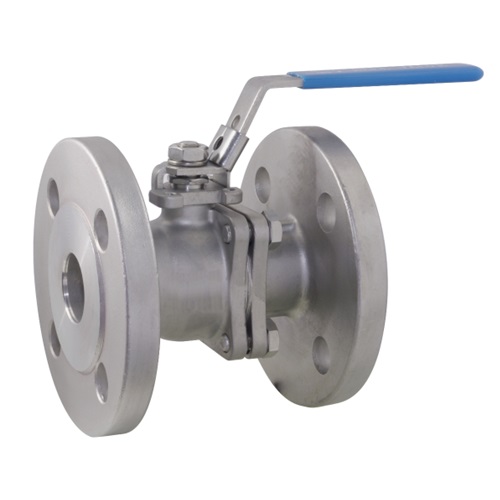

Flanged both ends: 6" PN16
Suits an outside diameter (OD) of: 168.3mm
PCD: 262mm Ø (PN16)
Face to face: 350mm
Construction: 2 Piece
Body Material: CF8/CF8M (316) Stainless
Bore: Full Bore
Internals: PTFE Seals
Investment Casting
Blowout proof stem

Part of our Isolation and Valves Range

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 285mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 240mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M20 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 285mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 240mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M20 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 202mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 202mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 304

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range

Flange outside diameter: 265mm (D)
Flange thickness: 18mm (C2)
Pitch Circle Diameter (PCD): 225mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN6
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN6

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 265mm (D)
PCD: 225mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

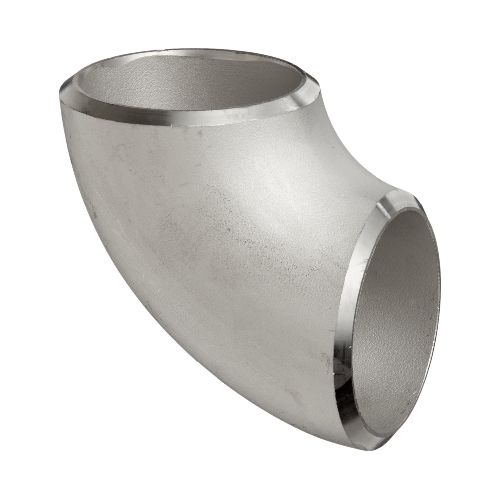

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 10S
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 3.40mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 3.40mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 14.04kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 3.40mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 14.04kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 40s
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 40s
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Seamless
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Seamless
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 40s
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to End: 142.8mm
Schedule: 40s
Weight: 13.33kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm

Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 229.0mm
Schedule: A403 Welded
Weight: 10.1kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside Diameter (OD): 168.3mm
Wall Thickness: 7.11mm
Centre to Face: 152.4mm
Schedule: A403 Welded
Weight: 6.89kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 28.26kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range

Outside Diameter (OD): 168.3mm
Wall Thickness (WT): 7.11mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 28.69
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Hub length (X): 190.5mm
Neck height (A): 241.3mm
Pitch circle diameter (K): 241.3mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Hub length (X): 190.5mm
Neck height (A): 241.3mm
Pitch circle diameter (K): 241.3mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg

Part of our Flanges and Flanged Connections Range

Suits an outside diameter (OD) of: 168.3mm
Material: Stainless Steel 304 (A2)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 168.3mm
Material: Stainless Steel 316 (A4)
Thread: M12
Comes with 2x Nuts

Suits an outside diameter (OD) of: 168.3mm
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: Stainless Steel
Grade: 304

Suits a DN150 DIN Union
Material: Stainless
Grade: 304

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Suits a DN150 DIN Union
Material: Stainless
Grade: 316

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
