Nominal Bore Stainless Steel Pipework – 304 & 316 Grades

Integraflow offers a complete range of nominal bore stainless steel pipework systems in 304 and 316/L grades, including pipe, fittings, flanges, valves, and supports in welded, seamless, and threaded configurations, designed for durability, corrosion resistance, and compatibility across industrial, hygienic, and mechanical applications.

List 600
Sort By: Name (A-Z)

Stainless

DN150 PN10/PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 285mm (D)
PCD: 240mm (K)
Bolt Holes: 8 off 22mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 289.45 289.45 GBP
DN150 PN25 / PN40 RF BLIND FLANGE SS 304
Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 492.45 492.45 GBP
DN150 PN25 / PN40 RF BLIND FLANGE SS 316
Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 726.04 726.04 GBP
DN150 PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 300mm (D)
PCD: 250mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN150 PN25/PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 170.5mm (B1)
Flange overall diameter: 300mm (D)
PCD: 250mm (K)
Bolt Holes: 8 off 26mm diameter (L)
Flange Thickness: 30mm (C1)
Diameter of Raised Face (RF): 202mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP

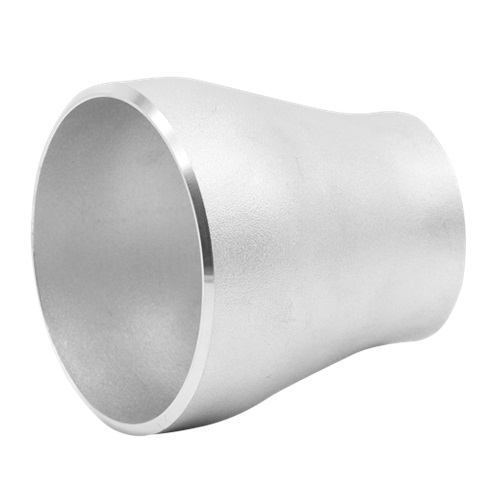

DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
£ 299.04 299.04 GBP
DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
£ 459.76 459.76 GBP
DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
£ 271.95 271.95 GBP
DN150 X DN100 (6" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 114mm
Wall Thickness: 7.11 X 6.02mm
Length: 140mm
£ 439.67 439.67 GBP
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
£ 210.70 210.7 GBP
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
£ 359.66 359.66 GBP
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
£ 296.31 296.31 GBP
DN150 X DN125 (6" X 5" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 141mm
Wall Thickness: 7.11 X 6.55mm
Length: 140mm
£ 271.95 271.95 GBP
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
£ 414.61 414.61 GBP
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
£ 377.58 377.58 GBP
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
£ 483.07 483.07 GBP
DN150 X DN65 (6" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 73mm
Wall Thickness: 7.11 X 5.16mm
Length: 140mm
£ 683.90 683.9 GBP
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
Contact us for pricing 0.0 GBP
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
£ 195.72 195.72 GBP
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
£ 344.68 344.68 GBP
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
£ 358.26 358.26 GBP
DN150 X DN80 (6" X 3" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 168 X 89mm
Wall Thickness: 7.11 X 5.49mm
Length: 140mm
£ 398.58 398.58 GBP
DN150 x DN100 (6 x 4" NB) SCHEDULE 10S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 3.40 x 3.05mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 10S
Weight: 5.10kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN150 x DN100 (6 x 4" NB) SCHEDULE 10S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 3.40 x 3.05mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 10S
Weight: 5.10kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN150 x DN100 (6 x 4" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 304
Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 3.40 x 3.05mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 10S
Weight: 5.10kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 281.96 281.96 GBP
DN150 x DN100 (6 x 4" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316
Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 3.40 x 3.05mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 10S
Weight: 5.10kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 430.50 430.5 GBP
DN150 x DN100 (6 x 4" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 7.11 x 6.02mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 40s
Weight: 14.0kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN150 x DN100 (6 x 4" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 7.11 x 6.02mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 40s
Weight: 14.0kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN150 x DN100 (6 x 4" NB) SCHEDULE 40S A403 WELDED REDUCING TEE SS 304
Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 7.11 x 6.02mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 40s
Weight: 14.0kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 444.99 444.99 GBP
DN150 x DN100 (6 x 4" NB) SCHEDULE 40S A403 WELDED REDUCING TEE SS 316
Outside Diameter (OD): 168 x 114mm
Wall Thickness (Run x Branch): 7.11 x 6.02mm
Centre to End (Run): 143mm
Centre to End (Branch): 130mm
Schedule: 40s
Weight: 14.0kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 786.24 786.24 GBP
DN154 (6" OD) UN-BOSSED HYGIENIC SPLIT BAND HANGER SS 304
Suits an outside diameter (OD) of: 154mm
Band width: 40mm
Band thickness: 5mm
Bolt Size: M12
Material: Stainless Steel
Grade: 304
Contact us for pricing 0.0 GBP
DN20 (3/4" NB) SW 3000# UNION SS 316
Connection: 3/4" SW (Socket Weld)
Suits an outside diameter (OD) of: 26.9mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Union, FXF, Stainless Steel
£ 130.20 130.2 GBP
DN200 (8 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 304.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 343.0mm
Flange thickness (C): 28.6mm
Pitch circle diameter (K): 298.5mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£ 1,163.05 1163.05 GBP
DN200 (8" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 342.9mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 298.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 342.9mm (O)
Flange thickness: 28.4mm (C)
Flange hub height: 44.4mm (Y)
Pitch Circle Diameter (PCD): 298.4mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 8 off 22.3mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 482.6mm (O)
Flange thickness: 91.9mm (C)
Flange hub height: 69.9mm (Y)
Pitch Circle Diameter (PCD): 393.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 44.4mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 482.6mm (O)
Flange thickness: 91.9mm (C)
Flange hub height: 69.9mm (Y)
Pitch Circle Diameter (PCD): 393.7mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 44.4mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Pitch circle diameter (K): 330.2mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 381.0mm (O)
Flange thickness: 41.1mm (C)
Flange hub height: 61.9mm (Y)
Pitch Circle Diameter (PCD): 330.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 381.0mm (O)
Flange thickness: 41.1mm (C)
Flange hub height: 61.9mm (Y)
Pitch Circle Diameter (PCD): 330.2mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 419.1mm (O)
Flange thickness: 55.6mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 349.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 31.7mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 419.1mm (O)
Flange thickness: 55.6mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 349.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 31.7mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
