Nominal Bore Stainless Steel Pipework – 304 & 316 Grades

Integraflow offers a complete range of nominal bore stainless steel pipework systems in 304 and 316/L grades, including pipe, fittings, flanges, valves, and supports in welded, seamless, and threaded configurations, designed for durability, corrosion resistance, and compatibility across industrial, hygienic, and mechanical applications.

List 600
Sort By: Name (A-Z)

Stainless

DN200 PN16 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 261.73 261.73 GBP
DN200 PN16 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 26mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
£ 407.82 407.82 GBP
DN200 PN25 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 PN25 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 360mm (D)
PCD: 310mm (K)
Bolt Holes: 12 off 26mm diameter (L)
Flange Thickness: 32mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 PN40 RF BLIND FLANGE SS 304
Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 1,692.95 1692.95 GBP
DN200 PN40 RF BLIND FLANGE SS 316
Flange OD (D): 375mm
Drilling (No. x Bolt Holes x L): 12 x M24 x 30mm
Pitch circle diameter (K): 320mm
Flange thickness (C4): 36mm
Material: 316
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 1,288.35 1288.35 GBP

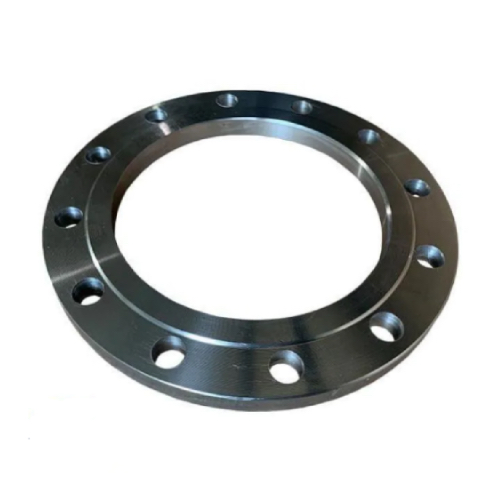

DN200 PN40 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 PN40 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 320mm (K)
Bolt Holes: 12 off 30mm diameter (L)
Flange Thickness: 36mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
Contact us for pricing 0.0 GBP

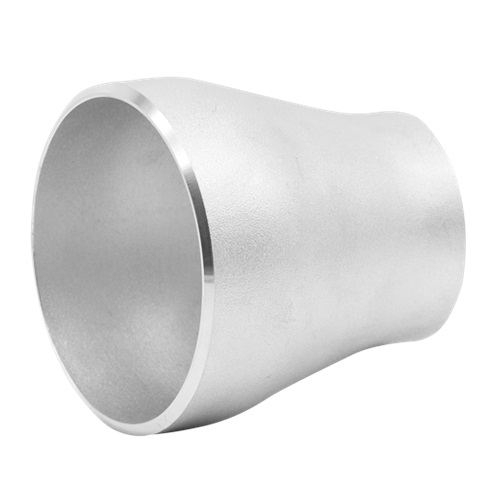

DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
£ 539.70 539.7 GBP
DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
£ 744.10 744.1 GBP
DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
£ 646.17 646.17 GBP

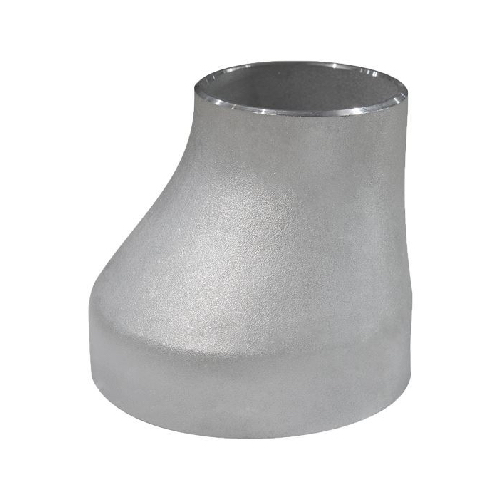

DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
Length: 152mm
£ 803.74 803.74 GBP
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
£ 564.83 564.83 GBP
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
£ 674.45 674.45 GBP
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
£ 537.32 537.32 GBP
DN200 X DN125 (8" X 5" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 141mm
Wall Thickness: 8.18 X 6.55mm
Length: 152mm
£ 806.96 806.96 GBP
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 SEAMLESS CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
Contact us for pricing 0.0 GBP
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
£ 314.09 314.09 GBP
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
£ 472.01 472.01 GBP
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
£ 443.38 443.38 GBP
DN200 X DN150 (8" X 6" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 219 X 168mm
Wall Thickness: 8.18 X 7.11mm
Length: 152mm
£ 626.15 626.15 GBP
DN200 x DN150 (8 x 6" NB) SCHEDULE 10S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN200 x DN150 (8 x 6" NB) SCHEDULE 10S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN200 x DN150 (8 x 6" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 304
Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 582.54 582.54 GBP
DN200 x DN150 (8 x 6" NB) SCHEDULE 10S A403 WELDED REDUCING TEE SS 316
Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 3.76 x 3.40mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 10S
Weight: 8.30kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 759.43 759.43 GBP
DN200 x DN150 (8 x 6" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 304
Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 40s
Weight: 27.0kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN200 x DN150 (8 x 6" NB) SCHEDULE 40S A403 SEAMLESS REDUCING TEE SS 316
Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 40s
Weight: 27.0kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN200 x DN150 (8 x 6" NB) SCHEDULE 40S A403 WELDED REDUCING TEE SS 304
Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 40s
Weight: 27.0kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 2,373.91 2373.91 GBP
DN200 x DN150 (8 x 6" NB) SCHEDULE 40S A403 WELDED REDUCING TEE SS 316
Outside Diameter (OD): 219 x 168mm
Wall Thickness (Run x Branch): 8.18 x 7.11mm
Centre to End (Run): 178mm
Centre to End (Branch): 168mm
Schedule: 40s
Weight: 27.0kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Reducing Tee, LR, Welding Tee, Weldable
£ 2,866.85 2866.85 GBP
DN25 (1" NB) SW 3000# UNION SS 316
Threaded: 3/4" SW (Socket Weld) Female
Suits an outside diameter (OD) of: 33.4mm
Material: Forged Stainless Steel
Grade: 316
Construction: Forged
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Full Sock, Equal Socket, Coupling, Stainless Steel
£ 183.54 183.54 GBP
DN25 (29mm OD) X 1.5mm WALL DIN11850 HYGIENIC PIPE 316 SS
Outside diameter: 29mm
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 1.03kg
Construction: Welded

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
Tube, Pipe, Length


Part of our Stainless Pipes and Tubes Range
£ 42.56 42.56 GBP
DN250 (10 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Hub height (X): 320.5mm
Length through hub (A): 273.0mm
Bolt circle diameter (K): 336.6mm
Overall height (Y): 117.3mm
Raised face thickness (RF): 1.5mm
Bore (B): 323.8mm
Number of bolt holes: 16
Bolt hole diameter: 28.4mm
Approx. weight: 44.3kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA150 RF BLIND FLANGE SS 304
Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 304
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA150 RF BLIND FLANGE SS 316
Outside diameter (O): 406.4mm
Flange thickness (C): 30.2mm
Pitch circle diameter (K): 361.9mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
£ 1,600.41 1600.41 GBP
DN250 (10" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA150 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 406.4mm (O)
Flange thickness: 30.2mm (C)
Flange hub height: 49.2mm (Y)
Pitch Circle Diameter (PCD): 361.9mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 12 off 25.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 150LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 584.2mm (O)
Flange thickness: 107.9mm (C)
Flange hub height: 82.6mm (Y)
Pitch Circle Diameter (PCD): 482.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 50.8mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 584.2mm (O)
Flange thickness: 107.9mm (C)
Flange hub height: 82.6mm (Y)
Pitch Circle Diameter (PCD): 482.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 50.8mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA300 RF BLIND FLANGE SS 304
Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 304
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 444.5mm
Flange thickness (C): 47.7mm
Pitch circle diameter (K): 387.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 323.8mm
Number of bolt holes: 16
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA300 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 444.5mm (O)
Flange thickness: 47.7mm (C)
Flange hub height: 66.5mm (Y)
Pitch Circle Diameter (PCD): 387.3mm (K)
Raised Face Height: 1.5mm (RF)
Bolt Holes: 16 off 28.4mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 300LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304
Flange outside diameter: 508.0mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 85.8mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 316
Flange outside diameter: 508.0mm (O)
Flange thickness: 63.5mm (C)
Flange hub height: 85.8mm (Y)
Pitch Circle Diameter (PCD): 431.8mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 16 off 35.0mm diameter
Bore Diameter: 276.3mm (B)
Material: Stainless Steel
Grade: 316
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN10 RF BLIND FLANGE SS 304
Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 914.69 914.69 GBP
DN250 (10" NB) PN10 RF BLIND FLANGE SS 316
Flange OD (D): 395mm
Drilling (No. x Bolt Holes x L): 12 x M20 x 22mm
Pitch circle diameter (K): 350mm
Flange thickness (C4): 26mm
Material: 316
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 1,327.62 1327.62 GBP
DN250 (10" NB) PN25 RF BLIND FLANGE SS 304
Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN25 RF BLIND FLANGE SS 316
Flange OD (D): 425mm
Drilling (No. x Bolt Hole x L): 12 x M27 x 30mm
Pitch circle diameter (K): 370mm
Flange thickness (C1): 35mm
Raised face diameter (D1): 312mm
Raised face height (F1): 4mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN250 (10" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 312mm (D1)
Height of Raised Face: 4mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
