Nominal Bore Stainless Steel Pipework – 304 & 316 Grades

Integraflow offers a complete range of nominal bore stainless steel pipework systems in 304 and 316/L grades, including pipe, fittings, flanges, valves, and supports in welded, seamless, and threaded configurations, designed for durability, corrosion resistance, and compatibility across industrial, hygienic, and mechanical applications.

List 600
Sort By: Name (A-Z)

Stainless

DN200 (8" NB) PN10 RF BLIND FLANGE SS 304
Flange OD (D): 340mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C4): 24~mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 606.69 606.69 GBP
DN200 (8" NB) PN10 RF BLIND FLANGE SS 316
Flange OD (D): 340mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C4): 24~mm
Material: 316
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 859.11 859.11 GBP
DN200 (8" NB) PN16 RF BLIND FLANGE SS 304
Flange OD (D): 340mm
Drilling (No. x Bolt Hole x L): 12 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C1): 26mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 304
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 600.95 600.95 GBP
DN200 (8" NB) PN16 RF BLIND FLANGE SS 316
Flange OD (D): 340mm
Drilling (No. x Bolt Hole x L): 12 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C1): 26mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 858.13 858.13 GBP
DN200 (8" NB) PN25 RF BLIND FLANGE SS 304
Flange OD (D): 360mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 310mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 304
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 957.60 957.6 GBP
DN200 (8" NB) PN25 RF BLIND FLANGE SS 316
Flange OD (D): 360mm
Drilling (No. x Bolt Hole x L): 12 x M24 x 26mm
Pitch circle diameter (K): 310mm
Flange thickness (C1): 32mm
Raised face diameter (D1): 258mm
Raised face height (F1): 3mm
Material: 316
Rating: PN25
Type: Blind flange (EN1092-1 Type 05)

Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN6 RF BLIND FLANGE SS 304
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 258mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 749.21 749.21 GBP
DN200 (8" NB) PN6 RF BLIND FLANGE SS 316
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C4)
Diameter of Raised Face (RF): 258mm (D1)
Height of Raised Face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind

Part of our Flanges and Flanged Connections Range
£ 764.26 764.26 GBP
DN200 (8" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) PN6 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 10S
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 10S
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 SEAMLESS LONG RADIUS 45 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm

Schedule: A403 Seamless
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 SEAMLESS LONG RADIUS 45 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm

Schedule: A403 Seamless
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 305.0mm
Schedule: A403 Seamless
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 305.0mm
Schedule: A403 Seamless
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 203.0mm
Schedule: A403 Seamless
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 203.0mm
Schedule: A403 Seamless
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 10S
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 558.46 558.46 GBP
DN200 (8" NB) SCHEDULE 10S A403 WELDED EQUAL TEE SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 10S
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 780.78 780.78 GBP
DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm

Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
£ 303.03 303.03 GBP
DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm

Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
£ 458.08 458.08 GBP
DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 408.66 408.66 GBP
DN200 (8" NB) SCHEDULE 10S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 654.29 654.29 GBP

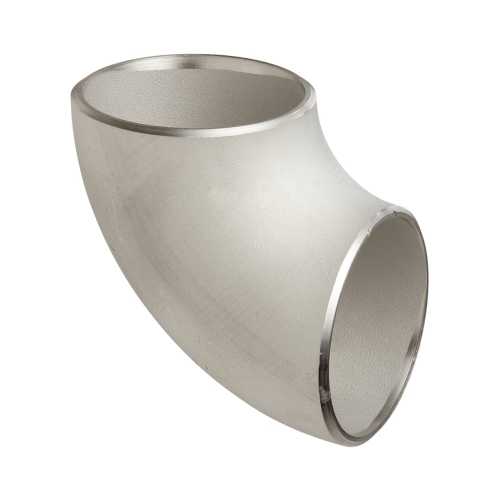

DN200 (8" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 303.03 303.03 GBP
DN200 (8" NB) SCHEDULE 10S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 3.76mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 458.08 458.08 GBP
DN200 (8" NB) SCHEDULE 10S ASA150 WELD NECK FLANGE SS 304
Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
£ 809.90 809.9 GBP
DN200 (8" NB) SCHEDULE 10S ASA150 WELD NECK FLANGE SS 316
Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
£ 1,288.63 1288.63 GBP
DN200 (8" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 304.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 316.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 10s STAINLESS WELDED PIPE 304
Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 3.76mm (Sch10)
Material: Stainless
Grade: 304
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 20.1kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
£ 506.52 506.52 GBP
DN200 (8" NB) SCHEDULE 10s STAINLESS WELDED PIPE 316
Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 3.76mm (Sch10)
Material: Stainless
Grade: 316
Standards: ASTM A312
Random Length: 5.8 to 7.5 meter Random
Weight Per Meter: 20.1kg
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
£ 624.05 624.05 GBP
DN200 (8" NB) SCHEDULE 10s WELDED ELBOW 90° SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 3.76mm (Sch10)
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: Long 1.5D
Angle: 90 Degree
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 40s
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 2,299.01 2299.01 GBP
DN200 (8" NB) SCHEDULE 40S A403 SEAMLESS EQUAL TEE SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 40s
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 2,128.63 2128.63 GBP
DN200 (8" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 305.0mm
Schedule: A403 Seamless
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 40S A403 SEAMLESS LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 305.0mm
Schedule: A403 Seamless
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 203.0mm
Schedule: A403 Seamless
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 40S A403 SEAMLESS SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 203.0mm
Schedule: A403 Seamless
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED EQUAL TEE SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 40s
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 2,299.01 2299.01 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED EQUAL TEE SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to End: 177.8mm
Schedule: 40s
Weight: 24.4kg

Material: Stainless Steel
Material Grade: ASTM A403

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
£ 2,128.63 2128.63 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm

Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
£ 1,065.82 1065.82 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 45 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm

Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 45°, LR, Bend, Weldable
£ 1,129.87 1129.87 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 942.55 942.55 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 305.0mm
Schedule: A403 Welded
Weight: 20.4kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable
£ 1,479.94 1479.94 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 1,065.82 1065.82 GBP
DN200 (8" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 316
Outside Diameter (OD): 219.1mm
Wall Thickness: 8.18mm
Centre to Face: 203.0mm
Schedule: A403 Welded
Weight: 13.8kg

Material: Stainless Steel
Material Grade: 316

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
£ 1,129.87 1129.87 GBP
DN200 (8" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 304
Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
£ 1,202.67 1202.67 GBP
DN200 (8" NB) SCHEDULE 40S ASA150 WELD NECK FLANGE SS 316
Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: 316 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
£ 1,060.64 1060.64 GBP
DN200 (8" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 304
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 304.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 316.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 40s STAINLESS WELDED PIPE 304
Outside Diameter (OD): 219.1mm
Wall Thickness (WT): 8.18mm (Sch40)
Material: Stainless
Grade: 304
Standards: ASTM A312
Standard Length: 6 meter Random
Weight Per Meter: 43.2kg
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.

Part of our Stainless Pipes and Tubes Range
£ 998.83 998.83 GBP
DN200 (8" NB) SCHEDULE 40s STAINLESS WELDED PIPE 316
Outside Diameter (OD): 219mm
Wall Thickness (WT): 8.18mm (Sch40)
Material: Stainless
Grade: 316
Standards: ASTM A312
Standard Length: 6 meters
Weight Per Meter: 43.2
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.



Part of our Stainless Pipes and Tubes Range
£ 1,877.12 1877.12 GBP
DN200 (8" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 304
Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 304
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 316
Outside diameter (O): 342.9mm
Flange thickness (C): 28.6mm
Hub length (X): 241.3mm
Neck height (A): 293.1mm
Pitch circle diameter (K): 298.4mm
Hub base diameter (Y): 108.0mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 269.7mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)

Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316
Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 316.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg

Part of our Flanges and Flanged Connections Range
Contact us for pricing 0.0 GBP
DN200 (8" NB) U-BOLT C.W NUTS SS 304 (A2)
Suits an outside diameter (OD) of: 219.1mm
Material: Stainless Steel 304 (A2)
Thread: M16
Comes with 2x Nuts
Contact us for pricing 0.0 GBP
DN200 (8" NB) U-BOLT C.W NUTS SS 316 (A4)
Suits an outside diameter (OD) of: 219.1mm
Material: Stainless Steel 316 (A4)
Thread: M16
Comes with 2x Nuts
Contact us for pricing 0.0 GBP
DN200 PN10 RF SLIP ON PLATE FLANGE SS 304
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£ 352.52 352.52 GBP
DN200 PN10 RF SLIP ON PLATE FLANGE SS 316
Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 340mm (D)
PCD: 295mm (K)
Bolt Holes: 12 off 20mm diameter (L)
Flange Thickness: 24mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO

Part of our Flanges and Flanged Connections Range
£ 517.51 517.51 GBP
